NSYSDCR4

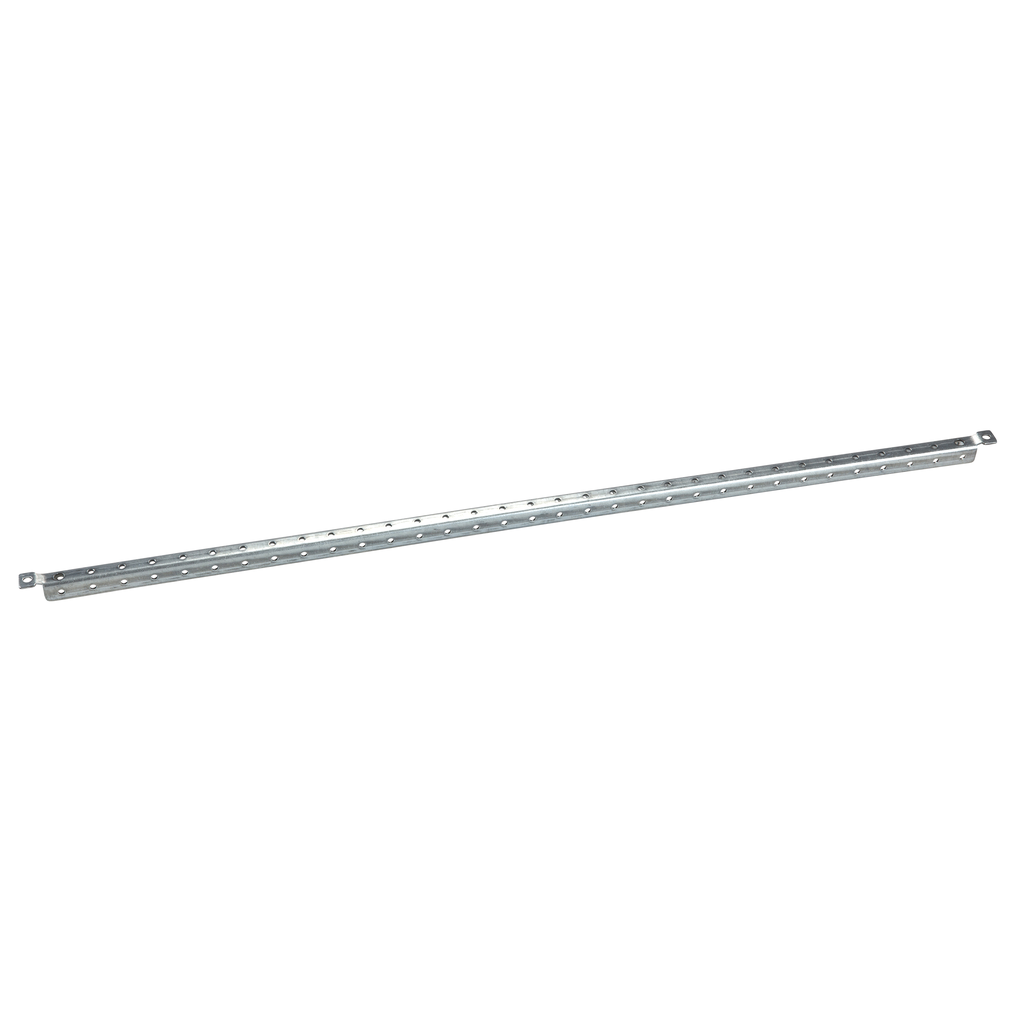

PanelSeT SF door cross rails - nominal width: 400 mm
Spacial SF / SM door cross rails. Door width 400 mm. Direct fixing on the door reinforcement frame. Equipped with 5.2 mm drillings on a 25 mm pitch. In zinc-plated steel. Set of 2.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Surface Finish | zinc coated |
|---|---|
| Depth | 18.6 mm |
| Width |
|
| Height | 18 mm |
| Material | steel |
| Adjustment | adjustable in height every 25 mm on door reinforcement frame |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110923EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Country of Origin | France |
| Range Compatibility | PanelSeT SF and SM enclosures |
| Product Or Component Type | door cross rail |
| Device Composition |
|
| Range | PanelSeT |
| Mounting Location | on door reinforcement frame |
| Quantity Per Set | set of 1 |
| Device Application | multi-purpose |
| Warranty | 18 months |
