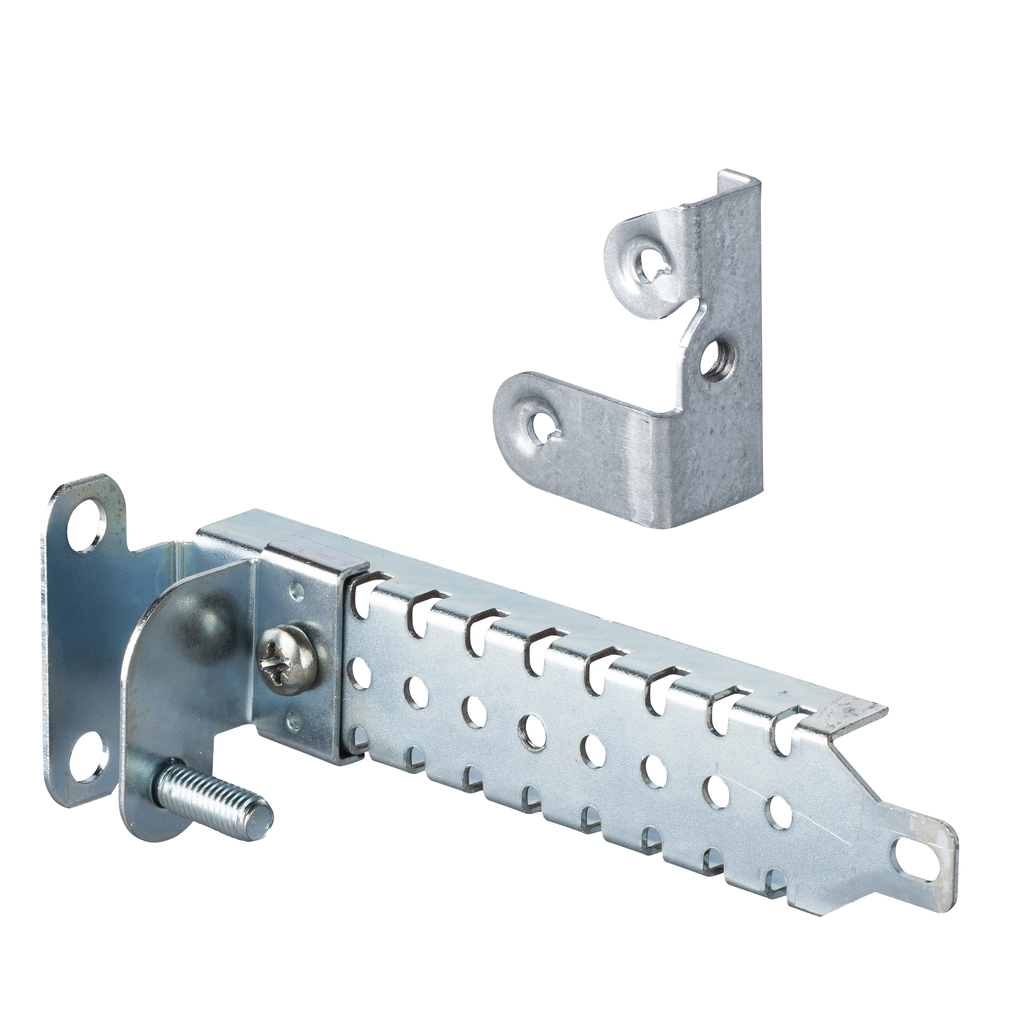

NSYSDCR200
Set of 4 step slides made of treated steel, D200mm
Set of step slides made of treated steel. D is200 mm. Compatible with Spacial CRN, S3D, S3X, S3CM. Mounting on sides of enclosure. Fixing by element, or on backstuds (welded). In depth of the plate in steps of 12.5 mm adjustment. Galvanised steel. Set of 4.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP100104EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Adjustment | in depth of the plate or other accessories in steps of 12.5 mm |
| Net Weight | 0.5 kg |
| Depth | nominal : 200 mm |
| Fixing Mode |
|
| Country of Origin | Spain |
| Weight | 0.5 kg |
| Enclosure Nominal Dimensions | - |
| Range Compatibility |
|
| Accessory / Separate Part Category | mounting accessory |
| Product Or Component Type | step slide |
| Device Composition |
|
| Mounting Location | sides of enclosure |
| Material | galvanised steel |
| Quantity Per Set | set of 1 |
| Device Application | multi-purpose |
| Warranty | 18 months |
Documents
- Instruction Sheet for Spacial WM step slides - NSYSDCR+adjustable+bracket+Spacial+WM+IS+HHH7311950011 (pdf)
- Spec Sheet
- Universal Enclosures - Quick Selection Guide (2024 EN) - UEMKCAT034EN_(web) (pdf)
- Spacial, Thalassa, and ClimaSys Universal Enclosures US Catalog 2022 - SE_Enclosure_US_2022_V0 (pdf)
- Universal Enclosures - Stainless Steel Enclosures for Aggressive Environments - 2021 Selection Guide - UEMKG001EN_(web) (pdf)
- Spacial, Thalassa, and ClimaSys Universal Enclosures Catalog - 9993CT0901R08_16+Body+(Web) (pdf)
