NSYSCMX8050

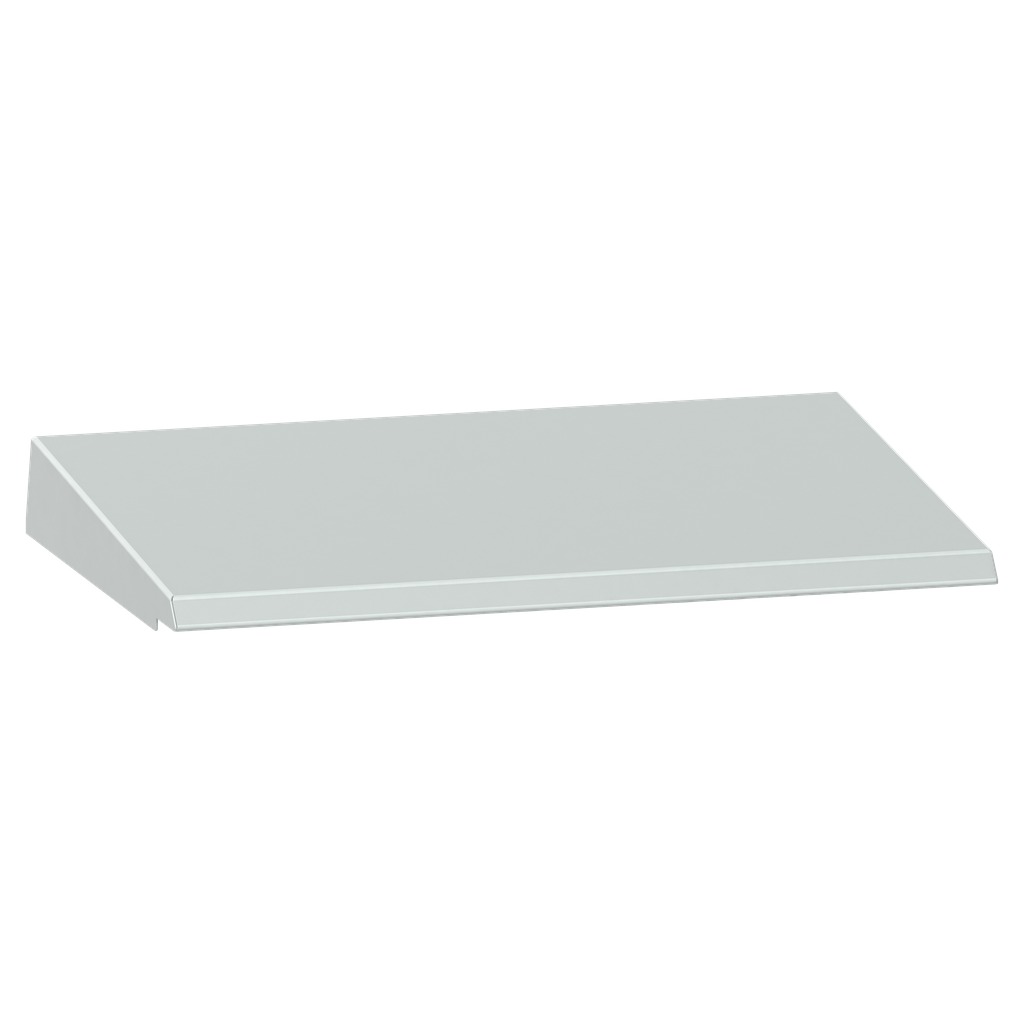

Stainless canopy 304L for Spacial SM, Scotch Brite® finish, for enclosures W800xD500 mm
Specifications
| Width | 806 mm |
|---|---|
| Height | 75 mm |
| Material | stainless steel 304L |
| Surface Finish | Scotch-Brite® brushed |
| Quantity Per Set | set of 1 |
| Color | Gray RAL 7035) |
| Thickness | 1.5 mm |
| Net Weight | 8.2 kg |
| Depth | 522 mm |
| Fixing Mode | by fixing element - same holes as the eyebolts |
| Country of Origin | Spain |
| Weight | 8.2 kg |
| Enclosure Nominal Dimensions | - |
| Range Compatibility | PanelSeT PanelSeT SMX |
| Accessory / Separate Part Category | enclosure accessory |
| Product Or Component Type | canopy |
| Device Composition |
|
| Device Application | multi-purpose |
| Range | PanelSeT |
| Mounting Location | on top of enclosure |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
