NSYSBM404012

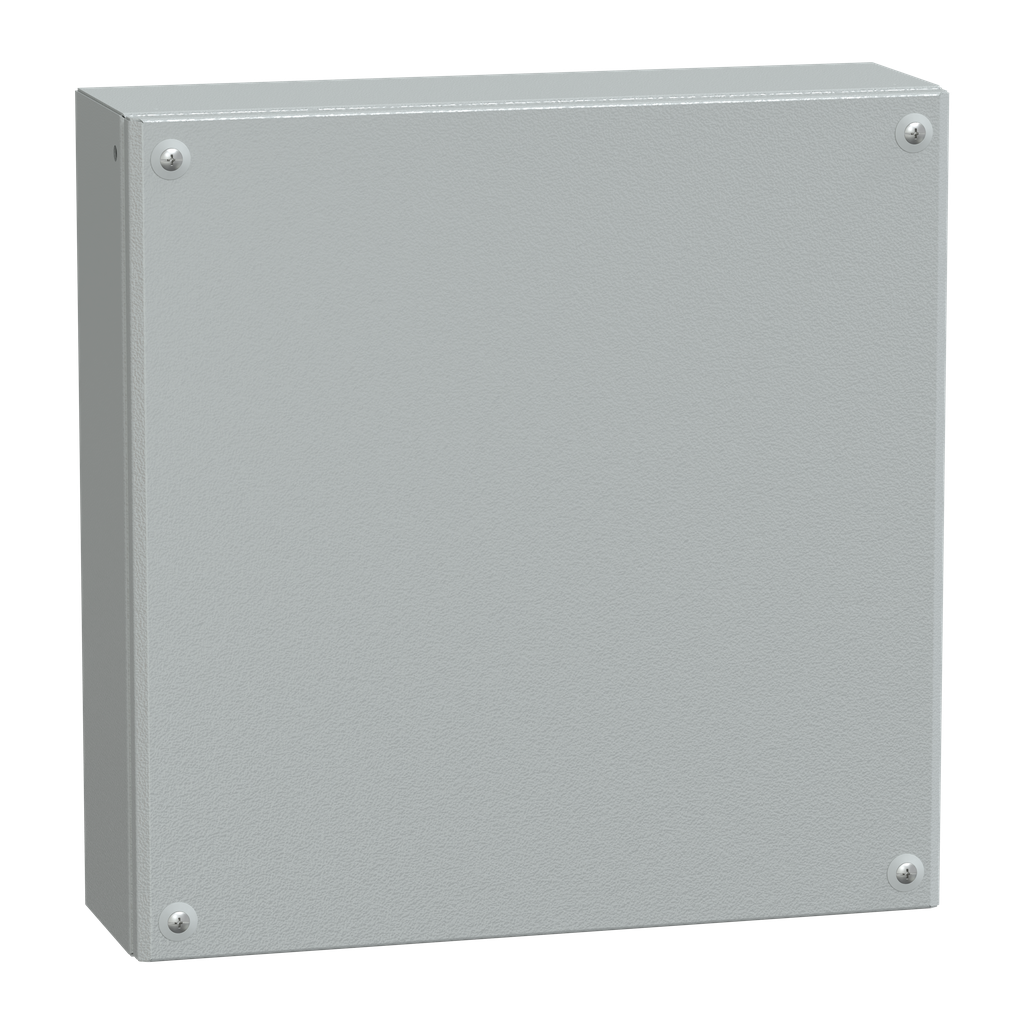

Metal industrial box plain door H400xW400xD120 IP66 IK10 RAL 7035
Industrial box for Spacial SBM. Multi purpose. 400 x 400 x 120 mm. Flat face box. Wall mounted on enclosure. Single piece body folded and welded. Cover fixing with half turn metal srew. Cover by 4 captive screw PZ2 outside sealed area. Made sheet of stee with polyester powder finish. Protection IP 66, IK10.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | India |
|---|---|
| Width | 400 mm |
| Height | 400 mm |
| Weight | 5.364 kg |
| Removable Parts | cover by captive screws |
| Product Or Component Type | industrial box |
| Enclosure Type | flat face box |
| Product Name | PanelSeT SBM |
| Lock Type | captive screw PZ2 outside sealed area |
| Device Composition |
|
| Enclosure Nominal Height | 400 mm |
| Type Of Front Cover | plain door |
| Range | PanelSeT |
| Body Type | single piece body folded and welded |
| Cover Fixing | half turn metal screw |
| Enclosure Mounting | wall mounted |
| Enclosure Nominal Depth | 120 mm |
| Device Application | multi-purpose |
| Device Short Name | SBM |
| Enclosure Nominal Width | 400 mm |
| Product Certifications |
|
| Ik Degree Of Protection | IK10 conforming to IEC 62262 |
| Ambient Air Temperature For Operation | -35-80 °C |
| Standards | IEC 62208 |
| Surface Finish | polyester powder |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Net Weight | 5.364 kg |
| Ambient Air Temperature For Storage | -35-60 °C |
| Material | sheet steel |
| Color | Gray RAL 7035) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP121023EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Warranty | 18 months |
