NSYS3X6625H

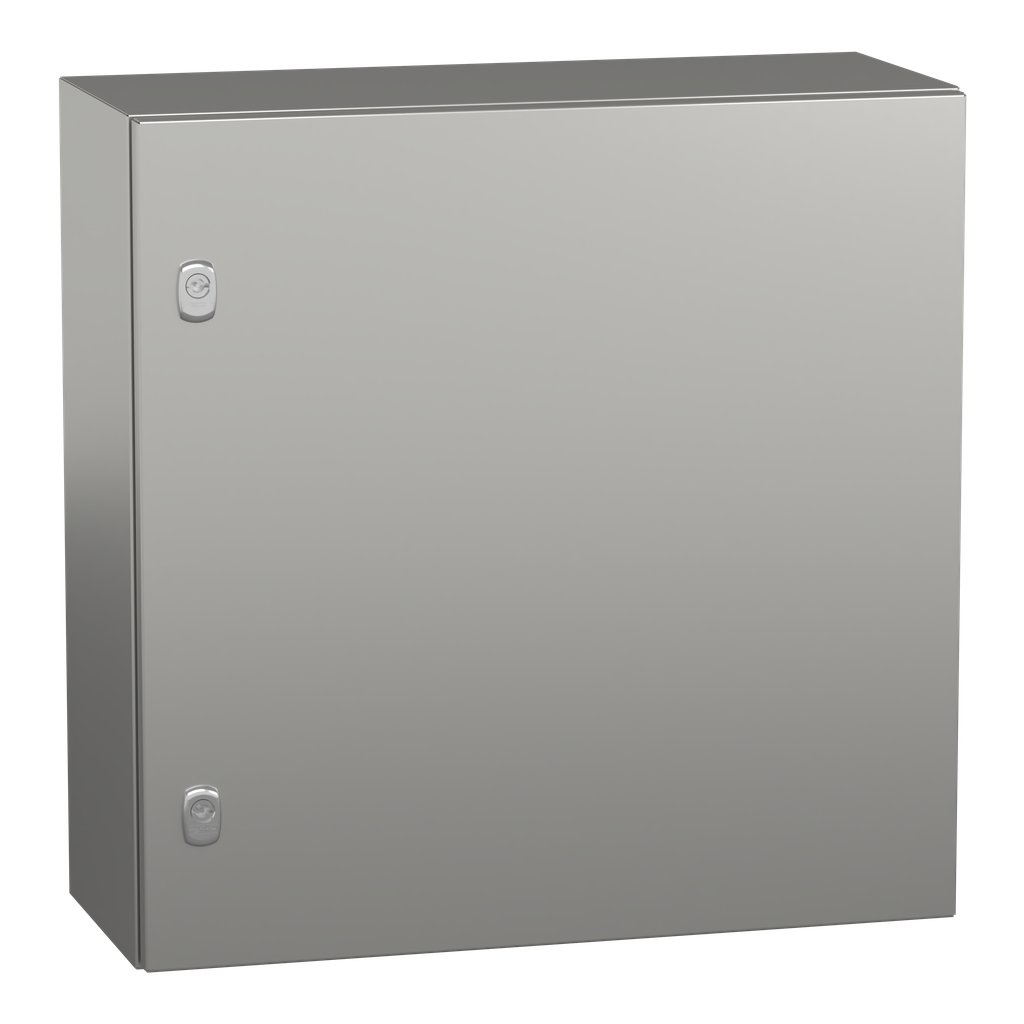

Wall mounted enclosure, PanelSeT S3X, stainless steel 316L, plain door, 600x600x250mm, IP66
SPACIAL S3X Scotch Brite compact enclosure. H is600xW is600xD is250 mm. For corrosive/specific hygiene. No mounting plate included. 3 mm double-bar lock. Wall mounting installation. Gutter-shaped front rail, single piece body. Stainless steel 316L body, Scotch-Brite brushed surface. Protection IP 66, IK10, Grey RAL 7035. Certifications is CAN/CSA 22, UL 508 type A.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Ik Degree Of Protection | IK10 IEC 62262 |
| Standards | IEC 62208 |
| Environmental Characteristic |
|
| Ip Degree Of Protection | IP66 IEC 60529 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2109018EN |
| Sustainable Offer Status | Green Premium product |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Accessibility For Operation | front |
| Removable Parts | door by hinges |
| Type Of Gland Plate | without gland plate |
| Body Type |
|
| Lock Type | 2 points lock, 3 mm double-bar |
| Net Weight | 14 kg |
| Door Opening Side | reversible 120 °) |
| Number Of Doors | front face 1 |
| Material |
|
| Surface Finish |
|
| Door Type | Solid |
| Mounting Plate Description | without mounting plate |
| Country of Origin | France |
| Width | 600 mm |
| Height | 600 mm |
| Weight | 14 kg |
| Installation Accessory Type | wall-mounting |
| Product Or Component Type | compact enclosure |
| Product Name | Spacial S3X |
| Device Composition |
|
| Enclosure Nominal Height | 600 mm |
| Range | Spacial |
| Enclosure Nominal Depth | 250 mm |
| Device Application | multi-purpose |
| Enclosure Nominal Width | 600 mm |
