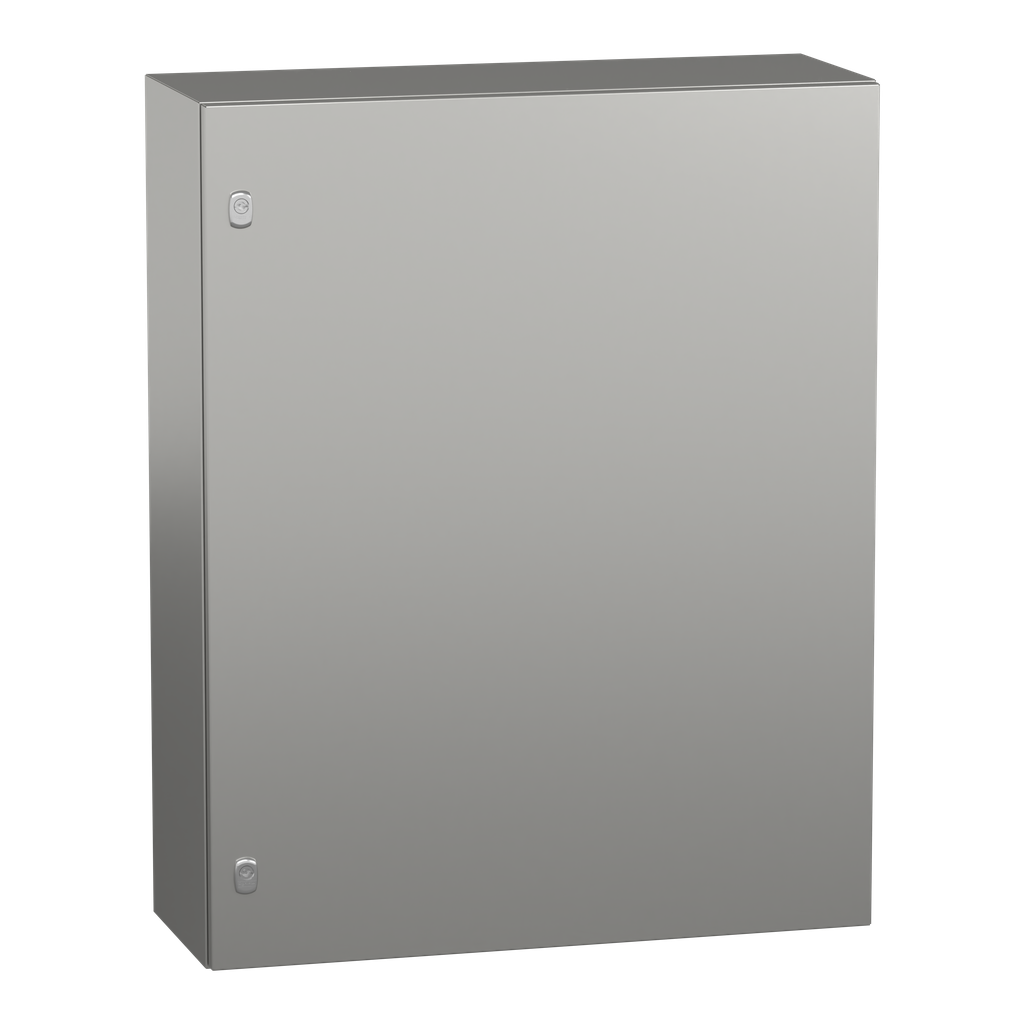

NSYS3X10830H - Wall mounted enclosure, PanelSeT S3X, stainless steel 316L, plain door, 1000x800x300mm, IP66

NSYS3X10830H

Add to Quote Catalogue

Product Certifications	CAN/CSA 22 UL 508 type A
Ik Degree Of Protection	IK10 IEC 62262
Standards	IEC 62208
Environmental Characteristic	specific hygiene corrosive
Ip Degree Of Protection	IP66 IEC 60529
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2109018EN
Sustainable Offer Status	Green Premium product
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	N/A
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Accessibility For Operation	front
Removable Parts	door by hinges
Type Of Gland Plate	without gland plate
Body Type	single piece body, cross-shaped structure gutter shaped front rail
Lock Type	2 points lock, 3 mm double-bar
Net Weight	37.6 kg
Door Opening Side	reversible 120 °)
Number Of Doors	front face 1
Material	lock zamak hinge stainless steel body and door stainless steel 316L
Surface Finish	body and door Scotch-Brite® brushed lock chromium plated
Door Type	Solid
Mounting Plate Description	without mounting plate
Country of Origin	France
Width	800 mm
Height	1000 mm
Weight	37.6 kg
Installation Accessory Type	wall-mounting
Product Or Component Type	compact enclosure
Product Name	Spacial S3X
Device Composition	1 body 1 reinforcement frame drilled door 1 door 2 lock door
Enclosure Nominal Height	1000 mm
Range	Spacial
Enclosure Nominal Depth	300 mm
Device Application	multi-purpose
Enclosure Nominal Width	800 mm
