NSYS3D5420T

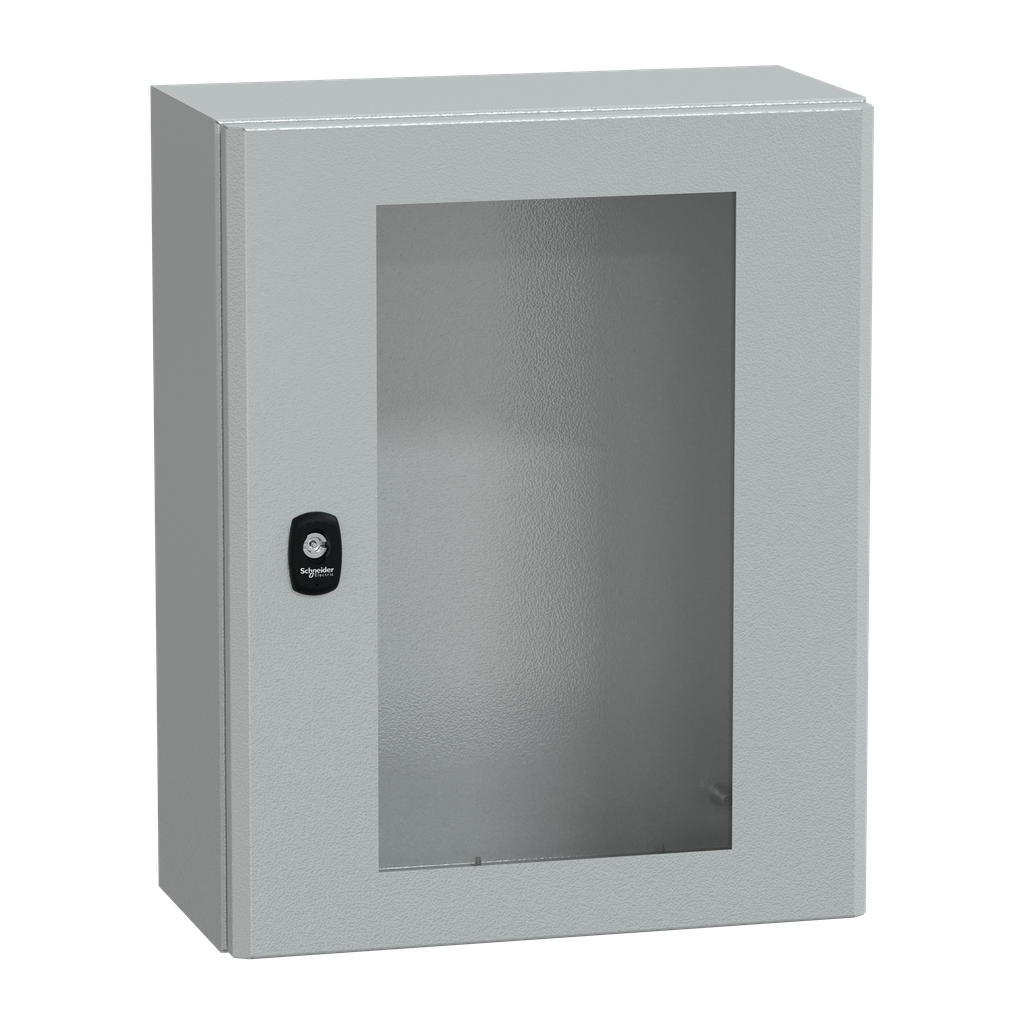

Wall mounted steel enclosure, PanelSeT S3D, transparent door, without mounting plate, 500x400x200mm, IP66, IK08
Spacial S3D wall mounted steel enclosure with glazed door. 499 x 400 x 200 mm. Single piece body, without mounting plate. Robust construction based on a new design. 3-point closure system with handle and 3 mm double bar lock insert. Steel made, epoxy-polyester powder finish. Gutter shaped front rail double sheet thickness. Protection IP 66, IK08, Grey RAL 7035. 1 cable gland plate included, standard. Extensive range of accessories. Packaging is reusable after assembly.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ik Degree Of Protection | IK08 IEC 62262 |
|---|---|
| Electromagnetic Compatibility | electromagnetic field immunity test |
| Nema Degree Of Protection | NEMA 4X/13 |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP100104EN |
| Sustainable Offer Status | Green Premium product |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Accessibility For Operation | front |
| Removable Parts |
|
| Standards | IEC 62208 |
| Variant Particularity |
|
| Lock Type | 3 mm double-bar lock |
| Net Weight | 9.34 kg |
| Door Opening Side | reversible 120 °) |
| Number Of Doors | front face 1 |
| Material |
|
| Surface Finish | epoxy-polyester powder |
| Color | Gray RAL 7035) |
| Country of Origin | France |
| Width | 400 mm |
| Height | 500 mm |
| Weight | 9.34 kg |
| Type Of Gland Plate | standard |
| Installation Accessory Type | wall-mounting |
| Product Or Component Type | compact enclosure |
| Product Name | PanelSeT S3D |
| Device Composition |
|
| Enclosure Nominal Height | 500 mm |
| Range | PanelSeT |
| Door Type | Glass |
| Enclosure Nominal Depth | 200 mm |
| Device Application | multi-purpose |
| Enclosure Nominal Width | 400 mm |
| Mounting Plate Description | without mounting plate |
