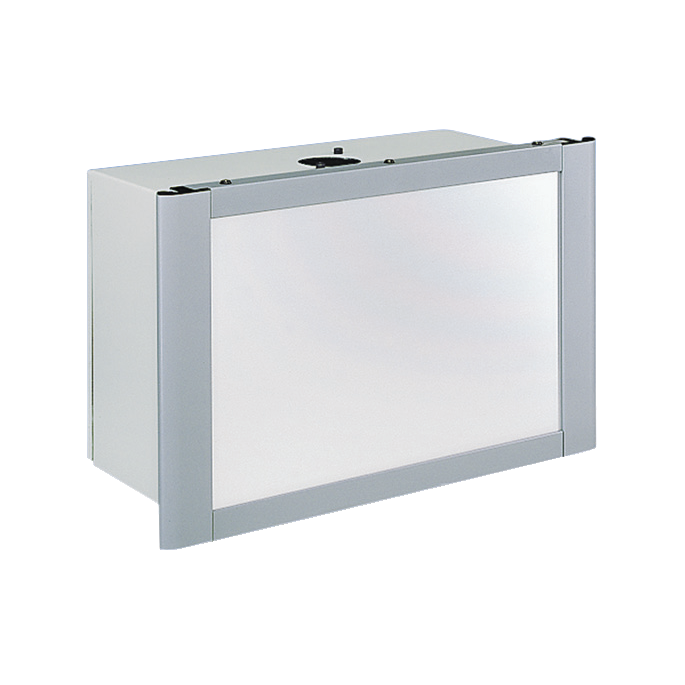

NSYS3CM303020
HMI encl. PanelSeT S3CM. H300xW300xD200IP54 IK10, RAL7035.Rear door.
Specifications
| Ik Degree Of Protection | IK10 IEC 62262 |
|---|---|
| Ip Degree Of Protection | IP54 IEC 60529 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP100104EN |
| Sustainable Offer Status | Green Premium product |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Accessibility For Operation | rear |
| Removable Parts |
|
| Type Of Gland Plate | without gland plate |
| Lock Type | 3 mm double-bar lock |
| Net Weight | 7.444 kg |
| Door Opening Side | reversible 120 °) |
| Number Of Doors | rear 1 |
| Body Type | single piece body |
| Material |
|
| Surface Finish | epoxy-polyester powder |
| Color |
|
| Door Type | Solid |
| Mounting Plate Description | without mounting plate |
| Country of Origin | Spain |
| Width | 300 mm |
| Height | 300 mm |
| Weight | 7.444 kg |
| Product Destination | interface |
| Installation Accessory Type | suspension system |
| Product Or Component Type | control enclosure |
| Product Name | PanelSeT S3CM |
| Device Composition |
|
| Enclosure Nominal Height | 300 mm |
| Range | PanelSeT |
| Enclosure Nominal Depth | 200 mm |
| Device Application | human-machine dialogue application |
| Enclosure Nominal Width | 300 mm |
