NSYRSWP18

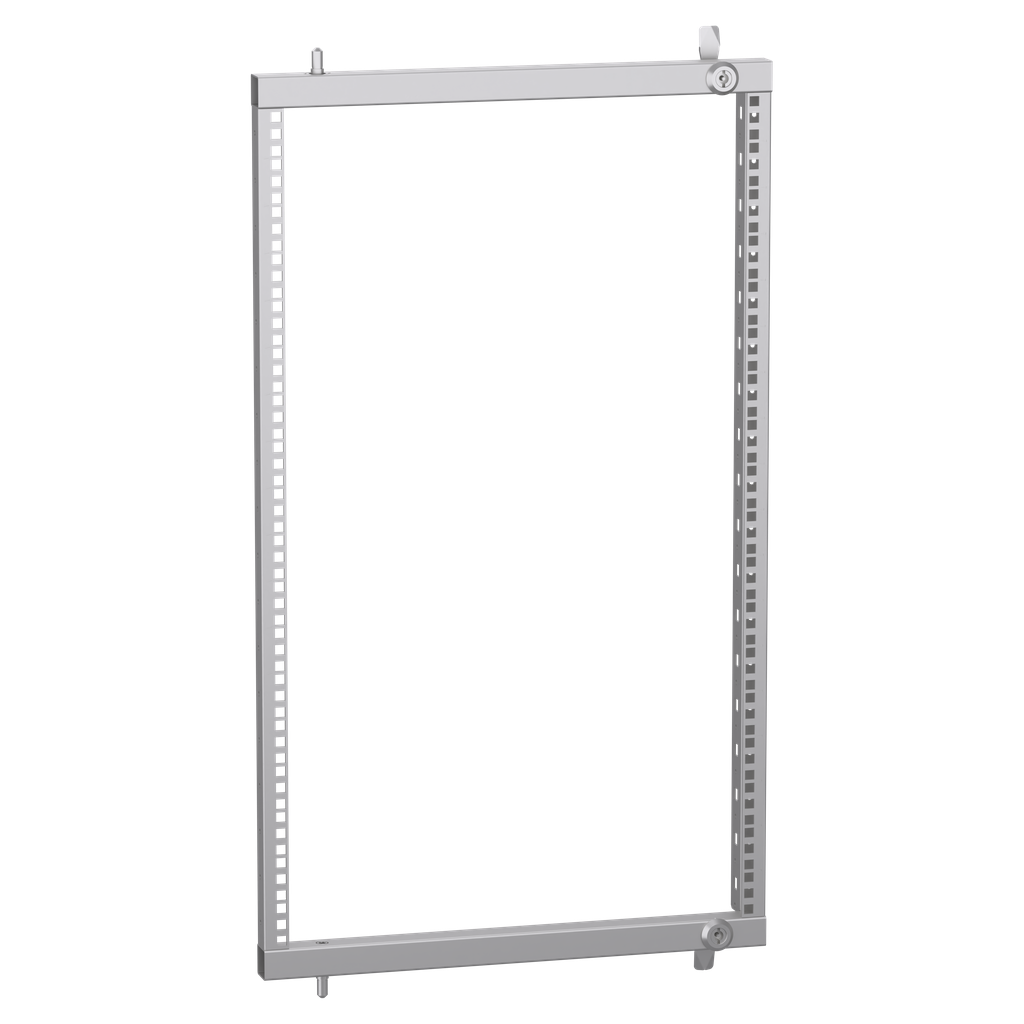

Spacial SF/SM partial 19" swing rack - 868 mm
Spacial SF/SM partial 19 inch swing rack. width 868 mm. Electronic application. Mounting in front of enclosure. 5 mm double bar lock. Adjustable in depth every 25 mm. 2gk per unit max permissible load. Steel, zinc coated surface. 18 units of 19 inch.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Adjustment | adjustable in depth every 25 mm |
|---|---|
| Rack Coverage | partial |
| Fixing Mode | by fixing element |
| Surface Finish | zinc coated |
| Opening Of The 19" Racks | reversible 120 ° |
| Enclosure/Cubicle Description | floor-standing enclosure |
| Lock Type | lock 5 mm double bar |
| Depth | 868 mm |
| Permanent Permissible Load | 2 kg per unit |
| Width |
|
| Height | 868 mm |
| Material | steel |
| Country of Origin | Spain |
| Rack Type | swing |
| Enclosure Nominal Dimensions | - H: 868 mm |
| Mounting Support | partial 19" swing rack support |
| Range Compatibility |
|
| Accessory / Separate Part Category | mounting accessory |
| Product Or Component Type | 19" rack |
| Device Composition | 1 rack |
| Range | PanelSeT |
| Mounting Location | front of enclosure |
| Number Of Units 19" | 18 |
| Device Application | electronic application |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110923EN |
| Sustainable Offer Status | Green Premium product |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Warranty | 18 months |
