NSYRSW640

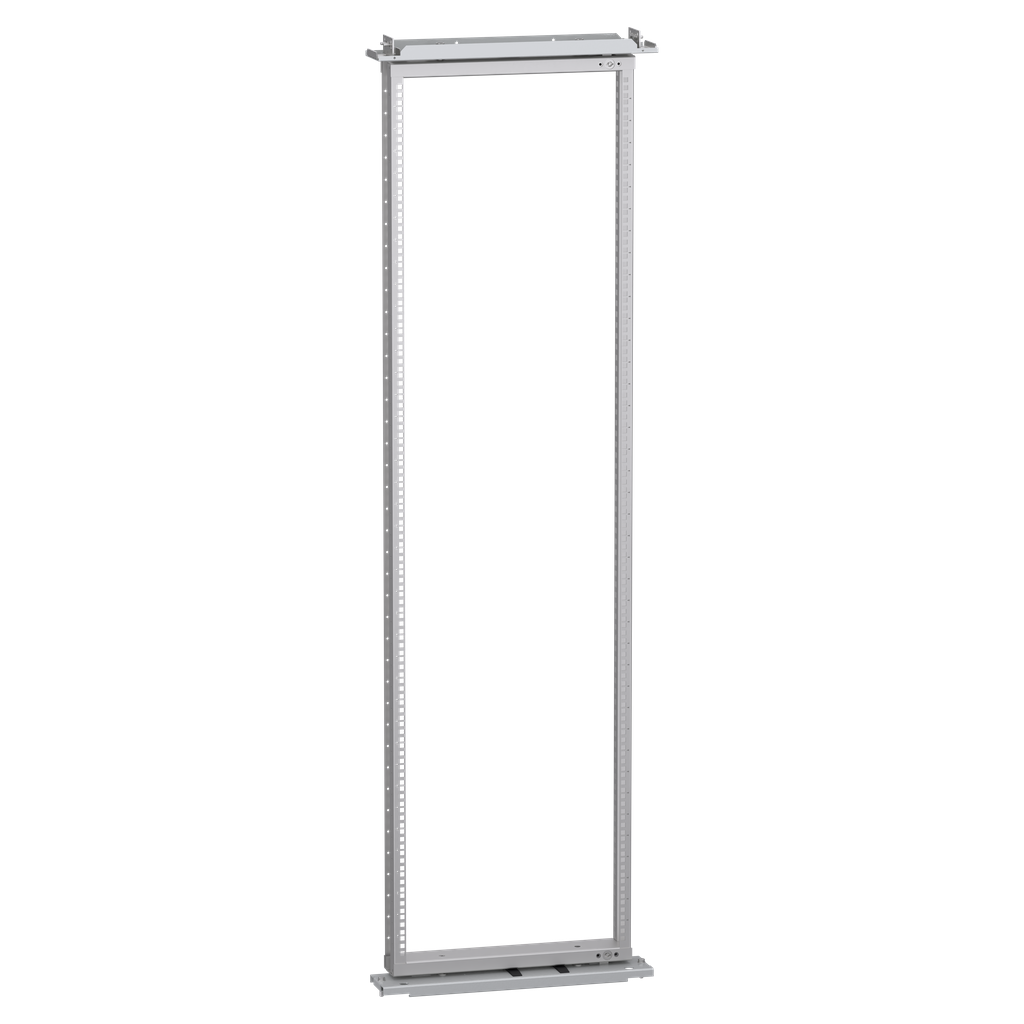

Spacial SF/SM 19" swing rack - 2000x600 mm - 40 modules
Spacial SF / SM swing rack 19 inches without panels. 2000 x 600 mm. 40 modules, adjustable in depth 25mm pitch. Opening system with handle, opening angle 120°. 5mm double bar lock. Steel made, zinc coated surface finish. Grey RAL 7035. Maximum load is 3 kg per unit.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | Spain |
|---|---|
| Rack Type | swing |
| Enclosure Nominal Dimensions | - |
| Mounting Support | 19" swing rack support |
| Range Compatibility |
|
| Accessory / Separate Part Category | mounting accessory |
| Product Or Component Type | 19" rack |
| Device Composition | 1 rack |
| Range | PanelSeT |
| Mounting Location | on structure of enclosure |
| Number Of Units 19" | 40 |
| Device Application | electronic application |
| Adjustment | adjustable in depth every 25 mm |
| Rack Coverage | complete |
| Fixing Mode | by fixing element |
| Surface Finish | zinc coated |
| Opening Of The 19" Racks | reversible 120 ° |
| Enclosure/Cubicle Description | floor-standing enclosure |
| Lock Type | lock 5 mm double bar |
| Permanent Permissible Load | 3 kg per unit |
| Width | 600 mm |
| Height | 2000 mm |
| Material | steel |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110923EN |
| Sustainable Offer Status | Green Premium product |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Warranty | 18 months |
