NSYRCKP12
Spacial SF/SM partial 19" fixed rack - 600 mm

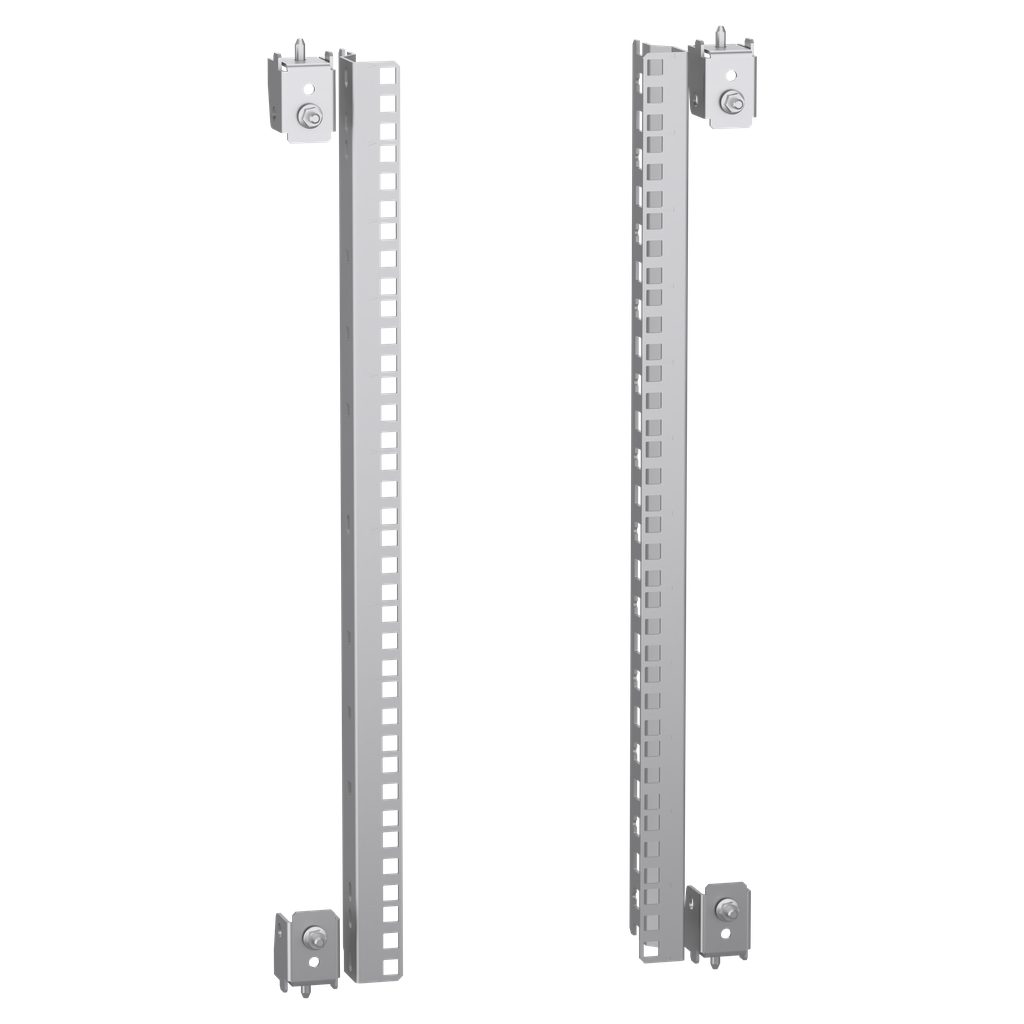

Spacial SF / SM partial fixed rack 19 inches. Enclosure width is 600 mm. 12 Units of 19 inch. Electronic application. Mounting accessory. Cross rails mounting support. Mounting on top front of enclosure. Adjustable in depth every 25 mm. Steel made, zinc coated surface finish. permissible load is 2 kg per unit. 4 uprights and fixing elements incl.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | France |
|---|---|
| Rack Type | fixed |
| Enclosure Nominal Dimensions | - H: 600 mm |
| Mounting Support | cross rails |
| Range Compatibility |
|
| Accessory / Separate Part Category | mounting accessory |
| Product Or Component Type | 19" rack |
| Device Composition |
|
| Range | PanelSeT |
| Mounting Location | top front of enclosure |
| Quantity Per Set | set of 1 |
| Number Of Units 19" | 12 |
| Device Application | electronic application |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110923EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Adjustment | adjustable in depth every 25 mm |
| Rack Coverage | partial |
| Fixing Mode | by fixing element |
| Surface Finish | zinc coated |
| Enclosure/Cubicle Description | floor-standing enclosure |
| Depth | 60 mm |
| Permanent Permissible Load | 2 kg per unit |
| Width |
|
| Height | 600 mm |
| Material | steel |
| Warranty | 18 months |
