NSYRCK47

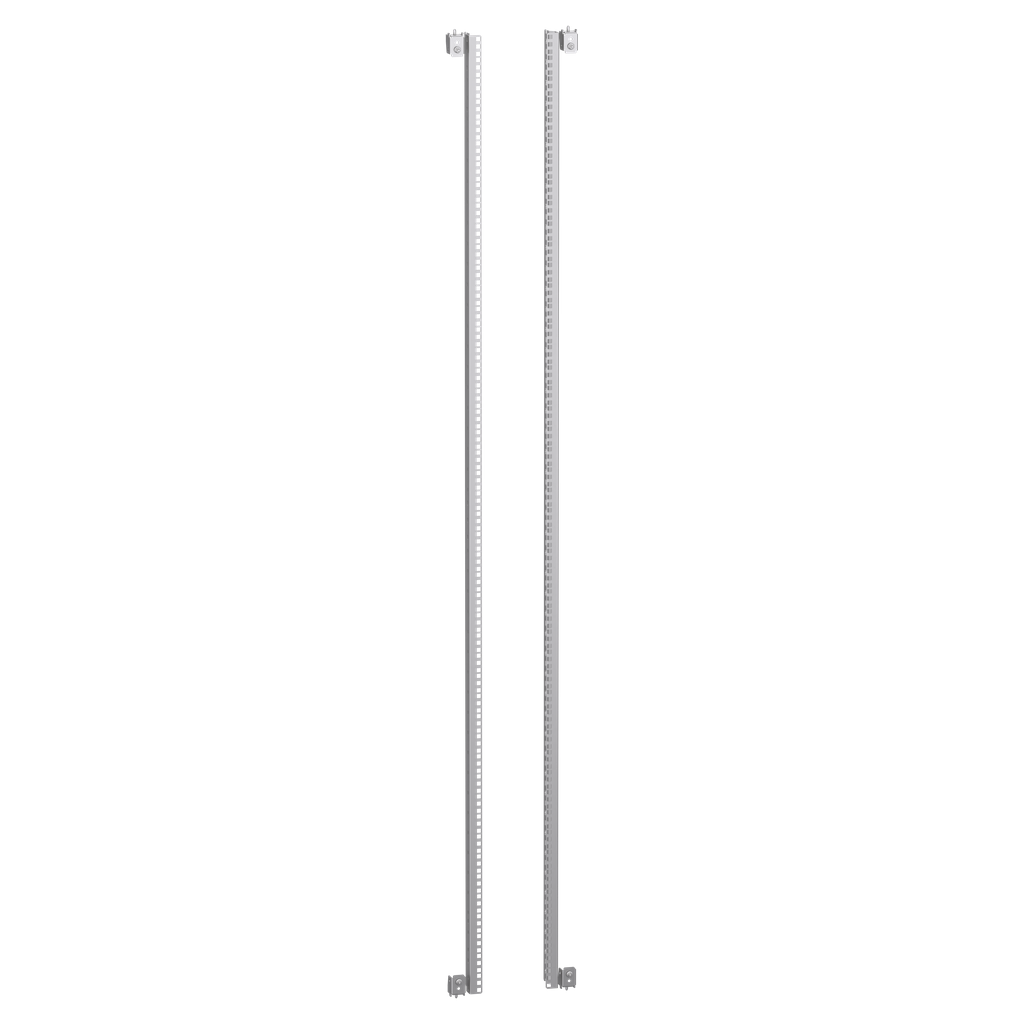

Spacial SF 19" fixed rack - 2200 mm
Spacial SF / SM fixed rack 19 inches. Enclosure width is 2200 mm. 47 Units of 19 inch. Electronic application. Mounting accessory. Mounting on structure of enclosure. Adjustable in depth every 25 mm. Steel made, zinc coated surface finish. permissible load is 400 kg. 3 uprights and fixing elements incl.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110923EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Country of Origin | Spain |
| Rack Type | fixed |
| Enclosure Nominal Dimensions | - H: 2200 mm |
| Mounting Support | 19" fixed support bracket |
| Range Compatibility |
|
| Accessory / Separate Part Category | mounting accessory |
| Product Or Component Type | 19" rack |
| Device Composition |
|
| Range | PanelSeT |
| Mounting Location | on structure of enclosure |
| Quantity Per Set | set of 1 |
| Number Of Units 19" | 47 |
| Device Application | electronic application |
| Adjustment | adjustable in depth every 25 mm |
| Rack Coverage | complete |
| Fixing Mode | by fixing element |
| Surface Finish | zinc coated |
| Enclosure/Cubicle Description | floor-standing enclosure |
| Depth | 45 mm |
| Permanent Permissible Load | 400 kg |
| Width |
|
| Height | 2200 mm |
| Material | steel |
| Warranty | 18 months |
