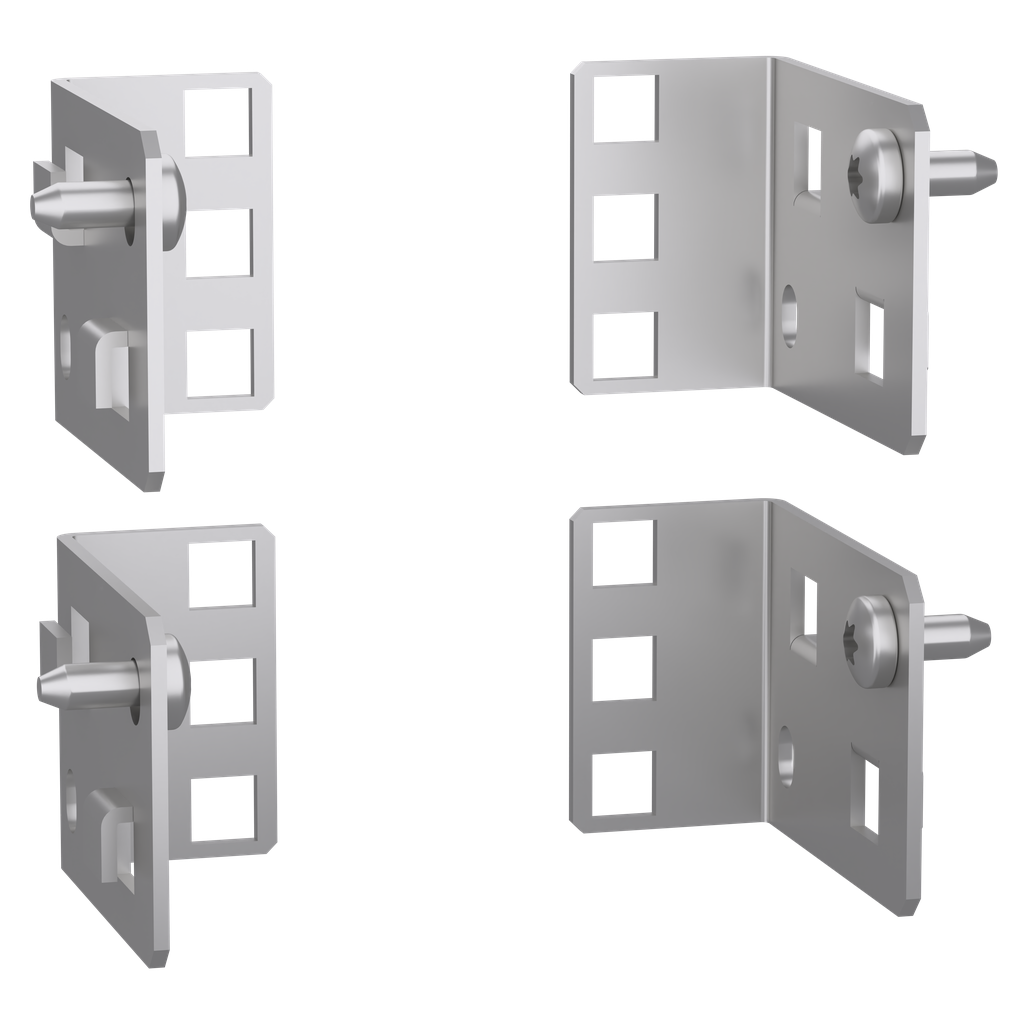

NSYRC1U
set of 4 PanelSeT SF/SM brackets to install equipment 1U or 3U high
Set of 4 Spacial SF/SM brackets. H is 44.45 x D is 73 mm. To install equipment 1U or 3U high. Electronic application. Adjustable height with a pitch of 25 mm. Mounting support direct to the structure SF or Spacial SM with vertical adaptor section. Steel made, zinc coated surface finish. 1 Unit (19 inch).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | Spain |
|---|---|
| Enclosure Nominal Dimensions | - |
| Range Compatibility |
|
| Accessory / Separate Part Category | enclosure accessory |
| Product Or Component Type | support |
| Device Composition |
|
| Range | PanelSeT |
| Mounting Support |
|
| Quantity Per Set | set of 1 |
| Device Application |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110923EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Adjustment | adjustable in height with a pitch of 25 mm |
| Surface Finish | zinc coated |
| Fixing Mode |
|
| Depth | 73 mm |
| Height | 44.45 mm |
| Material | steel |
| Number Of Units 19" | 1 |
| Warranty | 18 months |
