NSYPLM54TVG

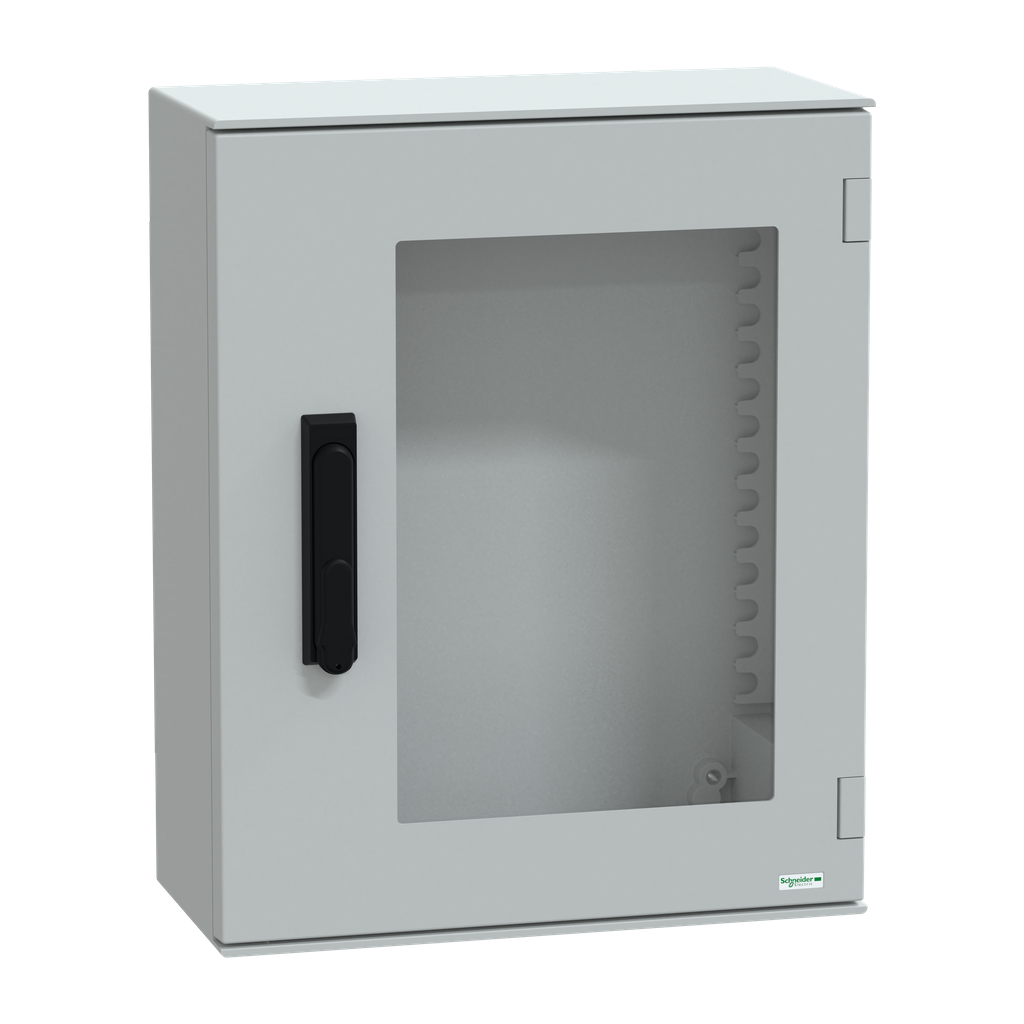

Wall mounted polyester enclosure, Thalassa PLM, glazed door, with handle, 530x430x200mm, IP66, IK08, RAL 7035
Thalassa PLM wall-mounting polyester enclosure monobloc w/glazed door. 530 x 430 x 200 mm. Built-in canopy, one piece moulded with notches in the rear. Without mounting plate. 2 locks (3 points lock, handle with 1242E key lock). Accessible front. Polyester reinforced with fibreglass, tempered glass door. Grey RAL 7035. IP66, IK08, NEMA (13,4X) 960°C fire resistance.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Accessibility For Operation | front |
|---|---|
| Mounting Plate Description | without mounting plate |
| Removable Parts | door by hinges |
| Number Of Locks | 1 |
| Electrical Insulation Class | class II |
| Material |
|
| Color | Gray RAL 7035) |
| Country of Origin | Spain |
| Width | 430 mm |
| Height | 530 mm |
| Product Or Component Type | compact enclosure |
| Product Name | Thalassa PLM |
| Device Composition |
|
| Enclosure Nominal Height | 530 mm |
| Lock Type | 3 points lock, handle with 1242E key lock |
| Range | Thalassa |
| Enclosure Mounting | wall mounted |
| Door Type | transparent |
| Enclosure Nominal Depth | 200 mm |
| Device Application | multi-purpose |
| Device Short Name | PLM |
| Enclosure Nominal Width | 430 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110118EN |
| Sustainable Offer Status | Green Premium product |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ik Degree Of Protection | IK08 IEC 62262 |
| Ambient Air Temperature For Operation | -40-80 °C |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Fire Resistance | 960 °C IEC 62208 |
