NSYPLM32TG

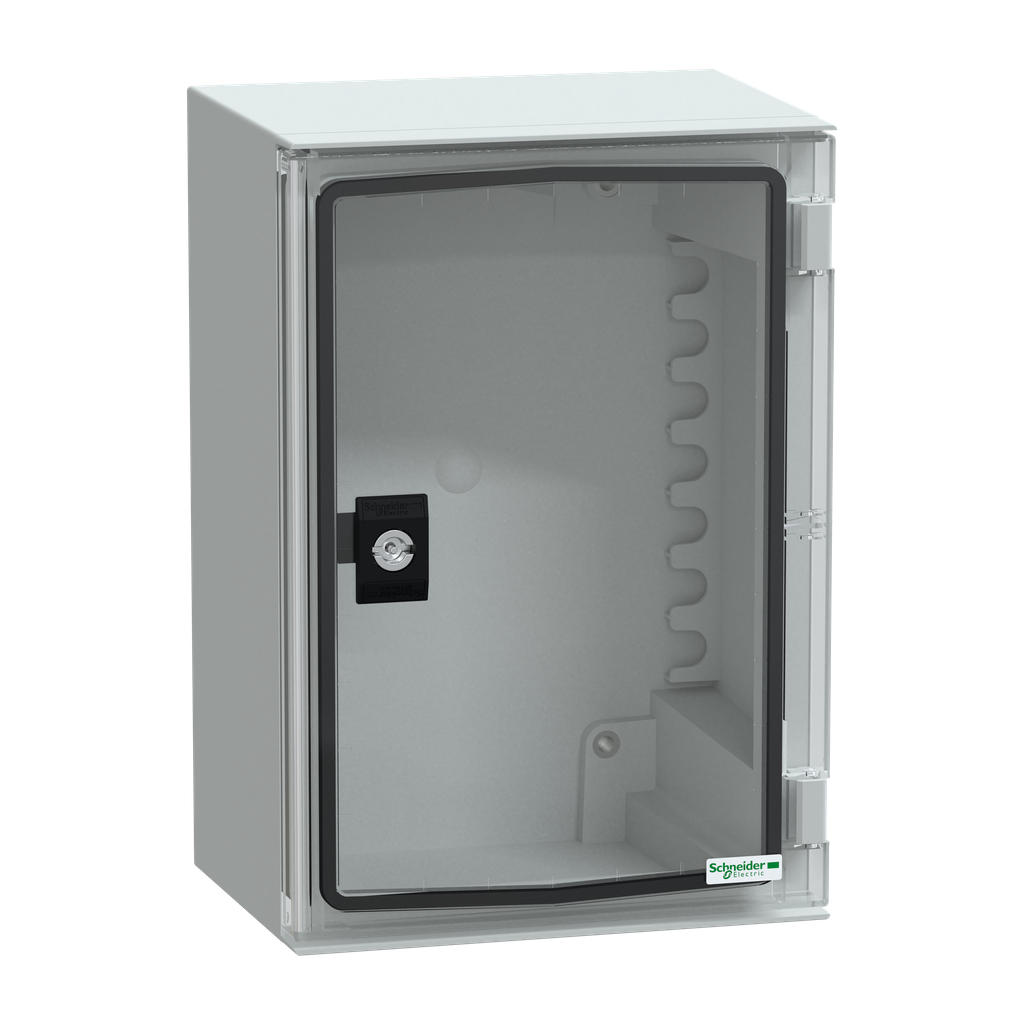

Wall mounted ABS + PC enclosure, Thalassa PLM, glazed door, 310x215x160mm, IP66, IK10, RAL 7035
Thalassa PLM wall-mounting ABS/PC enclosure monobloc w/transparent door. 310 x 215 x 160 mm. Built-in canopy, one piece moulded with notches in the rear. Without mounting plate. 1 lock (3 mm double-bar lock). Accessible front. ABS + PC material, Polycarbonate door. Grey RAL 7035. IP66, IK10, NEMA (13,4X) 960°C fire resistance.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | France |
|---|---|
| Width | 215 mm |
| Height | 310 mm |
| Product Or Component Type | compact enclosure |
| Product Name | Thalassa PLM |
| Device Composition |
|
| Enclosure Nominal Height | 310 mm |
| Lock Type | 3 mm double-bar lock |
| Range | Thalassa |
| Enclosure Mounting | wall mounted |
| Door Type | transparent |
| Enclosure Nominal Depth | 160 mm |
| Device Application | multi-purpose |
| Device Short Name | PLM |
| Enclosure Nominal Width | 215 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110118EN |
| Sustainable Offer Status | Green Premium product |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Accessibility For Operation | front |
| Mounting Plate Description | without mounting plate |
| Removable Parts | door by hinges |
| Number Of Locks | 1 |
| Standards |
|
| Electrical Insulation Class | class II |
| Material |
|
| Color | Gray RAL 7035) |
| Ik Degree Of Protection | IK10 IEC 62262 |
| Ambient Air Temperature For Operation | -40-80 °C |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Fire Resistance | 960 °C IEC 62208 |
