NSYPLM32BG

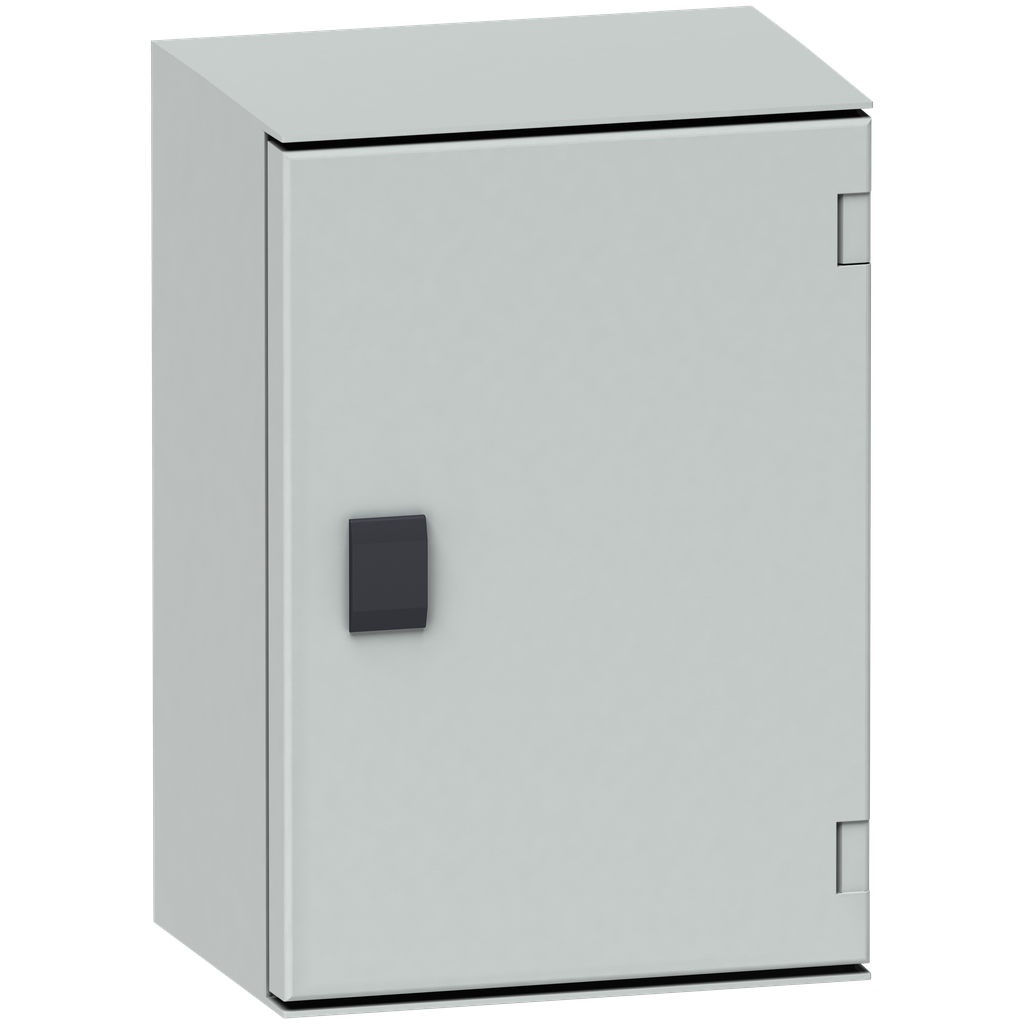

Wall mounted ABS + PC enclosure, Thalassa PLM, plain door, with bakelite plate, 310x215x160mm, IP66, IK10, RAL 7035
Specifications
| Country of Origin | Spain |
|---|---|
| Width | 215 mm |
| Height | 310 mm |
| Product Or Component Type | compact enclosure |
| Product Name | Thalassa PLM |
| Device Composition |
|
| Enclosure Nominal Height | 310 mm |
| Lock Type | 3 mm double-bar lock |
| Range | Thalassa |
| Enclosure Mounting | wall mounted |
| Door Type | Solid |
| Enclosure Nominal Depth | 160 mm |
| Device Application | multi-purpose |
| Device Short Name | PLM |
| Enclosure Nominal Width | 215 mm |
| Product Certifications | UL |
| Accessibility For Operation | front |
| Mounting Plate Description | plain bakelite |
| Removable Parts |
|
| Number Of Locks | 1 |
| Standards |
|
| Electrical Insulation Class | class II |
| Material | ABS + PC |
| Color | Gray RAL 7035) |
| Ik Degree Of Protection | IK10 IEC 62262 |
| Ambient Air Temperature For Operation | -40-80 °C |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Fire Resistance | 960 °C IEC 62208 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110118EN |
| Sustainable Offer Status | Green Premium product |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
