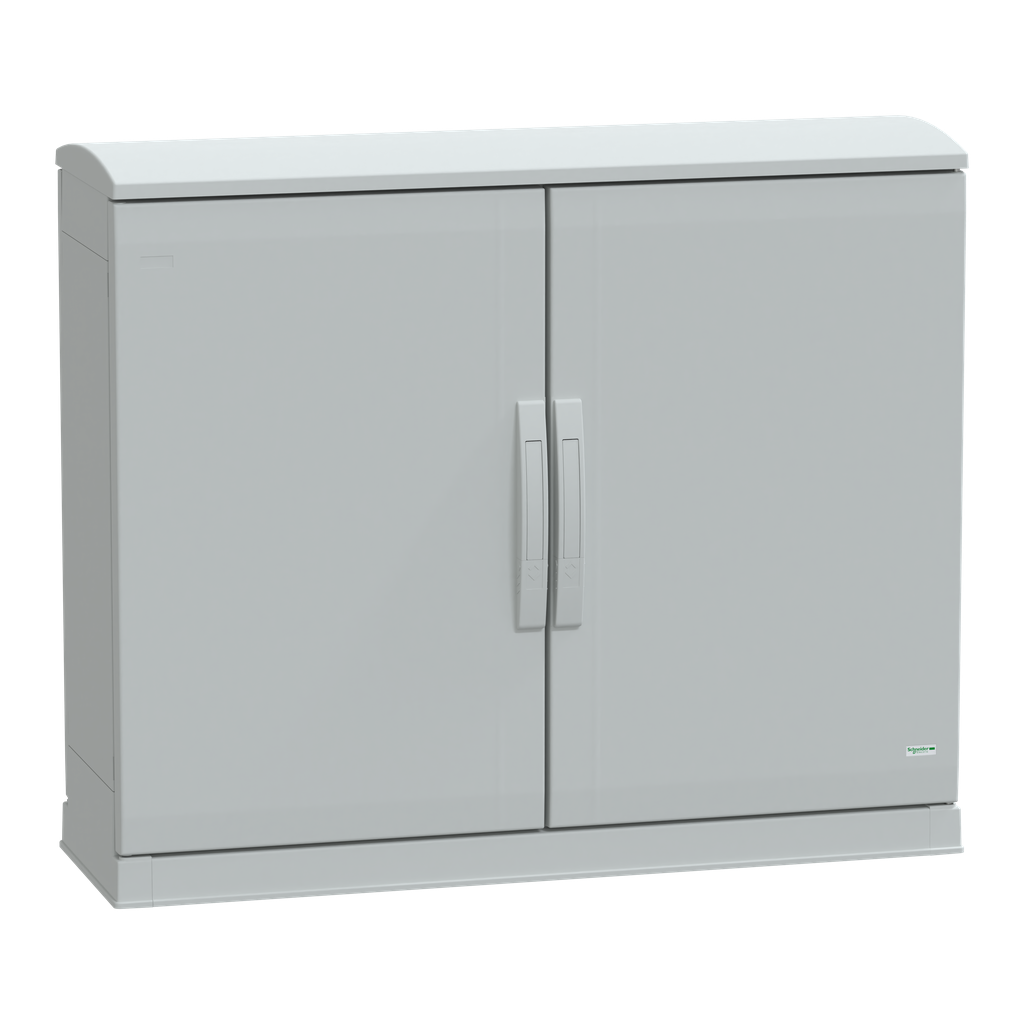

NSYPLAZT7103G - Floor standing polyester enclosure, Thalassa PLA, open bottom, ventilated canopy, 750x1000x320mm, IP44, IK10

NSYPLAZT7103G

Add to Quote Catalogue

Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP110505EN
Sustainable Offer Status	Green Premium product
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	N/A
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Country of Origin	Spain
Width	1000 mm
Height	750 mm
Product Or Component Type	suitable enclosure
Product Name	Thalassa PLA
Device Composition	1 top part 1 bottom part 2 side part 2 door 2 rear panel 1 canopy 1 plinth
Enclosure Nominal Height	750 mm
Range	Thalassa
Enclosure Mounting	floor-standing
Enclosure Nominal Depth	320 mm
Device Application	multi-purpose
Device Short Name	PLAZT
Enclosure Nominal Width	1000 mm
Product Certifications	Veritas
Accessibility For Operation	bottom top front rear
Removable Parts	door by hinges rear panel by fixing element canopy by fixing element
Standards	IEC 62208
Door Type	Solid front
Lock Type	2 points handle lock, 5 mm double-bar
Door Opening Side	right and left 180 °)
Number Of Doors	2
Electrical Insulation Class	class II
Body Type	open top and bottom part assembled with side parts
Material	polyester reinforced with fibreglass
Color	Gray RAL 7035)
Ik Degree Of Protection	IK10 IEC 62262 plain door)
Ambient Air Temperature For Storage	-35-90 °C
Ip Degree Of Protection	IP44 IEC 60529 with plinth type open bottom part and ventilated canopy)
Fire Resistance	960 °C IEC 62208
