NSYPLAZ12123G

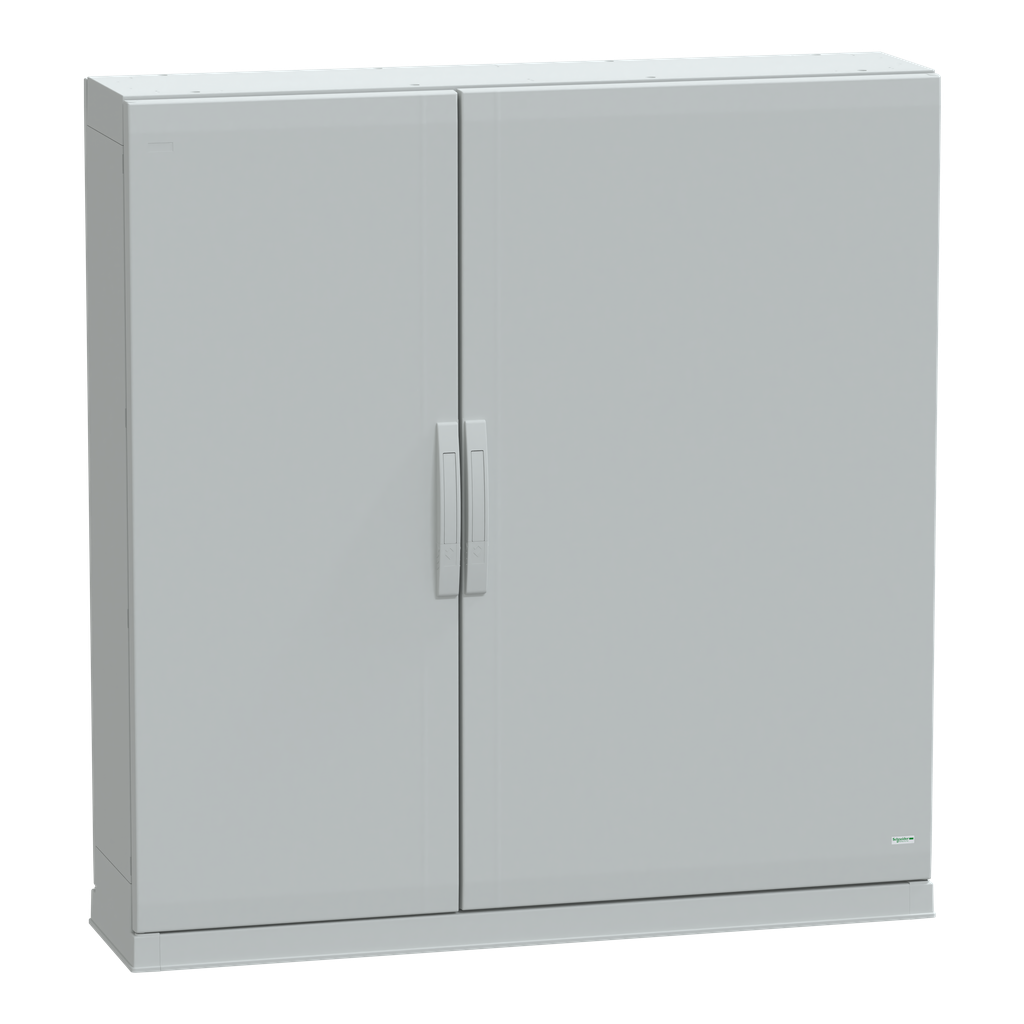

Floor standing polyester enclosure, Thalassa PLA, plain door, open bottom, 1250x1250x320mm, IP54, IK10
Thalassa PLAZ floor standing polyester enclosure open bottom with plinth. 1250x 1250x 320 mm. Sealed top part, assembled with side parts. 4 points lock, 5 mm double-bar insert. 2 doors. Righ and left 120° opening. Accesible front, rear and bottom. Polyester reinforced with fibreglass. Grey RAL 7035. IP54, IK10, NEMA (1,2,12,13). 960°C fire resistance.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | Spain |
|---|---|
| Width | 1250 mm |
| Height | 1250 mm |
| Product Or Component Type | suitable enclosure |
| Product Name | Thalassa PLA |
| Device Composition |
|
| Enclosure Nominal Height | 1250 mm |
| Range | Thalassa |
| Enclosure Mounting | floor-standing |
| Enclosure Nominal Depth | 320 mm |
| Device Application | multi-purpose |
| Device Short Name | PLAZ |
| Enclosure Nominal Width | 1250 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110505EN |
| Sustainable Offer Status | Green Premium product |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications | Veritas |
| Accessibility For Operation |
|
| Removable Parts |
|
| Standards | IEC 62208 |
| Door Type | Solid front |
| Lock Type | 4 points lock, handle with 5 mm double bar insert |
| Door Opening Side | right and left 120 °) |
| Number Of Doors | 2 |
| Electrical Insulation Class | class II |
| Body Type | sealed top and open bottom part assembled with side parts |
| Material | polyester reinforced with fibreglass |
| Color | Gray RAL 7035) |
| Ik Degree Of Protection | IK10 IEC 62262 plain door) |
| Ambient Air Temperature For Storage | -35-90 °C |
| Ip Degree Of Protection | IP54 IEC 60529 plinth type open bottom) |
| Fire Resistance | 960 °C IEC 62208 |
