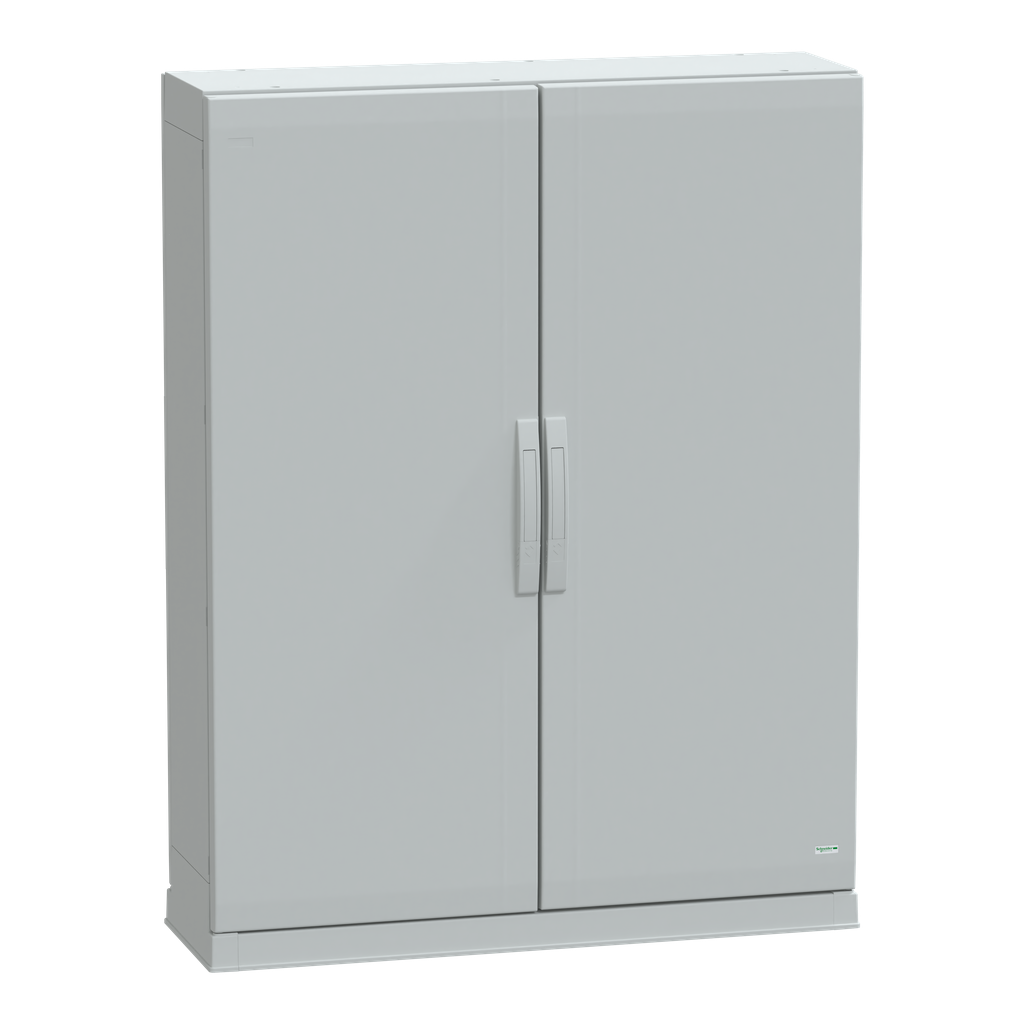

NSYPLAZ12103G
Floor standing polyester enclosure, Thalassa PLA, plain door, open bottom, 1250x1000x320mm, IP54, IK10
Specifications
| Product Certifications | Veritas |
|---|---|
| Accessibility For Operation |
|
| Removable Parts |
|
| Standards | IEC 62208 |
| Door Type | Solid front |
| Lock Type | 4 points lock, handle with 5 mm double bar insert |
| Door Opening Side | right and left 120 °) |
| Number Of Doors | 2 |
| Electrical Insulation Class | class II |
| Body Type | sealed top and open bottom part assembled with side parts |
| Material | polyester reinforced with fibreglass |
| Color | Gray RAL 7035) |
| Country of Origin | Spain |
| Width | 1000 mm |
| Height | 1250 mm |
| Product Or Component Type | suitable enclosure |
| Product Name | Thalassa PLA |
| Device Composition |
|
| Enclosure Nominal Height | 1250 mm |
| Range | Thalassa |
| Enclosure Mounting | floor-standing |
| Enclosure Nominal Depth | 320 mm |
| Device Application | multi-purpose |
| Device Short Name | PLAZ |
| Enclosure Nominal Width | 1000 mm |
| Ik Degree Of Protection | IK10 IEC 62262 plain door) |
| Ambient Air Temperature For Storage | -35-90 °C |
| Ip Degree Of Protection | IP54 IEC 60529 plinth type open bottom) |
| Fire Resistance | 960 °C IEC 62208 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110505EN |
| Sustainable Offer Status | Green Premium product |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
