NSYPLA1074G

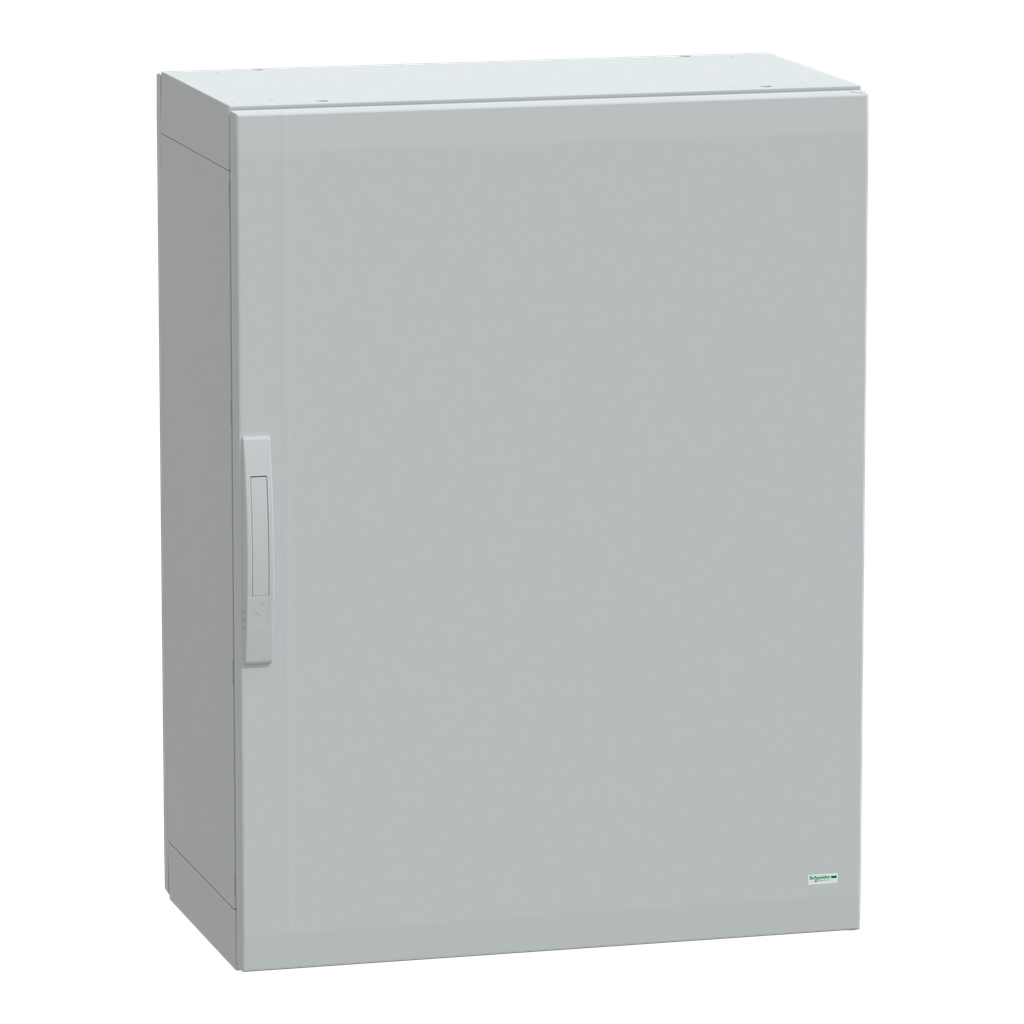

Floor standing polyester enclosure, Thalassa PLA, plain door, completely sealed, 1000x750x420mm, IP65, IK10
Thalassa PLA floor standing polyester enclosure. 1000x 750x 420 mm. Sealed top and bottom part, assembled with side parts. 4 points lock, 5 mm double-bar insert. 1 door. Accessible front and rear. Reversible 120° opening. Polyester reinforced with fibreglass. Grey RAL 7035. IP65, IK10, NEMA (1,2,12,13). 960°C fire resistance.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ik Degree Of Protection | IK10 IEC 62262 plain door) |
|---|---|
| Ambient Air Temperature For Storage | -35-90 °C |
| Ip Degree Of Protection | IP65 IEC 60529 completely sealed) |
| Fire Resistance | 960 °C IEC 62208 |
| Product Certifications |
|
| Accessibility For Operation |
|
| Removable Parts |
|
| Standards |
|
| Door Type | Solid front |
| Lock Type | 4 points lock, 5 mm double-bar |
| Door Opening Side | reversible 120 °) |
| Number Of Doors | 1 |
| Electrical Insulation Class | class II |
| Nema Degree Of Protection |
|
| Body Type | sealed top and bottom part assembled with side parts |
| Material | polyester reinforced with fibreglass |
| Color | Gray RAL 7035) |
| Country of Origin | Spain |
| Width | 750 mm |
| Height | 1000 mm |
| Product Or Component Type | suitable enclosure |
| Product Name | Thalassa PLA |
| Device Composition |
|
| Enclosure Nominal Height | 1000 mm |
| Range | Thalassa |
| Enclosure Mounting | floor-standing |
| Enclosure Nominal Depth | 420 mm |
| Device Application | multi-purpose |
| Device Short Name | PLA |
| Enclosure Nominal Width | 750 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110505EN |
| Sustainable Offer Status | Green Premium product |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Documents
- Thalassa PLA - PLAT - PLAZT - PLAZ - Instruction sheet - PHA7553301 (pdf)
- Thalassa Polyester Enclosures Brochure - Thalassa (pdf)
- Spec Sheet
- Universal Enclosures - Quick Selection Guide (2024 EN) - UEMKCAT034EN_(web) (pdf)
- Spacial, Thalassa, and ClimaSys Universal Enclosures US Catalog 2022 - SE_Enclosure_US_2022_V0 (pdf)
