NSYPLA10104G

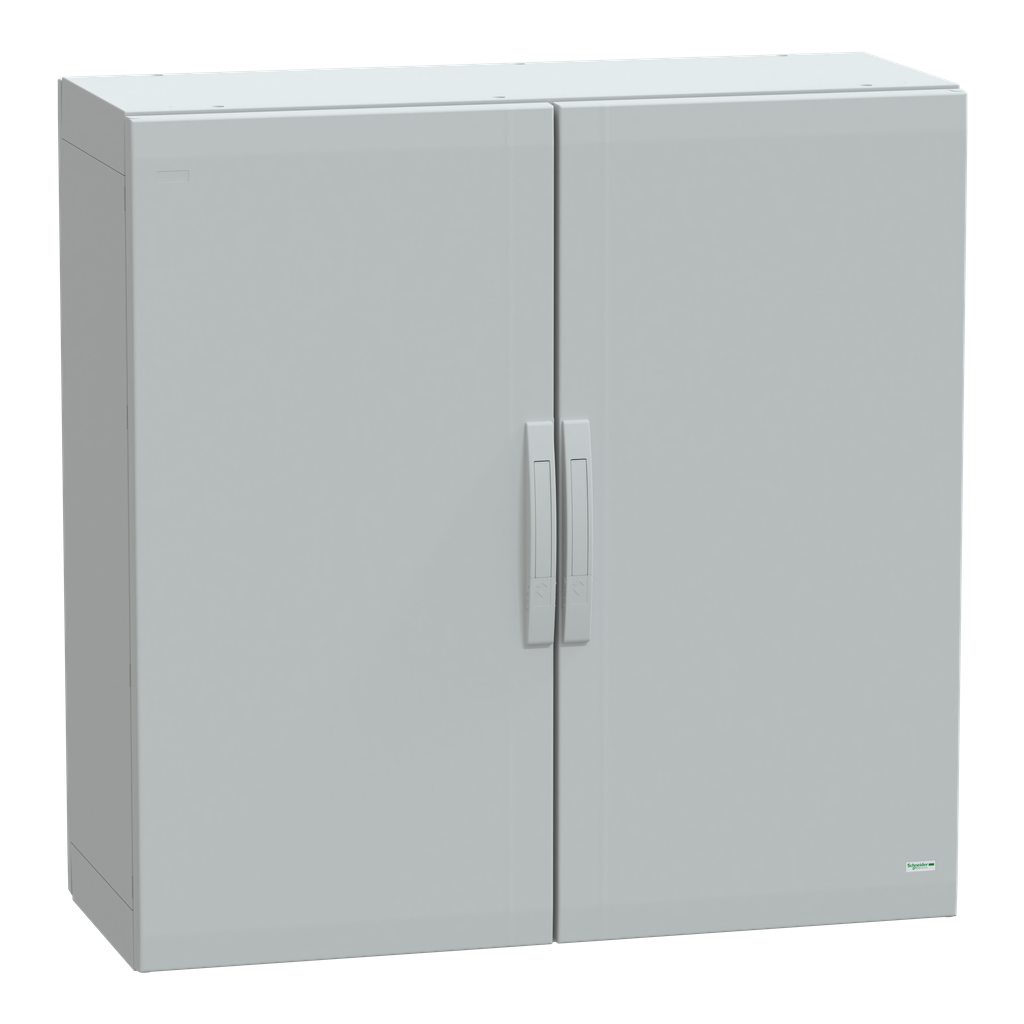

Floor standing polyester enclosure, Thalassa PLA, plain door, completely sealed, 1000x1000x420mm, IP65, IK10
Thalassa PLA floor standing polyester enclosure. 1000x 1000x 420 mm. Sealed top and bottom part, assembled with side parts. 4 points lock, 5 mm double-bar insert. 2 doors. Right and left 120° opening. Accessible front and rear. Polyester reinforced with fibreglass. Grey RAL 7035. IP65, IK10, NEMA (1,2,12,13). 960°C fire resistance.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Or Component Type | suitable enclosure |
|---|---|
| Product Name | Thalassa PLA |
| Device Composition |
|
| Enclosure Nominal Height | 1000 mm |
| Range | Thalassa |
| Enclosure Mounting | floor-standing |
| Enclosure Nominal Depth | 420 mm |
| Device Application | multi-purpose |
| Device Short Name | PLA |
| Enclosure Nominal Width | 1000 mm |
| Product Certifications |
|
| Accessibility For Operation |
|
| Removable Parts |
|
| Standards |
|
| Door Type | Solid front |
| Lock Type | 4 points lock, 5 mm double-bar |
| Door Opening Side | right and left 120 °) |
| Number Of Doors | 2 |
| Electrical Insulation Class | class II |
| Nema Degree Of Protection |
|
| Body Type | sealed top and bottom part assembled with side parts |
| Material | polyester reinforced with fibreglass |
| Color | Gray RAL 7035) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110505EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ik Degree Of Protection | IK10 IEC 62262 plain door) |
| Ambient Air Temperature For Storage | -35-90 °C |
| Ip Degree Of Protection | IP65 IEC 60529 completely sealed) |
| Fire Resistance | 960 °C IEC 62208 |
