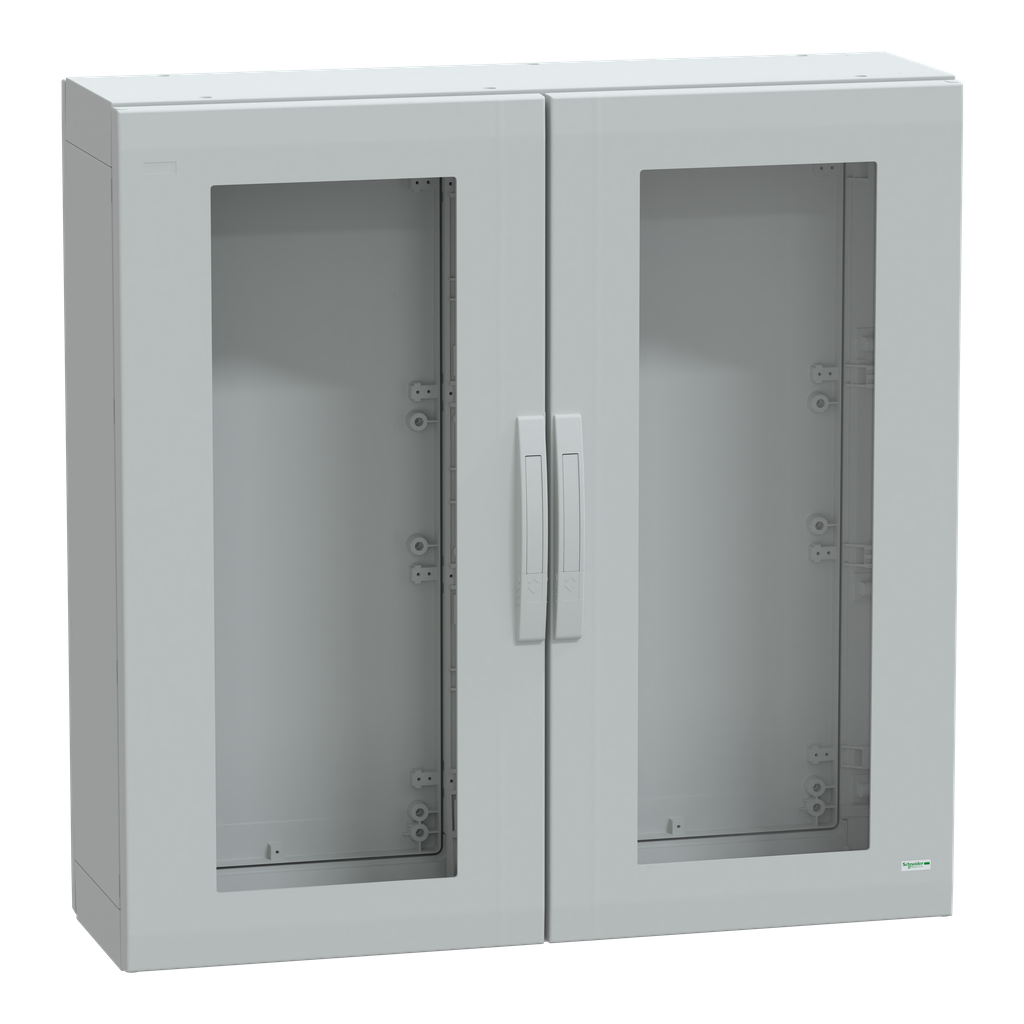

NSYPLA10103TG - Floor standing polyester enclosure, Thalassa PLA, glazed door, completely sealed, 1000x1000x320mm, IP65, IK08

NSYPLA10103TG

Add to Quote Catalogue

Product Or Component Type	suitable enclosure
Product Name	Thalassa PLA
Device Composition	1 top part 1 bottom part 2 side part 2 door 2 rear panel
Enclosure Nominal Height	1000 mm
Range	Thalassa
Enclosure Mounting	floor-standing
Enclosure Nominal Depth	320 mm
Device Application	multi-purpose
Device Short Name	PLA
Enclosure Nominal Width	1000 mm
Product Certifications	UL/cUL listed DNV Marine Veritas
Accessibility For Operation	front rear
Removable Parts	door by hinges rear panel by fixing element
Standards	IEC 62208 UL 508 A
Door Type	transparent front
Lock Type	4 points lock, 5 mm double-bar
Door Opening Side	right and left 120 °)
Number Of Doors	2
Electrical Insulation Class	class II
Nema Degree Of Protection	NEMA 1 NEMA 2 NEMA 12 NEMA 13
Body Type	sealed top and bottom part assembled with side parts
Material	polyester reinforced with fibreglass
Color	Gray RAL 7035)
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP110505EN
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Ik Degree Of Protection	IK08 IEC 62262 glazed door)
Ambient Air Temperature For Storage	-35-90 °C
Ip Degree Of Protection	IP65 IEC 60529 completely sealed)
Fire Resistance	960 °C IEC 62208
