NSYPIN86

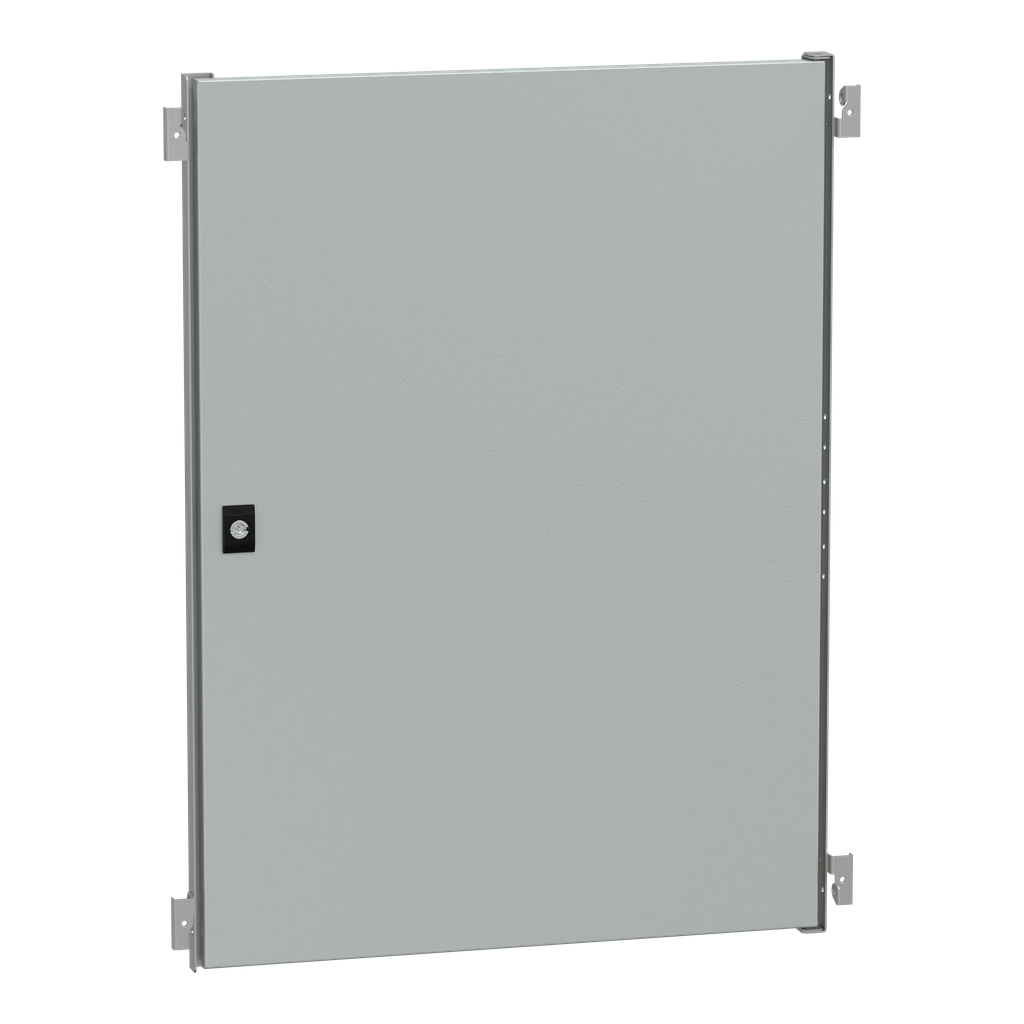

Internal door for PanelSeT WM encl. H800xW600 steel, RAL7035.Adjustable in depth
Specifications
| Country of Origin | Spain |
|---|---|
| Weight | 6.2 kg |
| Enclosure Nominal Dimensions | - |
| Range Compatibility |
|
| Accessory / Separate Part Category | enclosure accessory |
| Product Or Component Type | door |
| Device Composition |
|
| Range | PanelSeT |
| Mounting Location |
|
| Device Application | multi-purpose |
| Adjustment | pitch 25 mm (on step slides) |
| Number Of Locks | 1 |
| Surface Finish | polyester powder |
| Lock Type | lock 3 mm double bar |
| Net Weight | 6.2 kg |
| Door Opening Side | reversible |
| Width | nominal: 600 mm |
| Height | nominal: 800 mm |
| Material | door sheet steel |
| Maximum Load | 30 kg/m² |
| Color | all faces Gray RAL 7035) |
| Door Type | internal plain |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP100104EN |
| Sustainable Offer Status | Green Premium product |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Warranty | 18 months |
Documents
- Spec Sheet
- Universal Enclosures - Quick Selection Guide (2024 EN) - UEMKCAT034EN_(web) (pdf)
- Spacial, Thalassa, and ClimaSys Universal Enclosures US Catalog 2022 - SE_Enclosure_US_2022_V0 (pdf)
- Universal Enclosures - Stainless Steel Enclosures for Aggressive Environments - 2021 Selection Guide - UEMKG001EN_(web) (pdf)
