NSYPIN128

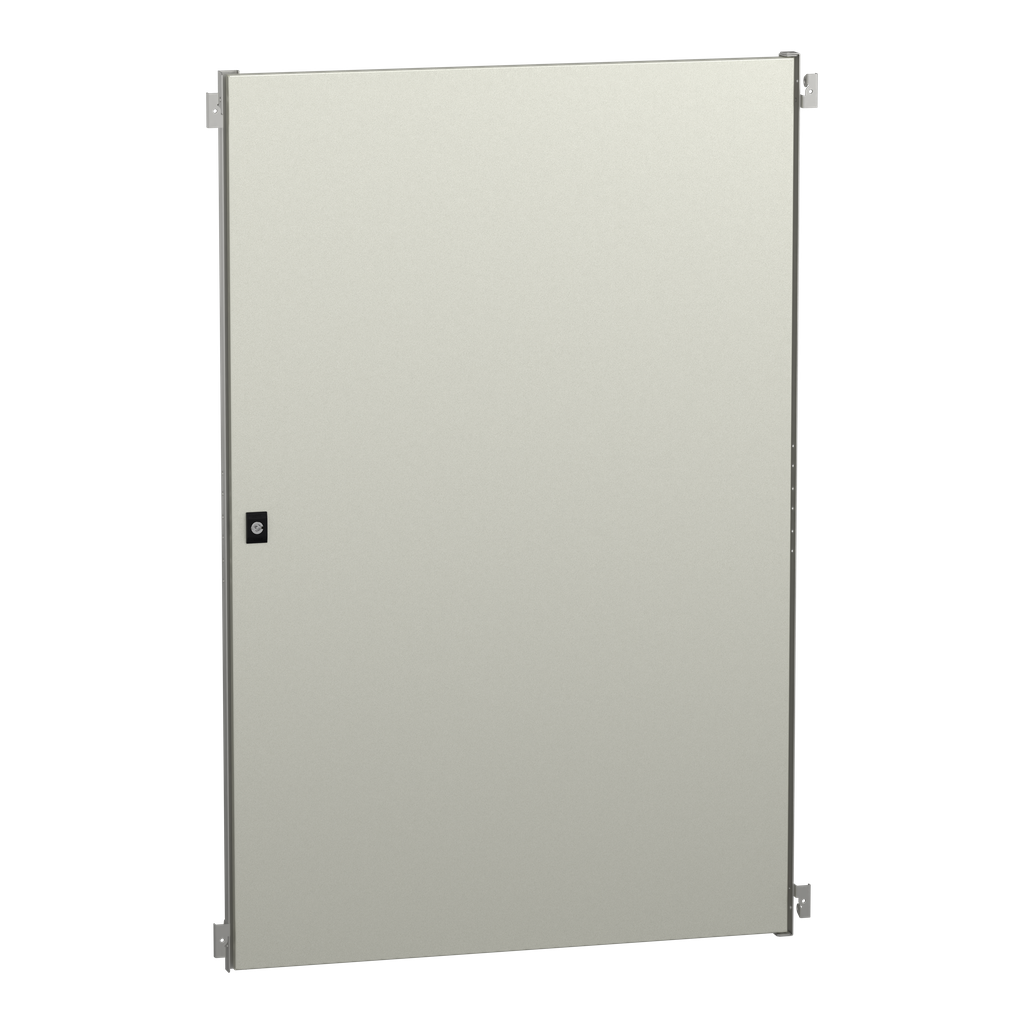

Internal door for PanelSeT WM encl.H1200xW800 steel, RAL7035.Adjustable in depth
Internal door for Spacial WM steel enclosures (CRN, S3D, S3X). Enclosures H is1200 x W is800 mm. Multi-purpose application. Maximum load 30 kg/m². 1 lock, 3 mm double bar insert. Step slides or front side mounting location. Adjustment is pitch 25 mm (on step slides). Sheet steel made. Grey RAL 7035. Door, 4 fixing brackets, 2 mounting uprights incl.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | Spain |
|---|---|
| Weight | 13.6 kg |
| Enclosure Nominal Dimensions | - |
| Range Compatibility |
|
| Accessory / Separate Part Category | enclosure accessory |
| Product Or Component Type | door |
| Device Composition |
|
| Range | PanelSeT |
| Mounting Location |
|
| Device Application | multi-purpose |
| Adjustment | pitch 25 mm (on step slides) |
| Number Of Locks | 1 |
| Surface Finish | polyester powder |
| Lock Type | lock 3 mm double bar |
| Net Weight | 13.6 kg |
| Door Opening Side | reversible |
| Width | nominal: 800 mm |
| Height | nominal: 1200 mm |
| Material | door sheet steel |
| Maximum Load | 30 kg/m² |
| Color | all faces Gray RAL 7035) |
| Door Type | internal plain |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP100104EN |
| Sustainable Offer Status | Green Premium product |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
