NSYPF27N

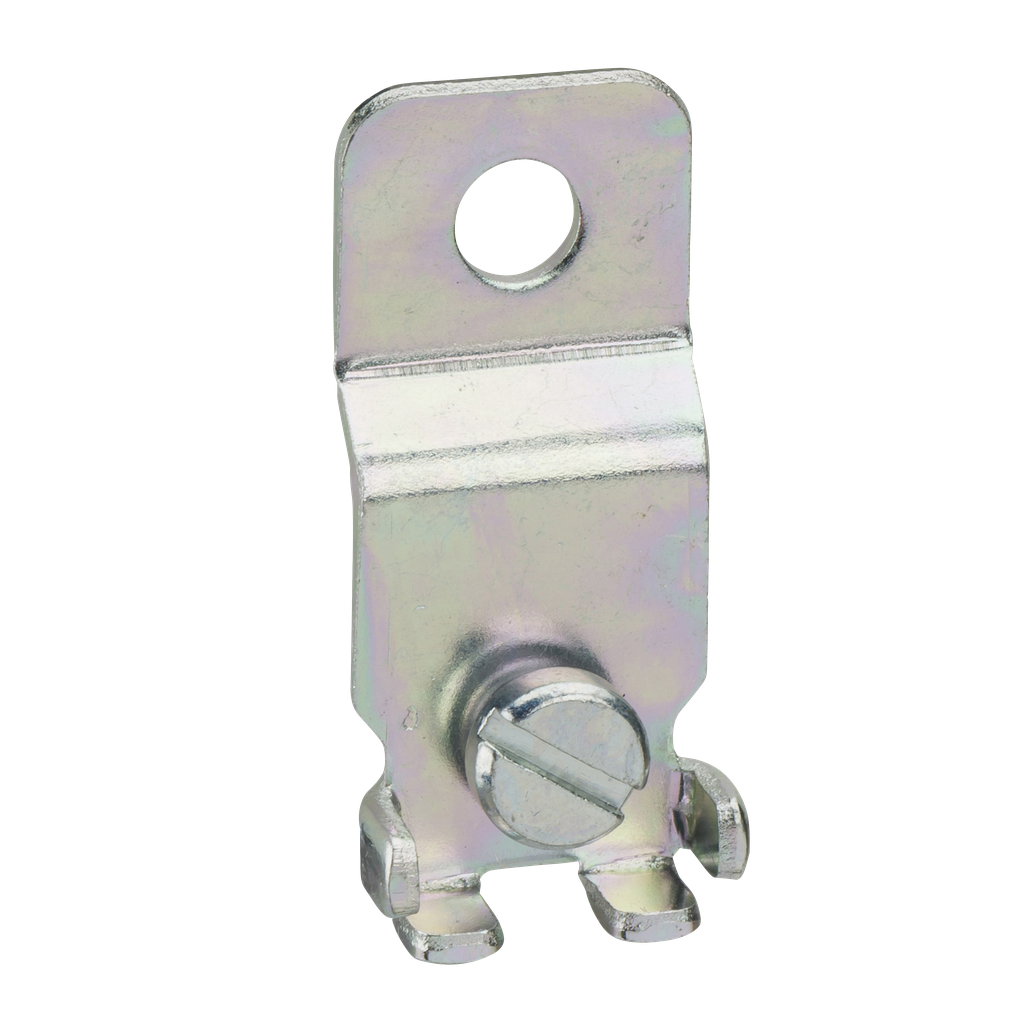

Wall mounting lugs, Thalassa PLS, Set of 4
Thalassa PLS Wall mounting lugs for PLS box. W100XD100 mm. Multi-purpose application. Fixing mode by screwed - from the outside location. Mounting location on top and bottom, on rear of the enclosure. 4 lugs. Made in steel. Zinc coated
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110704EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Country of Origin | Spain |
| Enclosure Nominal Dimensions | - |
| Range Compatibility | Thalassa Thalassa PLS |
| Accessory / Separate Part Category | fixing accessory |
| Product Or Component Type | wall fixing support |
| Device Composition |
|
| Range | Thalassa |
| Mounting Location | top and bottom, on rear of the enclosure |
| Device Application | multi-purpose |
| Warranty | 18 months |
| Surface Finish | zinc coated |
| Depth | 100 mm |
| Fixing Mode | screwed - from the outside |
| Permanent Permissible Load | 0 kg |
| Width | 100 mm |
| Height | 0 mm |
| Material | steel |
