NSYOL6GF

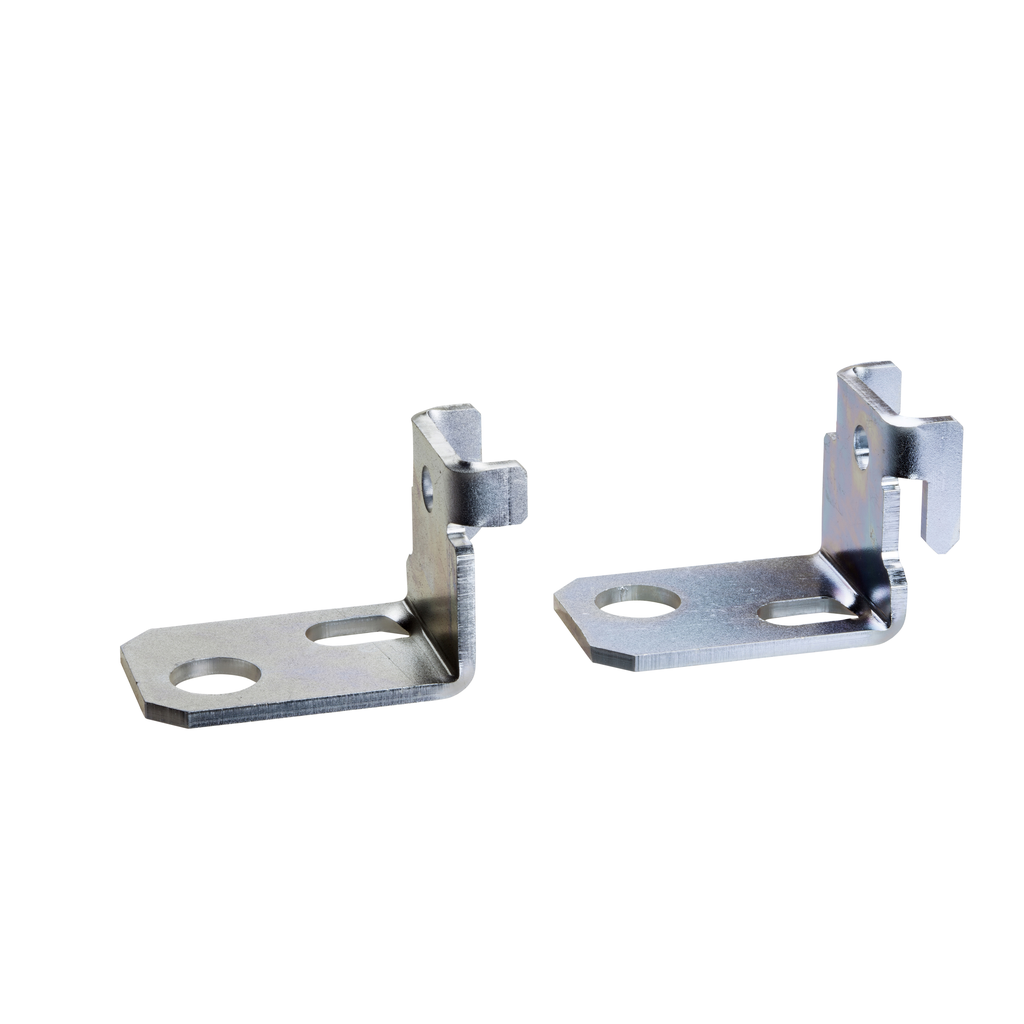

Brackets for fixing the plinth to the floor, OLN/CMO, PanelSeT 6000 and 18500, steel
Specifications
| Country of Origin | Spain |
|---|---|
| Enclosure Nominal Dimensions | - |
| Range Compatibility |
|
| Accessory / Separate Part Category | fixing accessory |
| Product Or Component Type | fixing bracket |
| Device Composition | 4 bracket |
| Range | PanelSeT |
| Mounting Support | plinth kit |
| Quantity Per Set | set of 1 |
| Device Application | multi-purpose |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110923EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Surface Finish | zinc coated |
| Material | steel |
| Thickness | 4 mm |
| Depth | 53 mm |
| Fixing Mode | by screws M12 - on floor |
| Width | 30 mm |
| Height | 32.5 mm |
| Warranty | 18 months |
