NSYMR43

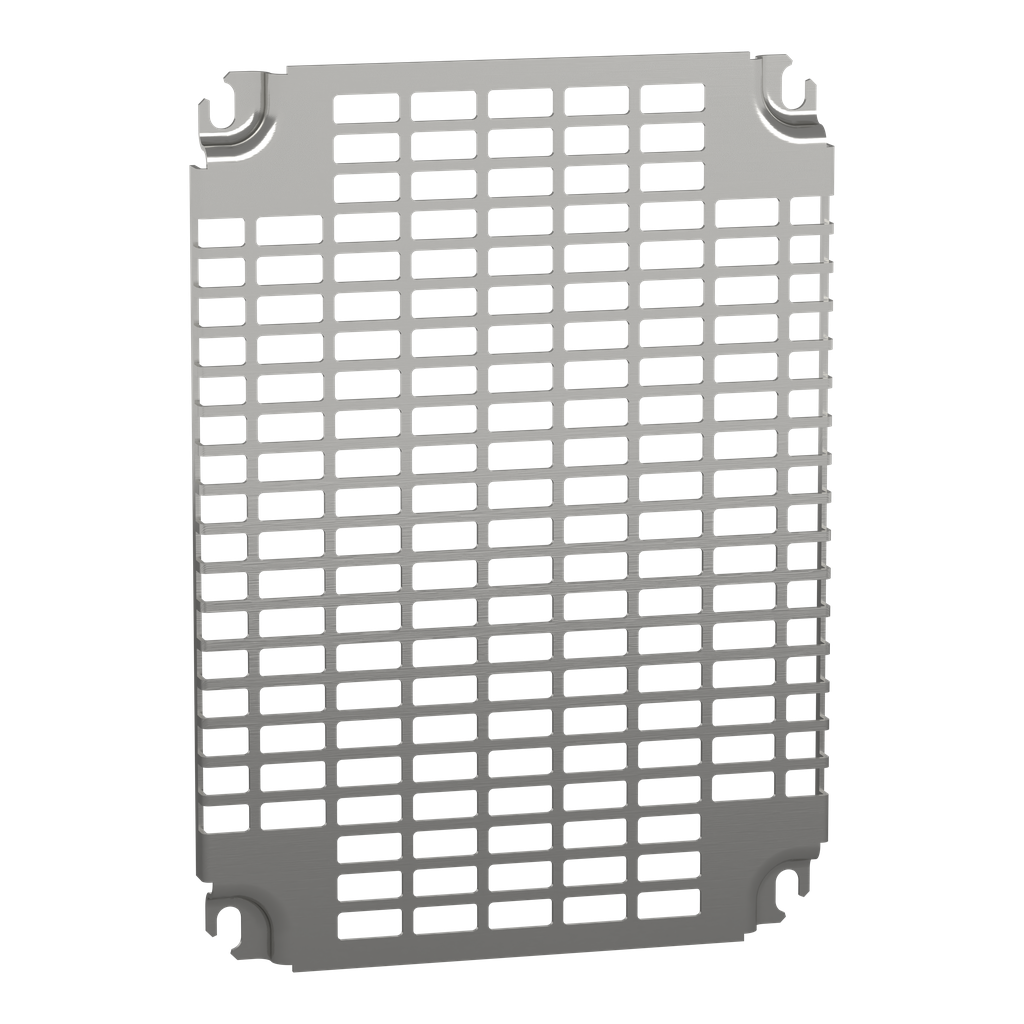

Monobloc perforated plates , H400xW300mm with universal perforations 11x26mm
Monobloc perforated plates with universal perforations for CRN, S3D, PLM. For enclosures H is400 x W is300 mm. Multi-purpose accessory. Step slide or direct fixing on back studs mounting (M8 screws). Telequick perforated. Cut-out dimensions is 11x26mm. Steel made, zinc coated surface finish. 198 slots. Variant particularity is Installation in rear of enclosure.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2202003EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Country of Origin | France |
| Weight | 0.682 kg |
| Enclosure Nominal Dimensions | - H: 400 mm W: 300 mm |
| Range Compatibility |
|
| Accessory / Separate Part Category | mounting accessory |
| Surface Finish | zinc coated |
| Product Or Component Type | mounting plate |
| Range | PanelSeT |
| Mounting Location |
|
| Material | steel |
| Quantity Per Set | set of 1 |
| Device Application | multi-purpose |
| Mounting Plate Description | Telequick perforated |
| Warranty | 18 months |
| Variant Particularity | installation in rear of enclosure |
| Thickness | 2 mm |
| Net Weight | 0.682 kg |
| Depth | 15 mm |
| Fixing Mode |
|
| Cut-Out Dimensions | 11 x 26 mm |
| Number Of Slots | 198 |
| Width | 251 mm |
| Height | 348 mm |
Documents
- Universal Enclosures - Quick Selection Guide (2024 EN) - UEMKCAT034EN_(web) (pdf)
- Spacial, Thalassa, and ClimaSys Universal Enclosures US Catalog 2022 - SE_Enclosure_US_2022_V0 (pdf)
- Universal Enclosures - Stainless Steel Enclosures for Aggressive Environments - 2021 Selection Guide - UEMKG001EN_(web) (pdf)
- Outdoor Heavy Duty enclosures catalogue - Toughest outdoor environments get their dedicated enclosures - UE14MK01EN+(web) (pdf)
- Spec Sheet
