NSYMP226

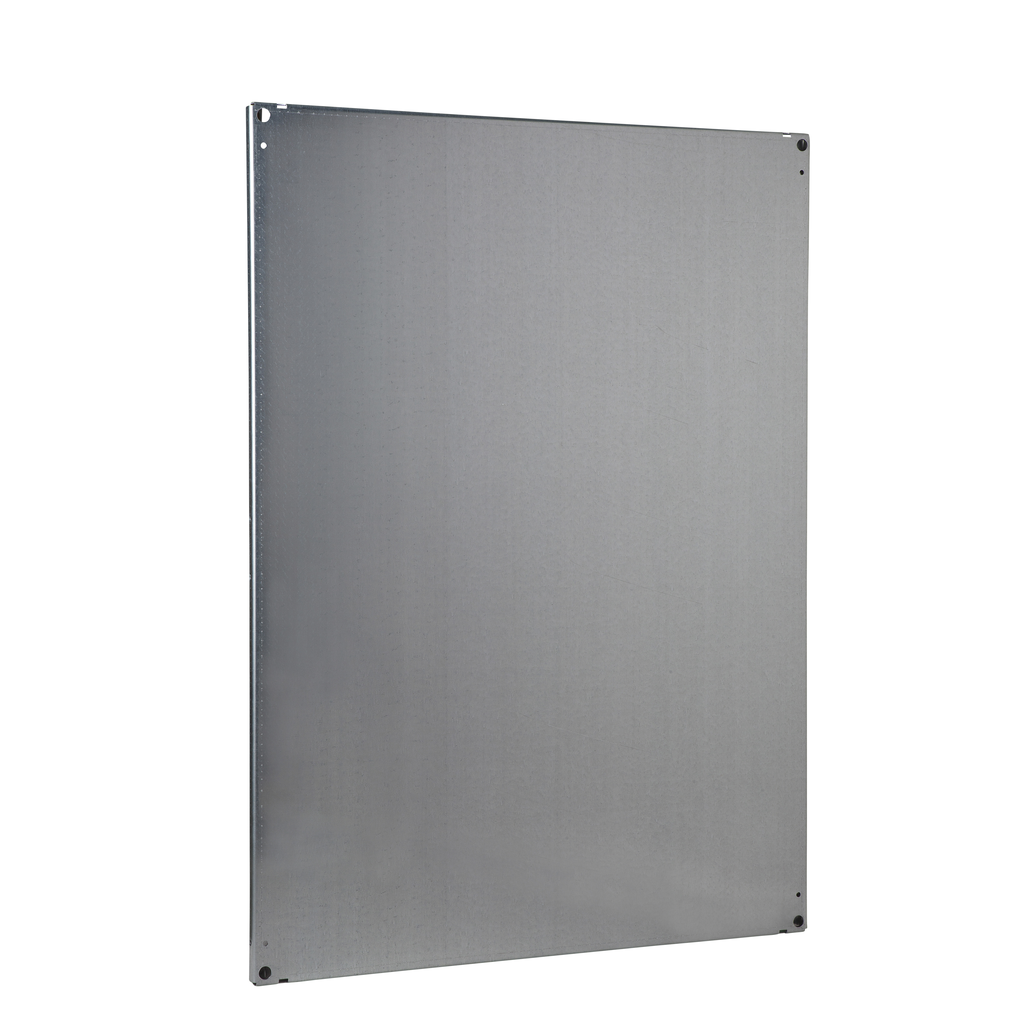

Plain mounting plate, PanelSeT SFN, PanelSeT SF, PanelSeT SM, for electrical enclosure H2200 W600mm, galvanized steel
Spacial SF/SM standard mounting plate. 2199 x 600 mm. Equipped with a perimeter reinforcement rib. Max. Load 600 kg if positioned in the rear, 500 kg if positioned in the middle of Enclosure. Galvanized sheet steel. Fixing mode by brackets.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Warranty | 18 months |
|---|---|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2202003EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Country of Origin | Spain |
| Enclosure Nominal Dimensions | - |
| Range Compatibility |
|
| Accessory / Separate Part Category | mounting accessory |
| Product Or Component Type | mounting plate |
| Device Composition |
|
| Range | PanelSeT |
| Material | galvanised steel |
| Quantity Per Set | set of 1 |
| Device Application | multi-purpose |
| Mounting Plate Description | plain |
| Depth | 27 mm |
| Fixing Mode | by fixing brackets |
| Permanent Permissible Load |
|
| Width |
|
| Height |
|
| Maximum Load | 300 kg/m² |
Documents
- Spacial SF SM - Galvanised plain mounting plate - 7314000001-A (pdf)
- Spec Sheet
- Universal Enclosures - Quick Selection Guide (2024 EN) - UEMKCAT034EN_(web) (pdf)
- Universal Enclosures: Section 24 - Digest 179 (2024) - Universal-Enclosures-Digest-Catalog-0100CT2401-SEC-24 (pdf)
- Spacial, Thalassa, and ClimaSys Universal Enclosures US Catalog 2022 - SE_Enclosure_US_2022_V0 (pdf)
- Digest Catalog 28: Universal Enclosures - 0100CT1901_SEC-28 (pdf)
- Spacial, Thalassa, and ClimaSys Universal Enclosures Catalog - 9993CT0901R08_16+Body+(Web) (pdf)
