NSYMM44

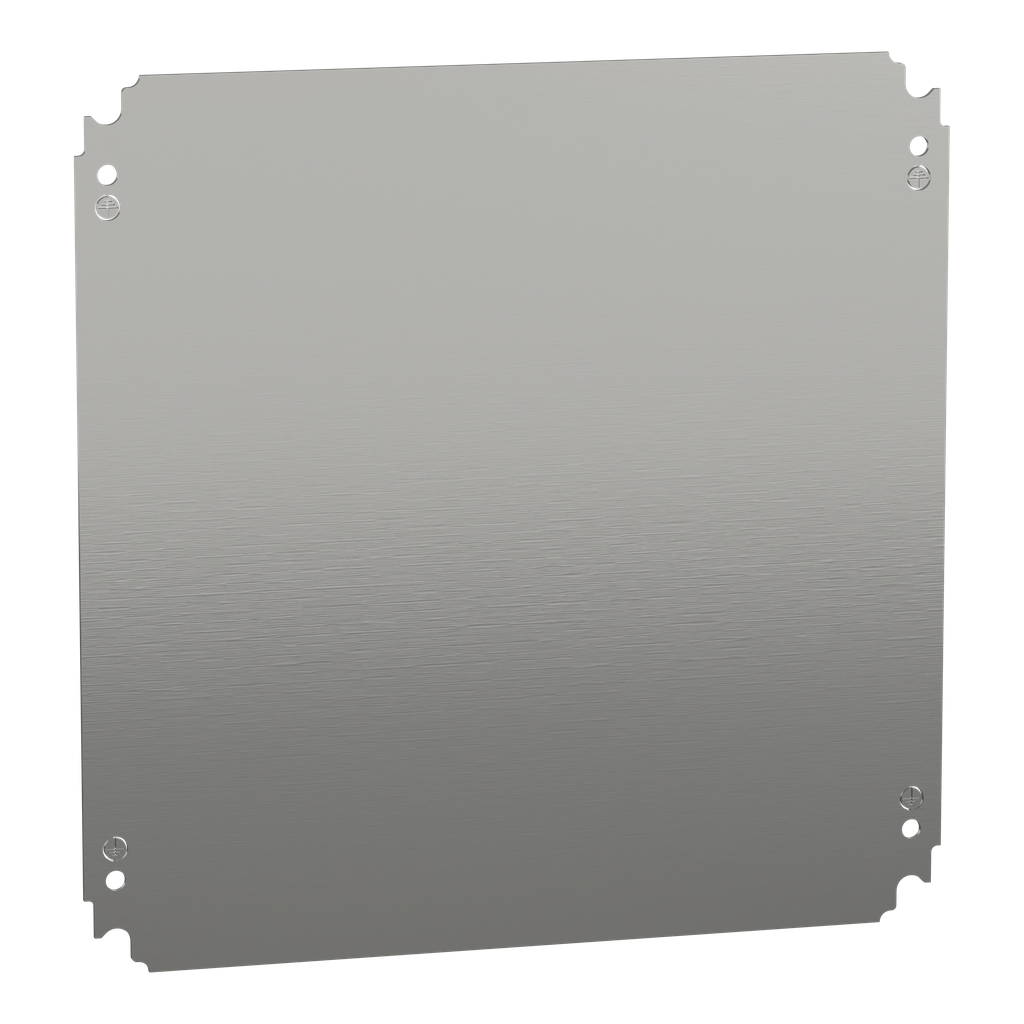

Plain mounting plate H400xW400mm made of galvanised sheet steel
Plain mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is400 x W is400 mm. Multi-purpose mounting accessory. Step slide mounting location or direct fixing on backstuds (M8 screws). 60 Kg permissible load. Galvanised steel. Set of 1.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Thickness | 1.8 mm |
|---|---|
| Net Weight | 1.72 kg |
| Fixing Mode |
|
| Permanent Permissible Load | 60 kg |
| Width | 350 mm |
| Height | 350 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2202003EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Country of Origin | Spain |
| Weight | 1.72 kg |
| Enclosure Nominal Dimensions | - H: 400 mm W: 400 mm |
| Range Compatibility |
|
| Accessory / Separate Part Category | mounting accessory |
| Product Or Component Type | mounting plate |
| Range | PanelSeT |
| Mounting Location |
|
| Material | galvanised steel |
| Quantity Per Set | set of 1 |
| Device Application | multi-purpose |
| Mounting Plate Description | plain |
| Warranty | 18 months |
Documents
- Rittal Competitive Cross References Brochure - Rittal+Cross+2-19 (pdf)
- Spec Sheet
- Universal Enclosures: Section 24 - Digest 179 (2024) - Universal-Enclosures-Digest-Catalog-0100CT2401-SEC-24 (pdf)
- Spacial, Thalassa, and ClimaSys Universal Enclosures US Catalog 2022 - SE_Enclosure_US_2022_V0 (pdf)
- Digest Catalog 28: Universal Enclosures - 0100CT1901_SEC-28 (pdf)
- Universal Enclosures - Stainless Steel Enclosures for Aggressive Environments - 2021 Selection Guide - UEMKG001EN_(web) (pdf)
- Spacial, Thalassa, and ClimaSys Universal Enclosures Catalog - 9993CT0901R08_16+Body+(Web) (pdf)
- Industrial Control Panel Solutions Catalog - 8800CT1801 (pdf)
