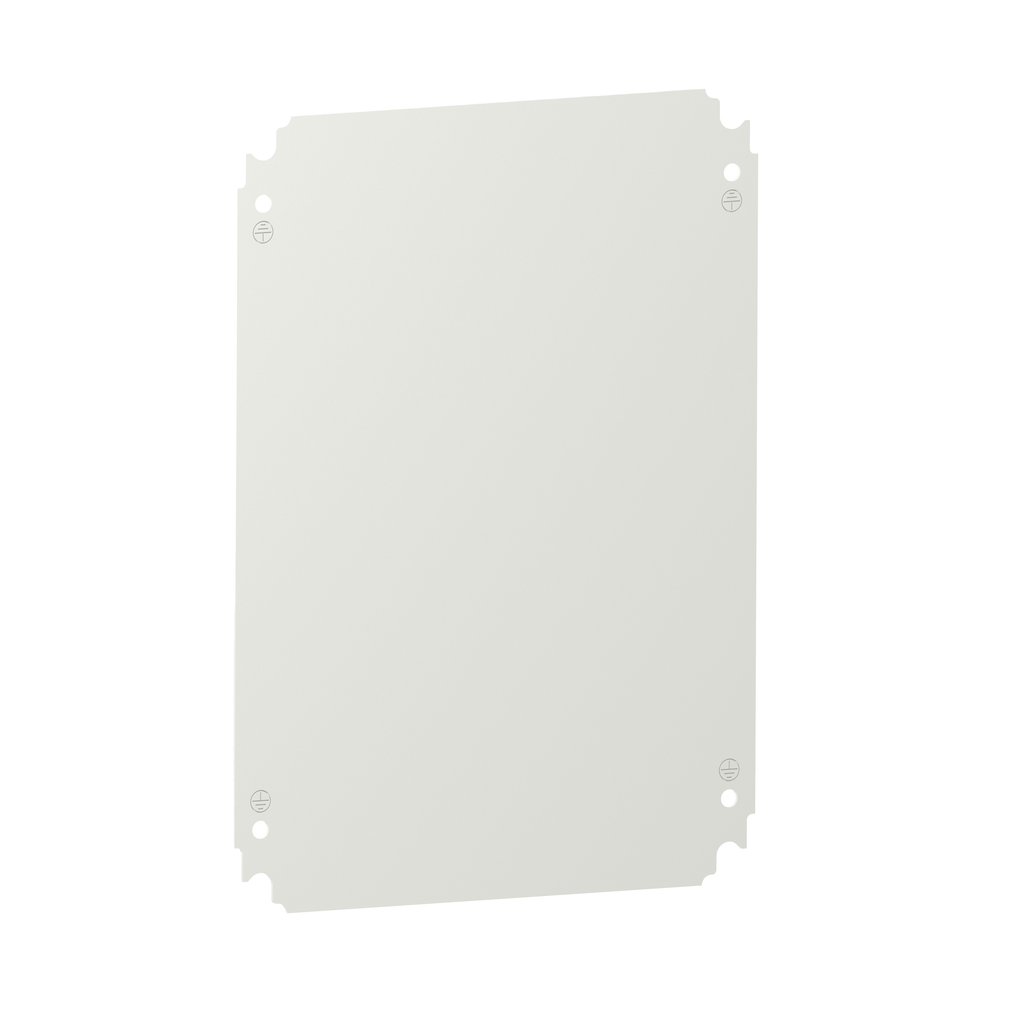

NSYMM43WH
Mounting plate - enclosure H400xW300mm - polyester powder over galvanised sheet
Specifications
| Country of Origin | Spain |
|---|---|
| Weight | 1.25 kg |
| Enclosure Nominal Dimensions | - |
| Range Compatibility |
|
| Material | galvanised steel |
| Accessory / Separate Part Category | mounting accessory |
| Surface Finish | epoxy-polyester powder |
| Quantity Per Set | set of 1 |
| Product Or Component Type | mounting plate |
| Color | White |
| Application Market | only US market |
| Device Application | multi-purpose |
| Mounting Plate Description | plain |
| Range | PanelSeT |
| Mounting Location |
|
| Width | 320 mm |
| Height | 250 mm |
| Variant Particularity | installation in enclosures with inverted dimensions |
| Thickness | 1.8 mm |
| Net Weight | 1.25 kg |
| Depth | 125 mm |
| Fixing Mode |
|
| Permanent Permissible Load | 60 kg |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Warranty | 18 months |
