NSYMM13SB

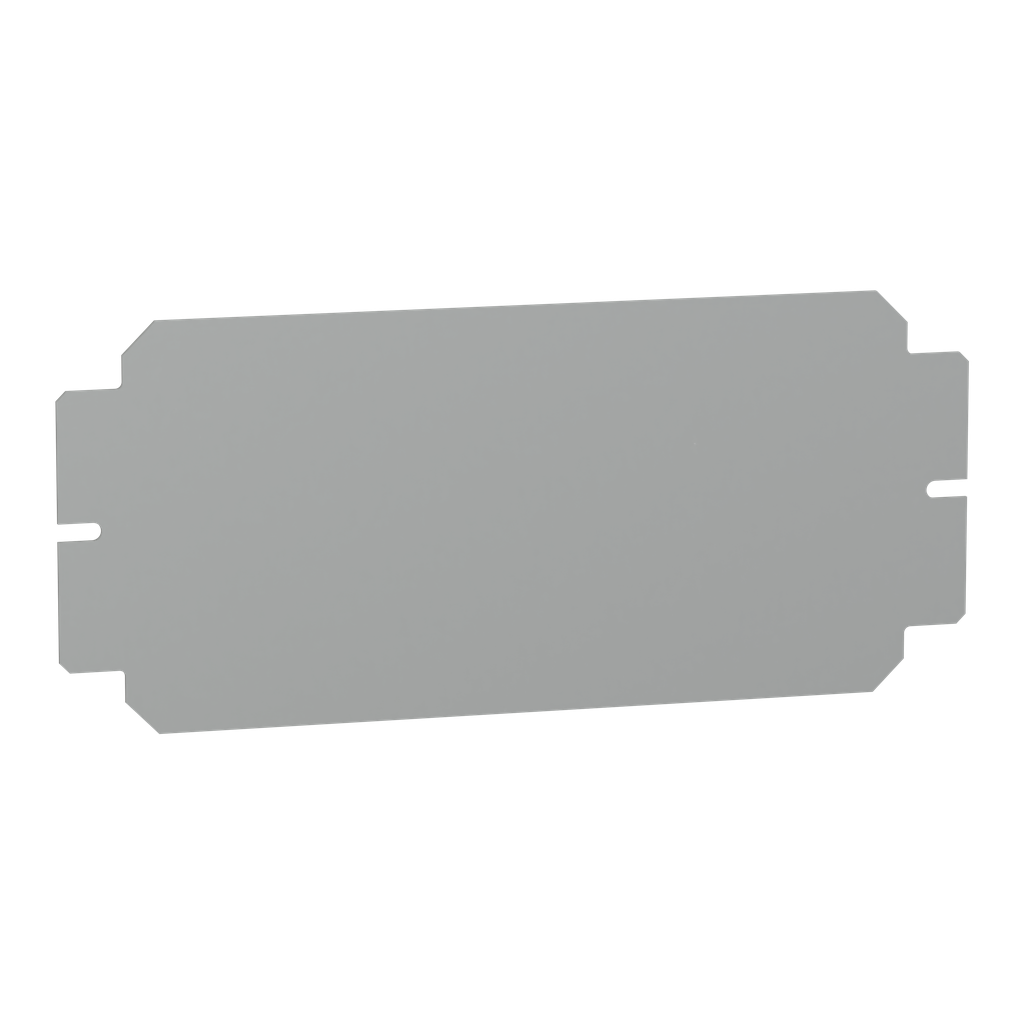

Plain mounting plate H150xW300mm made of galvanised sheet steel
Specifications
| Surface And Useful Surface | nominal 45000 mm² |
|---|---|
| Thickness | 1.5 mm |
| Net Weight | 0.402 kg |
| Fixing Mode | by 2 screws Ø5 mm self-tapping screws - bottom of enclosure |
| Permanent Permissible Load | 2.25 kg back of the enclosure |
| Width |
|
| Height | nominal: 125 mm |
| Country of Origin | India |
| Weight | 0.402 kg |
| Enclosure Nominal Dimensions | - |
| Range Compatibility | PanelSeT PanelSeT SBM |
| Accessory / Separate Part Category | mounting accessory |
| Surface Finish | metallic |
| Product Or Component Type | mounting plate |
| Device Composition | 1 mounting plate |
| Range | PanelSeT |
| Mounting Location | bottom of enclosure |
| Material | galvanised steel |
| Device Application | multi-purpose |
| Mounting Plate Description | plain |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2202003EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
