NSYMF53

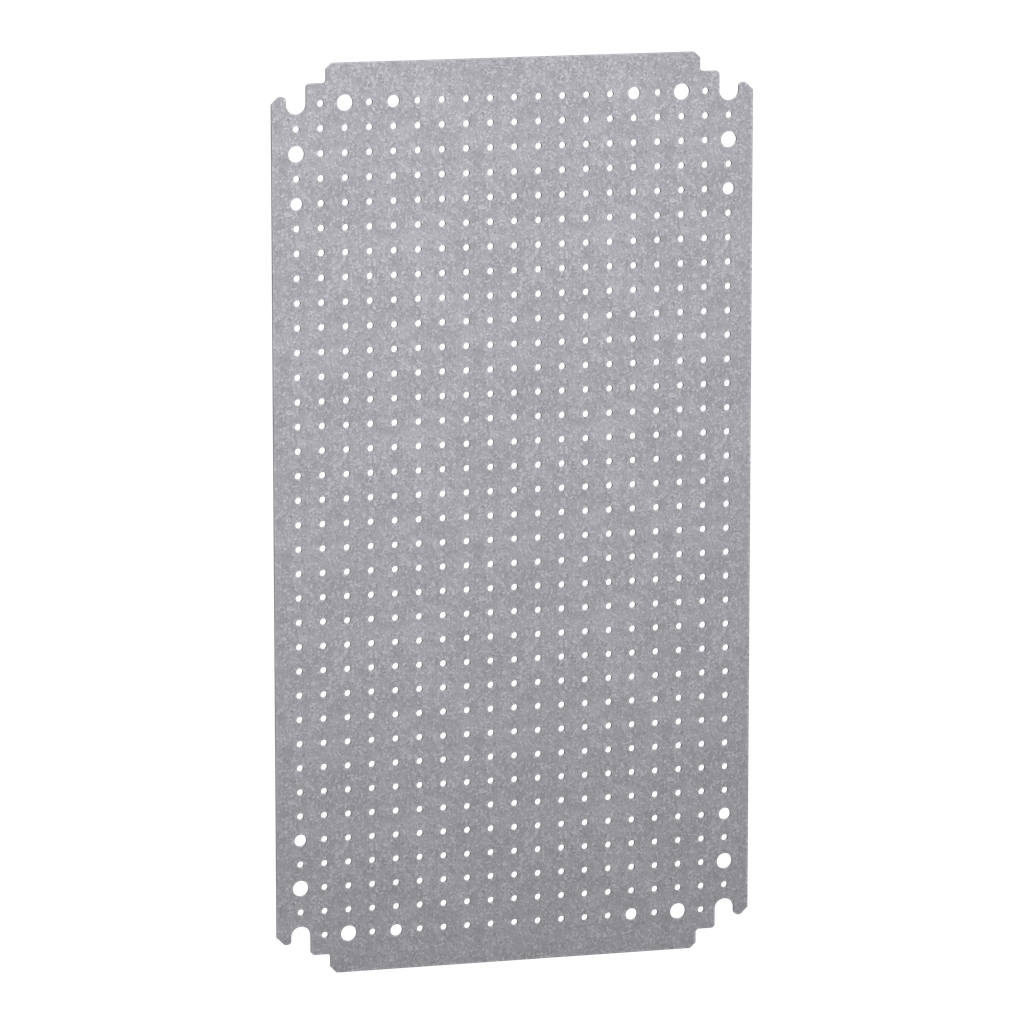

Microperforated mounting plate H500xW300 w/holes diam 3,6mm on 12,5mm pitch
Microperforated mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is500 x W is300 mm. With holes diam 3,6mm on 12,5mm pitch. Multi-purpose mounting access. Step slide mounting location or direct fixing on backstuds (M8 screws). 60 Kg permissible load. Galvanised steel. Reversible dimensions is Can be installed in enclosure with inverted dimensions.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Thickness | 1.8 mm |
|---|---|
| Net Weight | 1.68 kg |
| Depth | 125 mm |
| Fixing Mode |
|
| Permanent Permissible Load | 60 kg |
| Width | 250 mm |
| Height | 450 mm |
| Country of Origin | Spain |
| Weight | 1.68 kg |
| Enclosure Nominal Dimensions |
|
| Range Compatibility |
|
| Accessory / Separate Part Category | mounting accessory |
| Product Or Component Type | mounting plate |
| Range | PanelSeT |
| Mounting Location |
|
| Material | galvanised steel |
| Quantity Per Set | set of 1 |
| Device Application | multi-purpose |
| Mounting Plate Description | microperforated |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2202003EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Warranty | 18 months |
