NSYMB3025

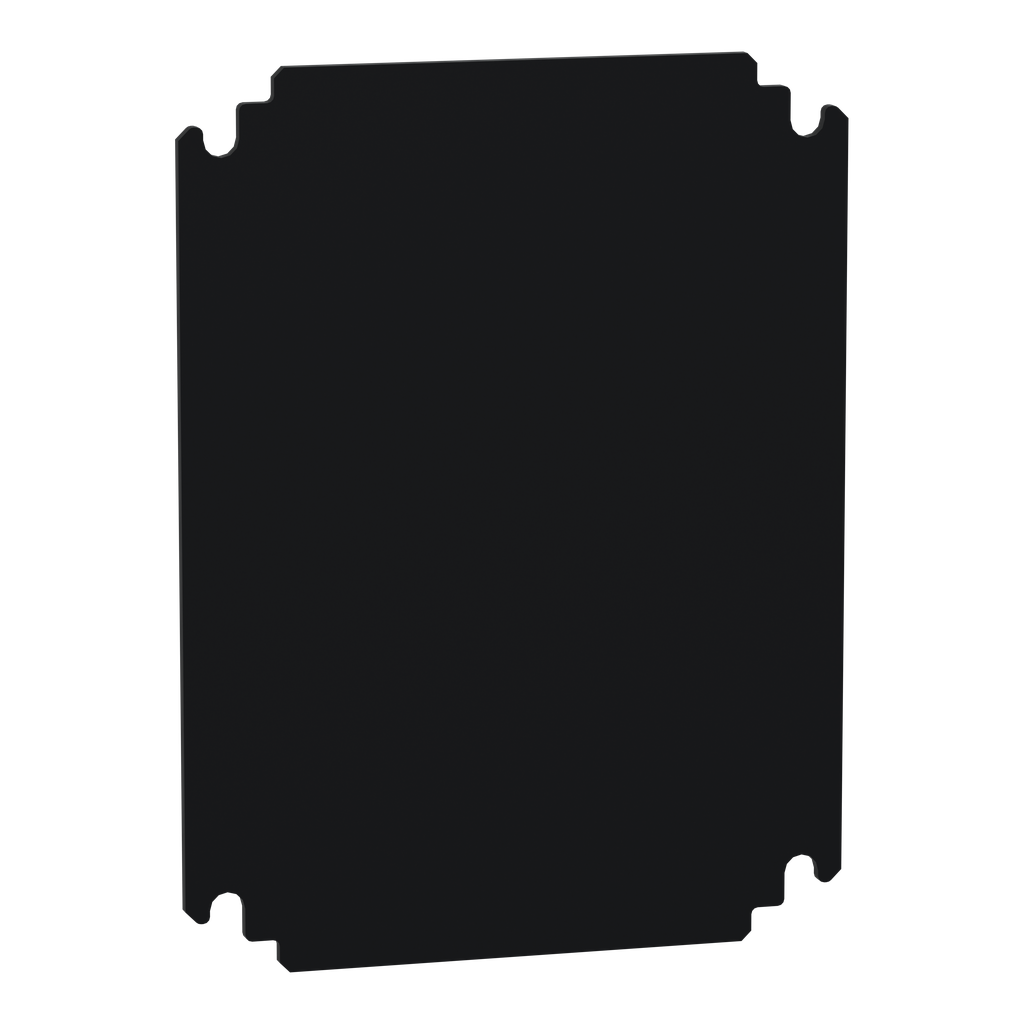

Insulating mounting plate for enclosure H300xW250mm made of bakelite
Specifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP100104EN |
| Sustainable Offer Status | Green Premium product |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Country of Origin | Spain |
| Weight | 2 kg |
| Enclosure Nominal Dimensions | - H: 300 mm W: 250 mm |
| Range Compatibility |
|
| Accessory / Separate Part Category | mounting accessory |
| Product Or Component Type | mounting plate |
| Range | PanelSeT |
| Mounting Location |
|
| Material | bakelite |
| Quantity Per Set | set of 1 |
| Color | Black RAL 9005) |
| Device Application | multi-purpose |
| Mounting Plate Description | plain |
| Warranty | 18 months |
| Thickness | 4 mm |
| Net Weight | 2 kg |
| Fixing Mode |
|
| Permanent Permissible Load | 1875 kg |
| Width | 200 mm |
| Height | 265 mm |
