NSYLAMPORTLD

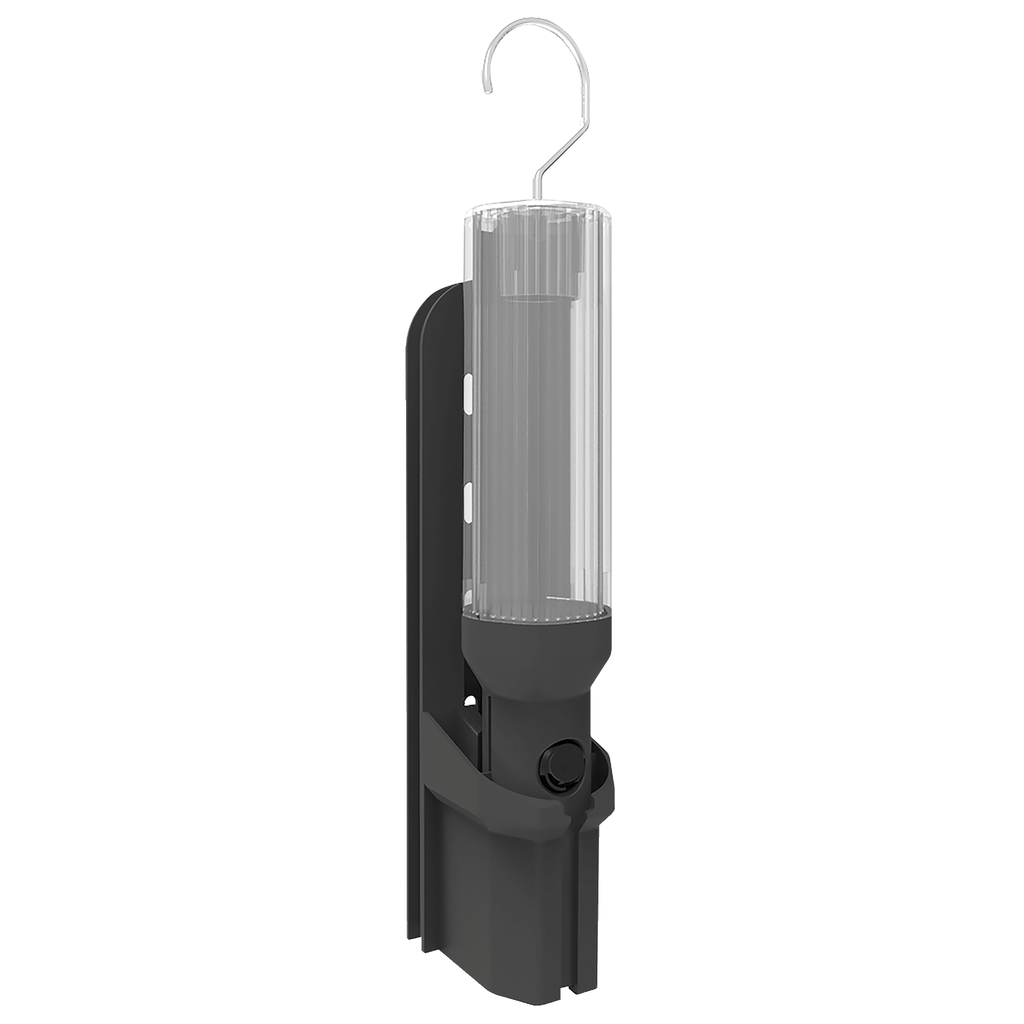

Portable lamp with on/off switch - 230V AC - 10W
Specifications
| Height | 403.5 mm |
|---|---|
| Range Compatibility |
|
| Fixing Mode |
|
| Material | PC (UL94 V-0) |
| Outlet Standard Deviation | without socket |
| Colour Temperature | 4000 K |
| Electrical Connection | cable 3 m supplied |
| Control Type | built-in recessed switch |
| Bulb Type | LED |
| Luminous Flux | 1100 lm |
| [Ue] Rated Operational Voltage | 120 V AC 50/60 Hz |
| Service Life In Hours | 25000 h |
| Rated Lamp Wattage | 10 W |
| Color | Black RAL 9005) |
| Width | 91.5 mm |
| Depth | 66 mm |
| Bulb Base | E27 |
| Ambient Air Temperature For Operation | -16-65 °C |
| Standards |
|
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Electrical Insulation Class | class II |
| Ambient Air Temperature For Storage | -10-60 °C |
| Country of Origin | France |
| Width | 91.5 mm |
| Height | 403.5 mm |
| Range Of Product | Lighting and power sockets |
| Power Factor | 0.9 |
| Accessory / Separate Part Category | lighting accessory |
| Product Or Component Type | lamp |
| Device Composition |
|
| Device Application | multi-purpose |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2202002EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | ENVEOLI2202002EN |
| Eu Rohs Directive | Compliant |
