NSYID206

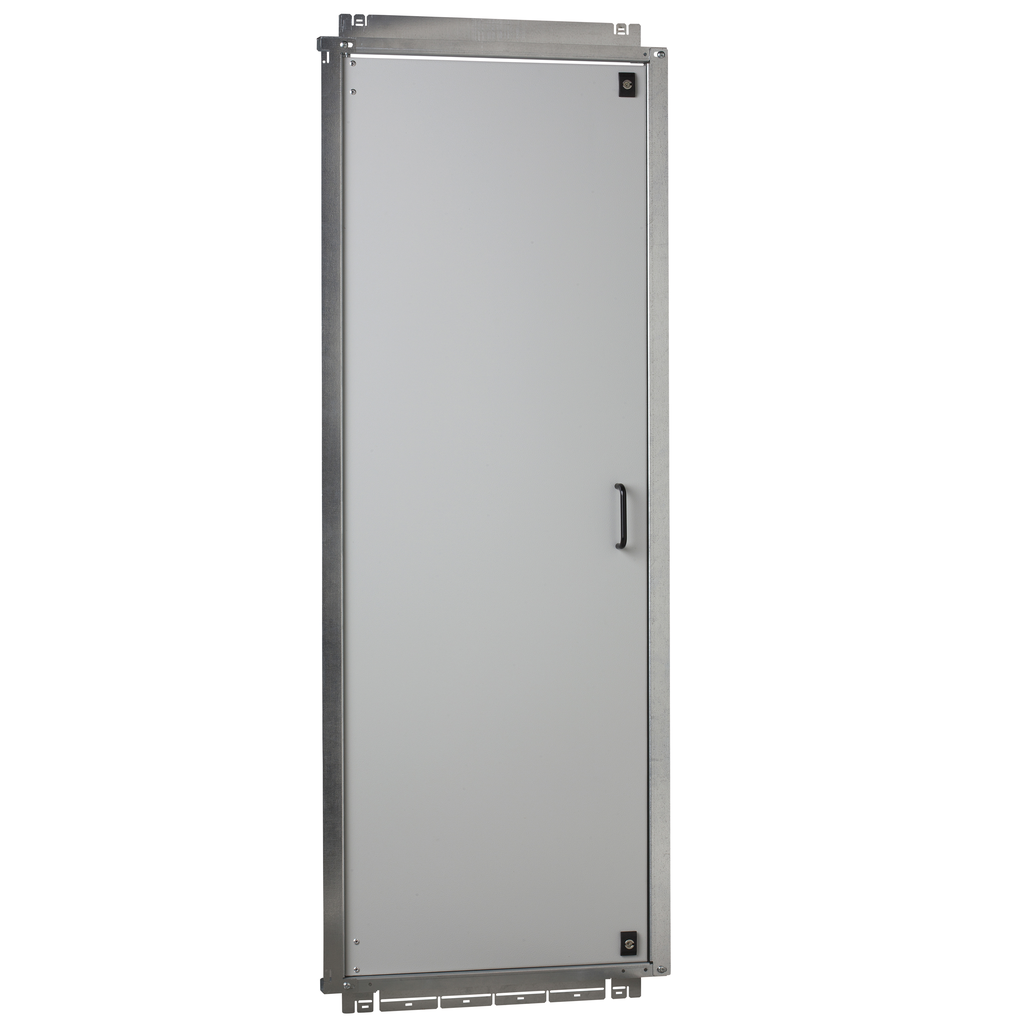

Inner door, PanelSeT SFN, Spacial SF, Spacial SM, for electrical enclosure H2000 W600mm
Spacial SF/SM plain internal door. 1999 x 600 mm. Multi-purpose application. Front mounting location. Maximum load 15 kg/m². 2 locks with 3 mm double bar insert system. Adjustable in depth every 25 mm. Sheet steel made. Grey RAL 7035. Door, handle, fixing elements incl.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Adjustment | adjustable in depth every 25 mm |
|---|---|
| Number Of Locks | 2 |
| Surface Finish | epoxy-polyester powder |
| Lock Type | lock 3 mm double bar |
| Door Opening Side | reversible |
| Depth | 19.5 mm |
| Width |
|
| Height |
|
| Material | sheet steel |
| Maximum Load | 15 kg/m² |
| Color | Gray RAL 7035) |
| Door Type | internal plain |
| Country of Origin | Spain |
| Enclosure Nominal Dimensions | - |
| Range Compatibility |
|
| Accessory / Separate Part Category | enclosure accessory |
| Product Or Component Type | door |
| Device Composition |
|
| Range | PanelSeT |
| Mounting Location | front |
| Quantity Per Set | set of 1 |
| Device Application | multi-purpose |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110923EN |
| Sustainable Offer Status | Green Premium product |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Warranty | 18 months |
Documents
- PanelSeT SFN/SM - Internal Door - Instruction Sheet - PanelSeT-SFN-SM-Internal-Door-Instruction-Sheet-7314530001-01 (pdf)
- Spec Sheet
- Universal Enclosures - Quick Selection Guide (2024 EN) - UEMKCAT034EN_(web) (pdf)
- Spacial, Thalassa, and ClimaSys Universal Enclosures US Catalog 2022 - SE_Enclosure_US_2022_V0 (pdf)
