NSYFCMX

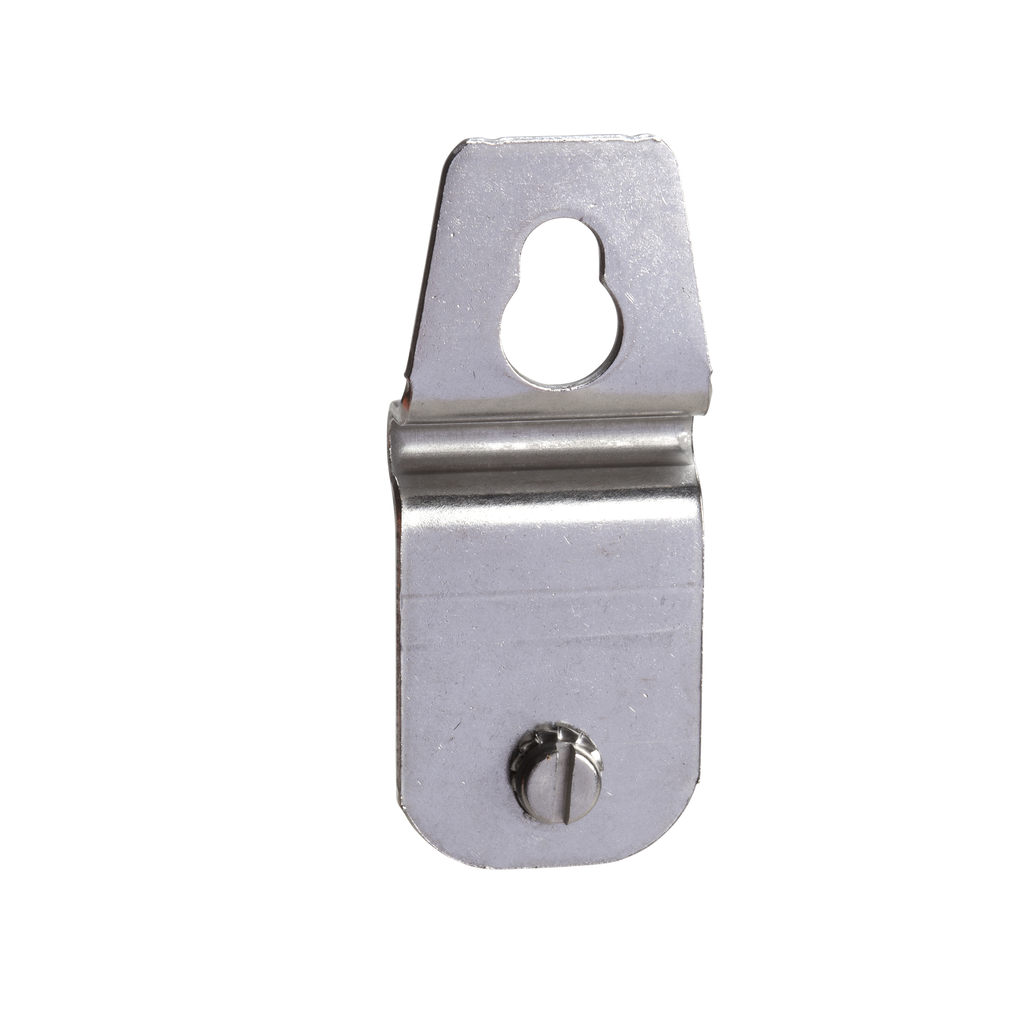

4 wall fixing brackets stainless 304 for PanelSeT SMX.
Specifications
| Country of Origin | Spain |
|---|---|
| Weight | 0.271 kg |
| Enclosure Nominal Dimensions | - |
| Range Compatibility | PanelSeT PanelSeT SMX |
| Accessory / Separate Part Category | fixing accessory |
| Product Or Component Type | wall fixing support |
| Device Composition | 4 lug |
| Range | PanelSeT |
| Mounting Location | rear of enclosure |
| Quantity Per Set | set of 1 |
| Device Application | multi-purpose |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2107011EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Warranty | 18 months |
| Net Weight | 0.271 kg |
| Depth | wall-enclosure separation : 9 mm |
| Fixing Mode | by screws - from the outside of enclosure |
| Width | 75 mm |
| Height | 20 mm |
| Material | stainless steel 304 |
