NSYEC661

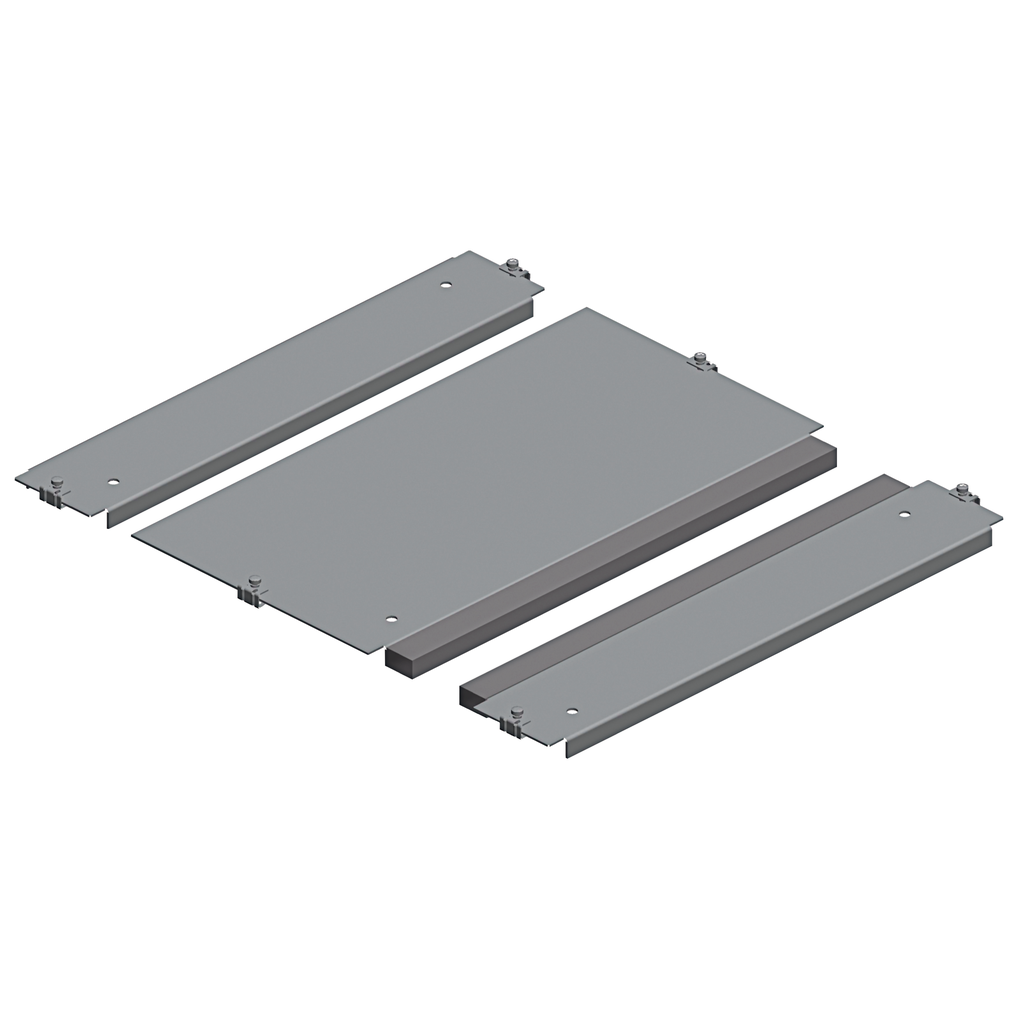

One entry cable gland plate, PanelSeT SFN, Spacial SF, for electrical enclosure W600 D600mm, fixed by clips
Spacial SF 1 entry cable gland plate. 600 x 600 mm. Multi-purpose, cable management accessory. Fixed by clips. Mounting on enclosure bottom. 1 cable entry. Galvanised steel. Thickness 1.5 mm. Plate and fixing elements incl. Self extinguishing polyurethane adhesive gasket with cross-section of 15 x 25 mm incl.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | France |
|---|---|
| Range Compatibility |
|
| Accessory / Separate Part Category | cable management accessory |
| Product Or Component Type | cable gland plate |
| Cable Entry | 1 entry |
| Device Composition |
|
| Range | PanelSeT |
| Mounting Location | enclosure bottom |
| Material | galvanised steel |
| Quantity Per Set | set of 1 |
| Cable Gland Type | standard |
| Device Application |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110923EN |
| Sustainable Offer Status | Green Premium product |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Warranty | 18 months |
| Thickness | 1.5 mm |
| Depth |
|
| Width |
|
| Height | 35 mm |
Documents
- Spec Sheet
- Universal Enclosures: Section 24 - Digest 179 (2024) - Universal-Enclosures-Digest-Catalog-0100CT2401-SEC-24 (pdf)
- Spacial, Thalassa, and ClimaSys Universal Enclosures US Catalog 2022 - SE_Enclosure_US_2022_V0 (pdf)
- Digest Catalog 28: Universal Enclosures - 0100CT1901_SEC-28 (pdf)
- Spacial SFM compartmentalized - Fixed MCC switchboards - UE15MK01EN_(web) (pdf)
- Spacial, Thalassa, and ClimaSys Universal Enclosures Catalog - 9993CT0901R08_16+Body+(Web) (pdf)
