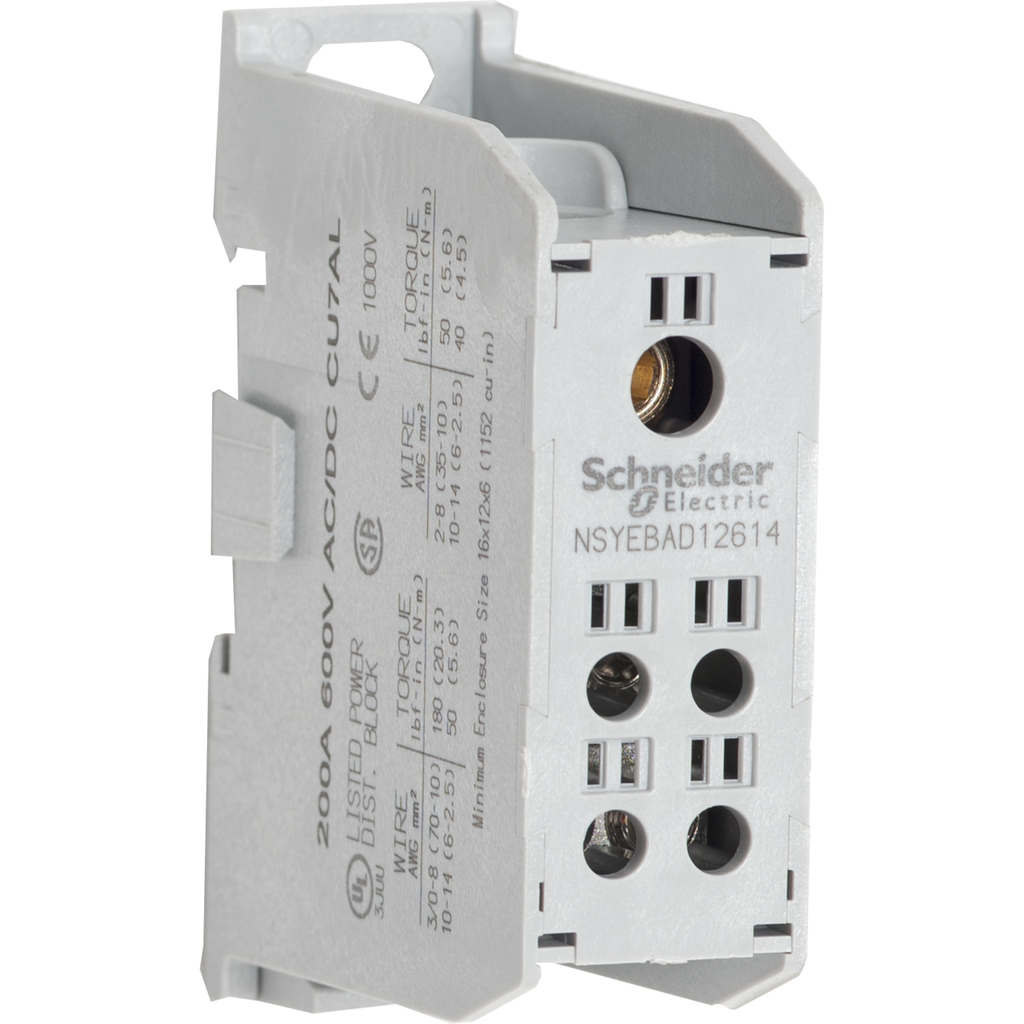

Power distribution block, Linergy, enclosed, 1 line, 4 load, 200A Cu, 600V, Cu lug, rail mount
NSYEB power distribution blocks are enclosed IEC versions of our NEMA 9080 power distribution blocks, which are finger safe. The terminals of these power terminal blocks are finger safe from the front according to IP20. They are one pole modular units with an interlocking dovetail feature that enables ganging of the blocks to create multipole configurations according to application requirements. This block has a Short-Circuit Current Ratings (SCCR) of up to 100 kA with fuses and circuit breakers. Refer to the catalog for details on this. The lugs in these blocks are available with either copper or aluminum. This block has a tin plated copper lug. The line side lug of this block is rated to 200A at 600 V when copper wire is used. The line side terminal will accept 14 AWG to 3/0 AWG copper wires. The four load side terminals will accept 14 AWG to 2 AWG copper wires. This block can be mounted on 35 mm DIN rail. This block is 3.61 inches tall, 1.21 inches wide and 2.71 inches deep. This block is UL Listed, CSA cerified and RoHS compliant.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Height | 3.61 in |
|---|---|
| Tightening Torque |
|
| Mounting Support | 35 mm DIN rail |
| Electrical Connection | tin plated copper lugs |
| Connections - Terminals |
|
| Wire Stripping Length |
|
| Short-Circuit Current | 100 kA |
| Number Of Cables |
|
| Material | thermoplastic: block |
| Width | 1.21 in |
| Depth | 2.71 in |
| Colour Of Enclosure | grey |
| Line Rated Current | 200-200 A copper |
| [Ue] Rated Operational Voltage | 600 V AC/DC |
| Number Of Terminals |
|
| Country of Origin | United States |
| Width | 1.21 in |
| Height | 3.61 in |
| Range Of Product | NSYEB |
| Product Or Component Type | Power Distribution Block |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Halogen Content Performance | Halogen free product |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -40-257 °F |
| Dielectric Strength | 1000 V 70 mm² IEC 60947-7-1 |
