NSYEBAD11614 - Power distribution block, Linergy, enclosed, 115A CU, 600V, 1 line side lug, 4 load side lug, AL lug

NSYEBAD11614

Power distribution block, Linergy, enclosed, 115A CU, 600V, 1 line side lug, 4 load side lug, AL lug

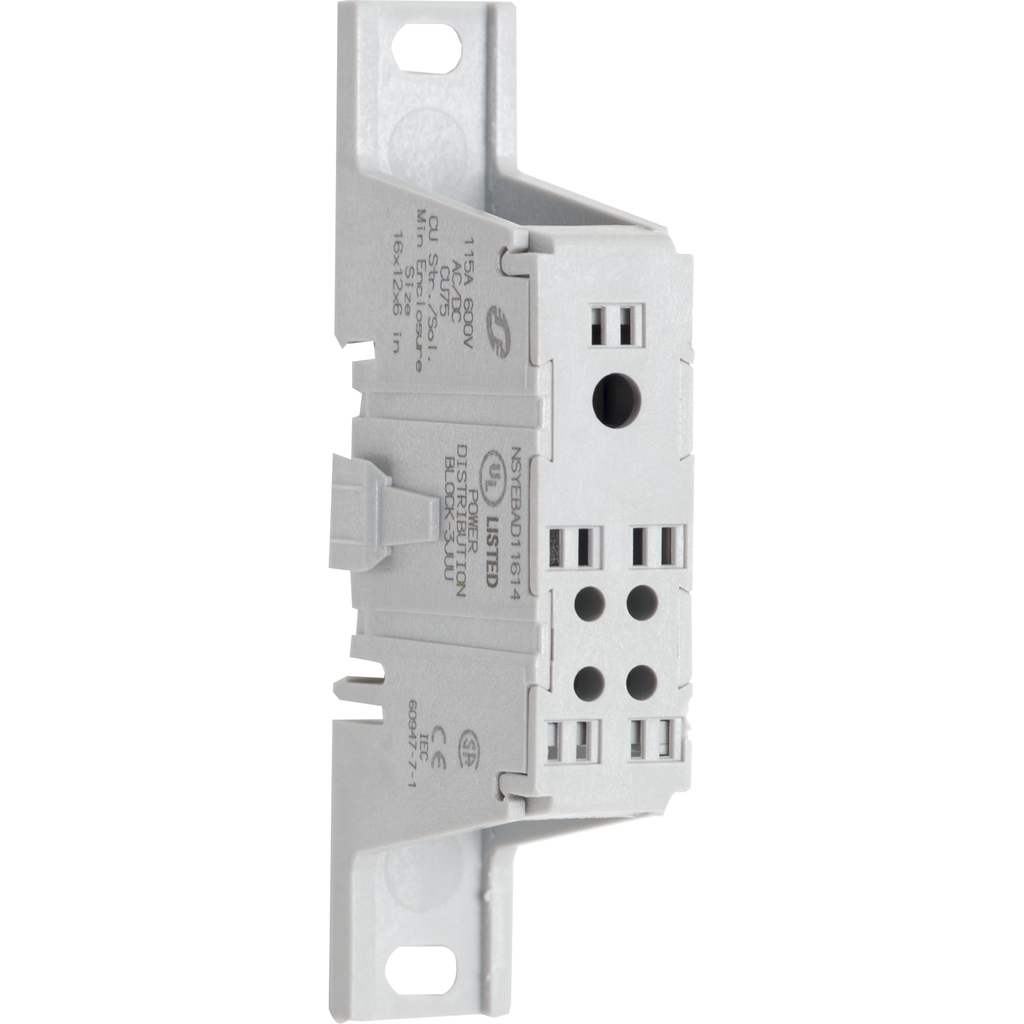

NSYEB power distribution blocks are enclosed IEC versions of our NEMA 9080 power distribution blocks, which are finger safe. The terminals of these power terminal blocks are finger safe from the front according to IP20. They are one pole modular units with an interlocking dovetail feature that enables ganging of the blocks to create multipole configurations according to application requirements. This block has a Short-Circuit Current Ratings (SCCR) of up to 65 kA with fuses and circuit breakers. Refer to the catalog for details on this. The lugs in these blocks are available with either copper or aluminum. This block has a tin plated aluminum lug. The line side lug of this block is rated to 115A at 600 V when copper wire is used. The line side terminal will accept 14 AWG to 2 AWG copper wires. The four load side terminals will accept 14 AWG to 10 AWG copper wires. This block can be mounted on 35 mm DIN rail or can be mounted directly to a panel. This block is 4.14 inches tall, 0.85 inches wide and 1.71 inches deep. This block is UL Listed, CSA cerified and RoHS compliant.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Rohs Exemption Information	Yes
Mercury Free	Yes
Toxic Heavy Metal Free	Yes
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs Directive	Compliant
Halogen Content Performance	Halogen free product
Height	4.14 in
Tightening Torque	line 50 lb.in, AWG 3...AWG 2, copper line 45 lb.in, AWG 6...AWG 4, copper line 40 lb.in, AWG 8, copper line 35 lb.in, AWG 14...AWG 10, copper load 35 lb.in, AWG 14...AWG 10, copper
Mounting Support	panel 35 mm DIN rail
Electrical Connection	tin plated aluminium lugs
Connections - Terminals	line lug 50 lbf.in AWG 3...AWG 2 copper line lug 45 lbf.in AWG 6...AWG 4 copper line lug 40 lbf.in AWG 8 copper line lug 35 lbf.in AWG 14...AWG 10 copper load lug 35 lbf.in AWG 14...AWG 10 copper
Fixing Mode	by screws 10
Wire Stripping Length	line: 0.63 in load: 0.44 in for top connection load: 0.69 in for bottom connection
Short-Circuit Current	65 kA
Number Of Cables	line 1 , AWG 14...AWG 2, copper load 4 , AWG 14...AWG 10, copper
Material	thermoplastic: block
Width	0.85 in
Depth	1.71 in
Colour Of Enclosure	grey
Line Rated Current	115-115 A copper
[Ue] Rated Operational Voltage	600 V AC/DC
Number Of Terminals	1 line 4 load
Country of Origin	United States
Width	0.85 in
Height	4.14 in
Range Of Product	NSYEB
Product Or Component Type	Power Distribution Block
Product Certifications	UL listed file E323110 CCN QPQS CE CSA file 70361 class 6228 01
Ambient Air Temperature For Operation	-40-257 °F
Dielectric Strength	1000 V 35 mm² IEC 60947-7-1
