NSYDCD248

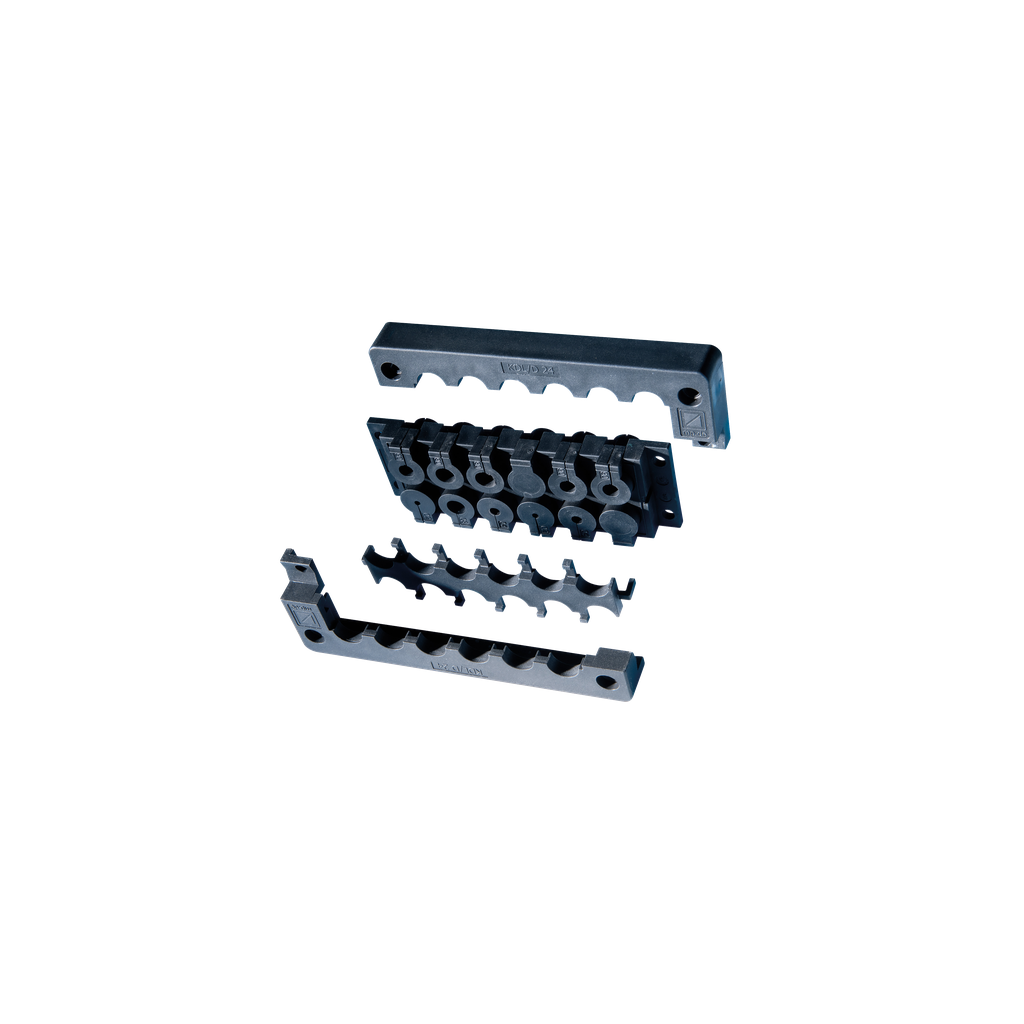

Cable entry system type Multi-CS dimensions 112 x 36 mm and 8 openings
Specifications
| Country of Origin | France |
|---|---|
| Weight | 0.21 kg |
| Accessory / Separate Part Category | cable management accessory |
| Product Or Component Type | cable entry |
| Cable Entry |
|
| Range | PanelSeT |
| Mounting Location | enclosure bottom |
| Material | polypropylene |
| Quantity Per Set | set of 1 |
| Device Application | multi-purpose |
| Ip Degree Of Protection | IP65 IEC 60529 |
| Ambient Air Temperature For Operation | -30-100 °C |
| Resistance To Chemical Agents |
|
| Flame Retardance | V0 conforming to UL 94 |
| Net Weight | 0.21 kg |
| Depth | 15 mm |
| Cut-Out Dimensions | 112 x 36 mm |
| Width | 58 mm |
| Height | 148 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP100104EN |
| Sustainable Offer Status | Green Premium product |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
