NSYDBN1010

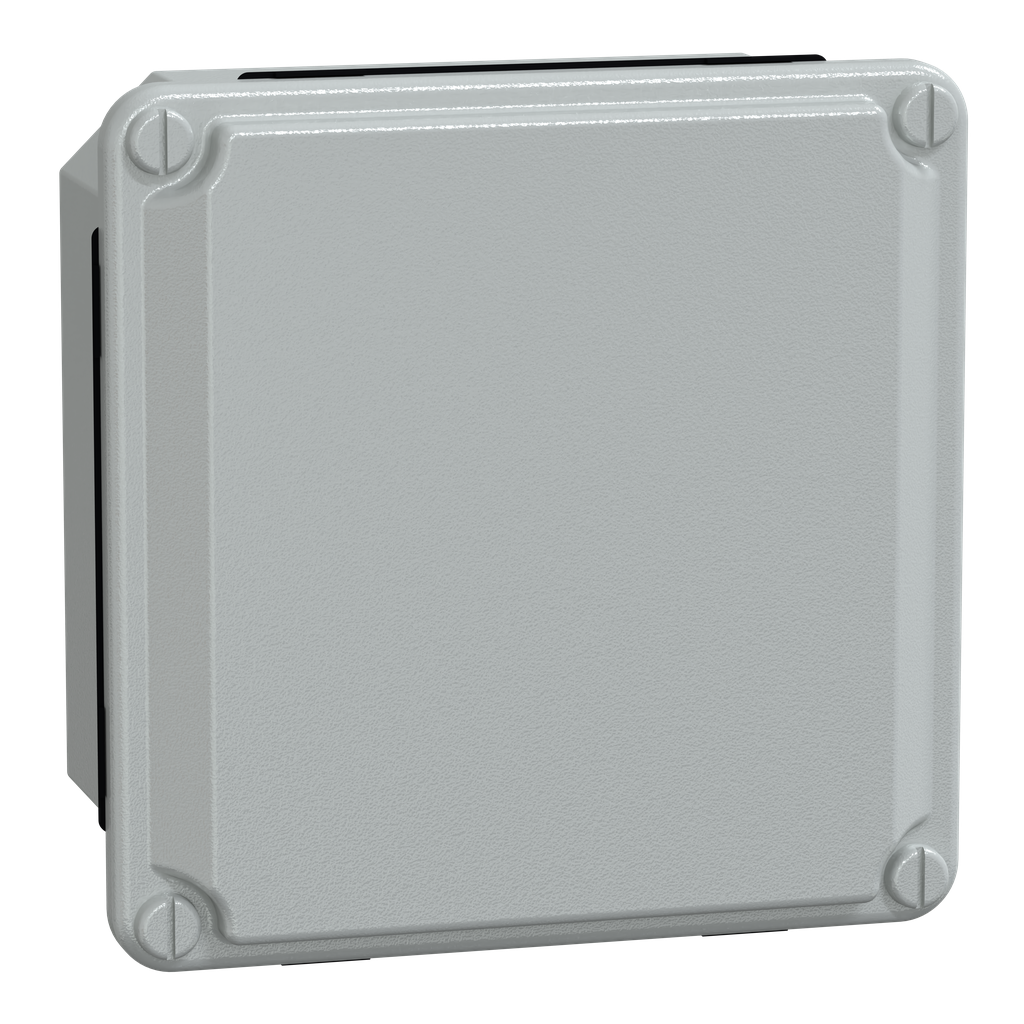

Metal industrial box - low plain cover - H105xW105xD49 - IP55 - grey RAL 7035
Specifications
| Ik Degree Of Protection | IK07 conforming to IEC 62262 |
|---|---|
| Standards | IEC 62208 |
| Ip Degree Of Protection | IP55 IEC 60529 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP121023EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Surface Finish | epoxy-polyester powder |
| Device Composition |
|
| Enclosure Nominal Height | 105 mm |
| Net Weight | 0.273 kg |
| Cover Fixing | screw |
| Enclosure Mounting | wall mounted |
| Material | steel |
| Enclosure Nominal Depth | 49 mm |
| Enclosure Nominal Width | 105 mm |
| Country of Origin | India |
| Width | 105 mm |
| Height | 105 mm |
| Weight | 0.273 kg |
| Range Of Product | PanelSeT SDB |
| Product Or Component Type | junction box |
| Enclosure Type | empty enclosure |
| Type Of Front Cover | low plain cover |
| Color | Light gray RAL 7035) |
| Device Application | multi-purpose |
