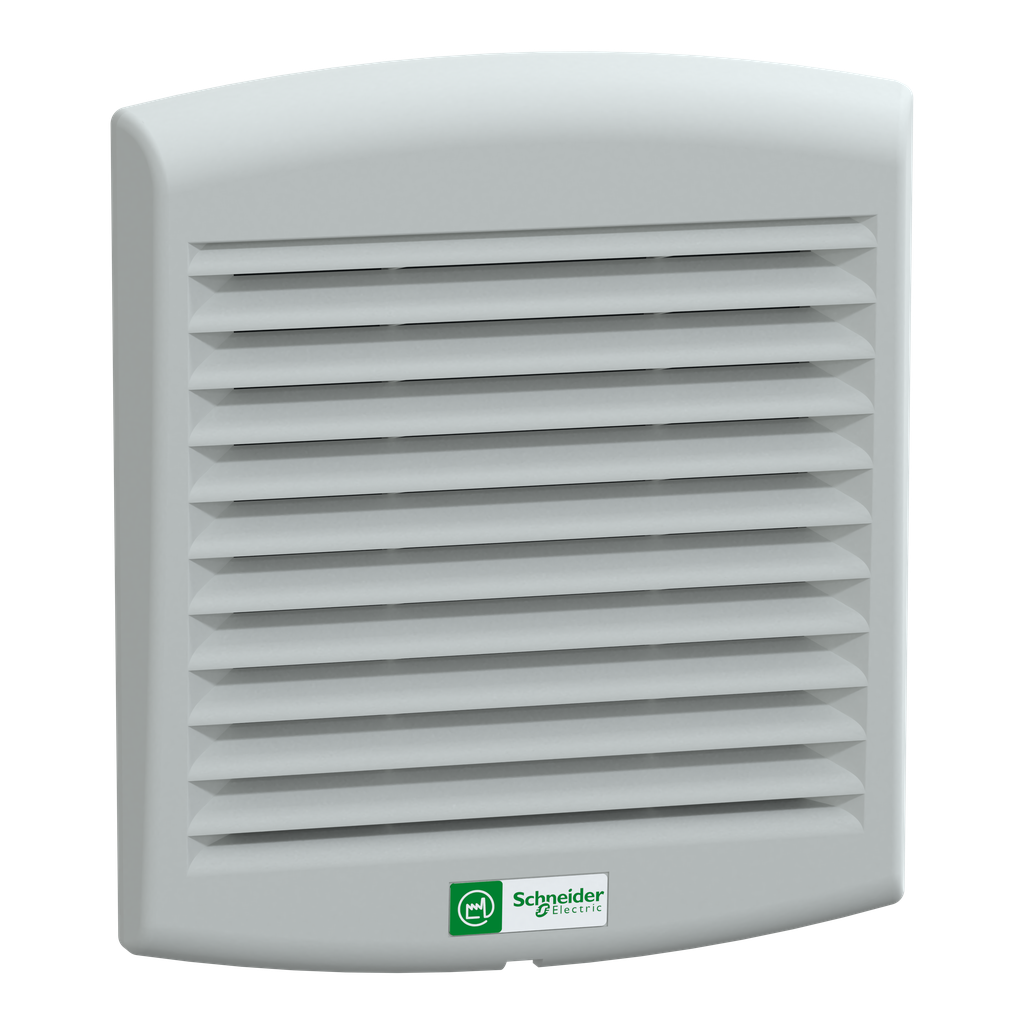

NSYCVF85M230PF - ClimaSys forced vent. IP54, 85m3/h, 230V, with outlet grille and filter G2

NSYCVF85M230PF

ClimaSys forced vent. IP54, 85m3/h, 230V, with outlet grille and filter G2

ClimaSys CV Axial motor ventilator. 230V 50Hz or 60Hz. 17 W 50 Hz, 15 W 60 Hz. Free flow rate with standard filter of 85 m3/h at 50 Hz and 98 m3/h at 60 Hz. 170 x 150 x 62 mm. Cut-out dimensions of 125 x 125 mm. Outlet grille injected thermoplastic (ASA PC), Grey RAL 7035. Connections terminals by cable. 2 protective grille on the front and rear surfaces. Protection IP54.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Connections - Terminals	Faston connector
Ambient Air Temperature For Operation	-20-60 °C
Power Range	15 W 60 Hz 17 W 50 Hz
Condition Of Use	flow rates depends on the work point, see ProClima software surrounding environment must be relatively clean filter must be cleaned and replaced regularly overfrequent filter replacement should be avoided outside temperature must be 5 °C lower than inside temperature
Maximum Pressure	50 Pa flow rate 0 m³/h
Device Composition	1 axial motor 2 protective grille on the front and rear surfaces 1 filter front of axial motor 1 outlet grille front 1 cut-out template 1 power cord
Net Weight	0.78 kg
Depth	external : 62 mm
Cut-Out Dimensions	125 x 125 mm
Ambient Air Temperature For Storage	-40-70 °C
Width	external: 150 mm
Height	external: 170 mm
Material	outlet grille injected thermoplastic (ASA PC)
Ip Degree Of Protection	IP54
Color	outlet grille Gray RAL 7035)
Line Rated Current	0.121-0.121 A 50 Hz 0.097-0.097 A 60 Hz
Bearing Type	ball
Noise Level	46-49 dB
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP110717EN
Sustainable Offer Status	Green Premium product
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	ENVEOLI1107017EN
Eu Rohs Directive	Compliant with Exemptions
Country of Origin	France
Weight	0.78 kg
[Us] Rated Supply Voltage	175...253 V
Air Flow	free flow rate with standard filter: 85 m3/h at 50 Hz free flow rate with standard filter: 98 m3/h at 60 Hz
Type Of Ventilation Filter	standard
Product Or Component Type	fan
Product Name	ClimaSys CV
Range	ClimaSys
Input Voltage	230 V 50/60 Hz
