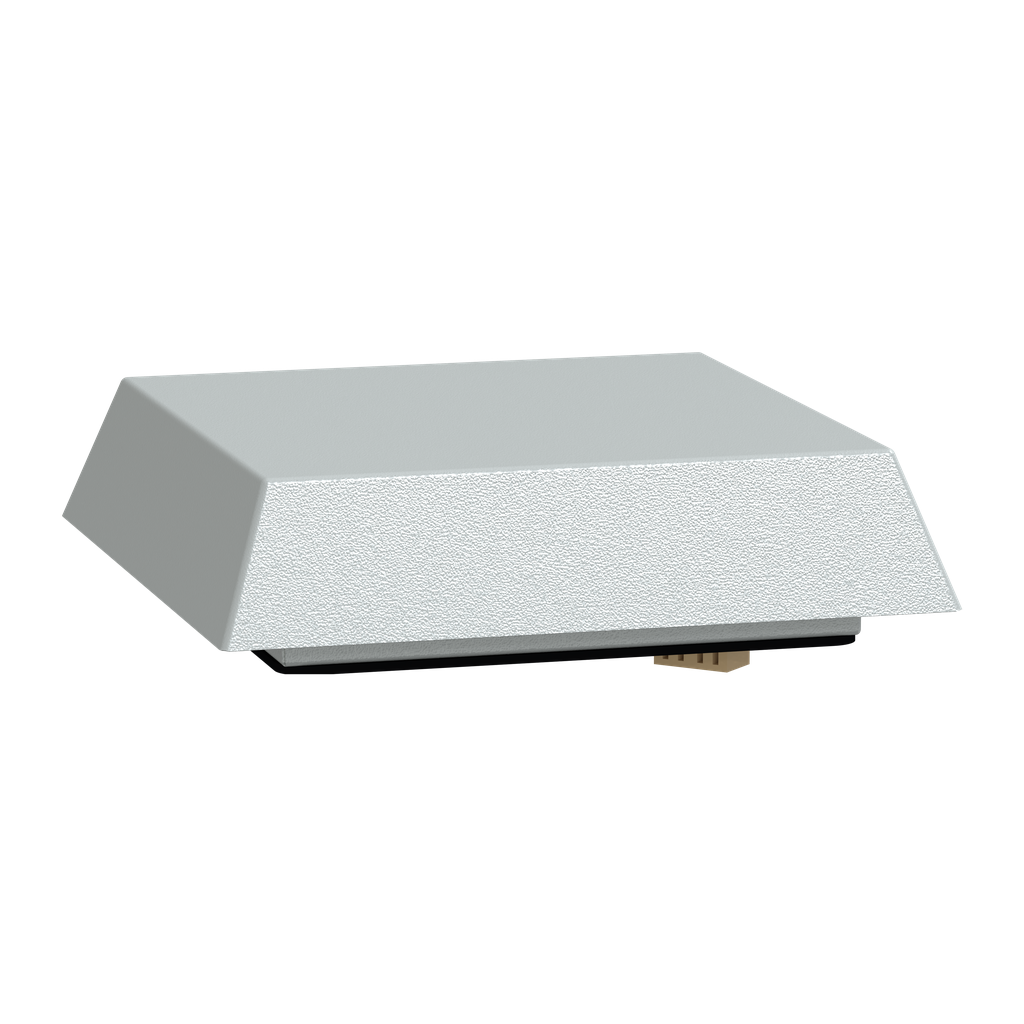

NSYCVF575M230MF - ClimaSys forced vent. roof, 575m3/h, 230V, with roof outlet grille and filter G2, grey (RAL 7035)

NSYCVF575M230MF

ClimaSys forced vent. roof, 575m3/h, 230V, with roof outlet grille and filter G2, grey (RAL 7035)

ClimaSys CV forced ventilator. Top hood with fan. 230 V 50Hz or 60 Hz. 85W 50 Hz, 85W 60 Hz. Free flow rate with standard filter of 573 m3/h at 50 Hz and 350 m3/h at 60 Hz. 96 x 340 x 340 mm. Cut-out dimensions of 228 x 228 mm. Made in Hood steel Grey RAL 7035. Protection IP54.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Country of Origin	Italy
Air Flow	with outlet grille cut-out 291 x 291 mm: 350 m3/h free flow rate: 575 m3/h at 50 Hz
Range Compatibility	Prisma Prisma P Prisma Prisma PH Prisma Prisma iPM M Acti 9 enclosure
Type Of Ventilation Filter	G2
Product Or Component Type	top hood with fan
Product Name	ClimaSys CV
Range	ClimaSys
Input Voltage	230 V 50/60 Hz
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP110717EN
Sustainable Offer Status	Green Premium product
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	ENVEOLI1107017EN
Eu Rohs Directive	Compliant with Exemptions
Power Range	85 W
Device Composition	1 hood top of enclosure 1 fan 1 fixing elements
Depth	external : 340 mm
Cut-Out Dimensions	228 x 228 mm
Width	external: 340 mm
Height	external: 96 mm
Material	hood steel
Ip Degree Of Protection	IP54
Color	hood Gray RAL 7035)
Noise Level	64-64 dB
Warranty	18 months
