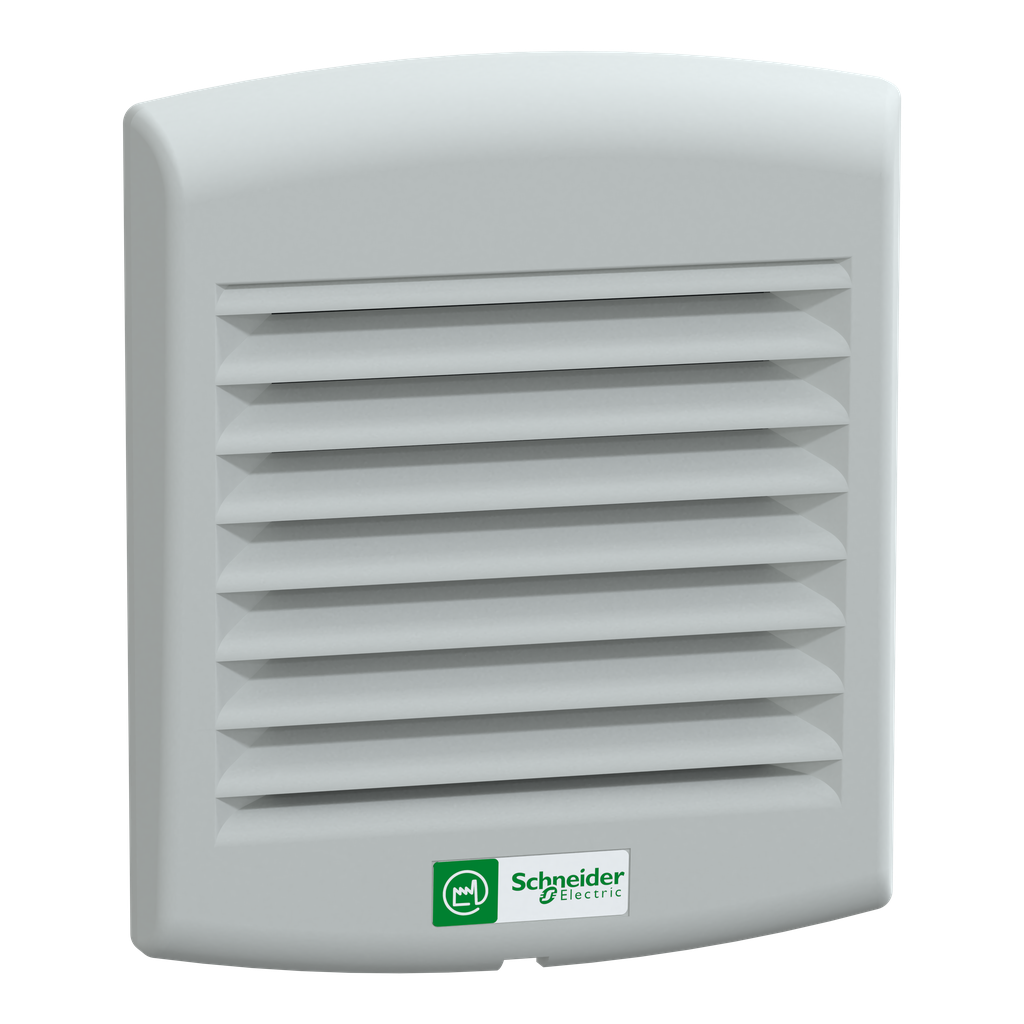

NSYCVF38M230PF - ClimaSys forced vent. IP54, 38m3/h, 230V, with outlet grille and filter G2

NSYCVF38M230PF

ClimaSys forced vent. IP54, 38m3/h, 230V, with outlet grille and filter G2

ClimaSys CV Axial motor ventilator. 230V 50Hz or 60Hz. 4.5 W 50 Hz, 4.8 W 60 Hz. Free flow rate with standard filter of 38 m3/h at 50 Hz and 39 m3/h at 60 Hz. 137 x 117 x 49 mm. Cut-out dimensions of 92 x 92 mm. Outlet grille injected thermoplastic (ASA PC), Grey RAL 7035. Connections terminals by cable. 2 protective grille on the front and rear surfaces. Protection IP54.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Connections - Terminals	cable
Ambient Air Temperature For Operation	-10-70 °C
Power Range	4.5 W 50 Hz 4.8 W 60 Hz
Condition Of Use	outside temperature must be 5 °C lower than inside temperature flow rates depends on the work point, see ProClima software surrounding environment must be relatively clean filter must be cleaned and replaced regularly overfrequent filter replacement should be avoided
Maximum Pressure	29 Pa flow rate 0 m³/h
Device Composition	1 axial motor 2 protective grille on the front and rear surfaces 1 filter front of axial motor 1 outlet grille front 1 cut-out template
Net Weight	0.22 kg
Depth	external : 49 mm
Cut-Out Dimensions	92 x 92 mm
Ambient Air Temperature For Storage	-40-70 °C
Width	external: 117 mm
Height	external: 137 mm
Material	outlet grille injected thermoplastic (ASA PC)
Ip Degree Of Protection	IP54
Color	outlet grille Gray RAL 7035)
Line Rated Current	0.16-0.16 A 50 Hz 0.17-0.17 A 60 Hz
Bearing Type	ball
Noise Level	40-41 dB
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP110717EN
Sustainable Offer Status	Green Premium product
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	ENVEOLI1107017EN
Eu Rohs Directive	Compliant with Exemptions
Country of Origin	France
Weight	0.22 kg
[Us] Rated Supply Voltage	150...250 V
Air Flow	free flow rate with standard filter: 38 m3/h at 50 Hz free flow rate with standard filter: 39 m3/h at 60 Hz
Type Of Ventilation Filter	standard
Product Or Component Type	fan
Product Name	ClimaSys CV
Range	ClimaSys
Input Voltage	230 V 50/60 Hz
Warranty	18 months
