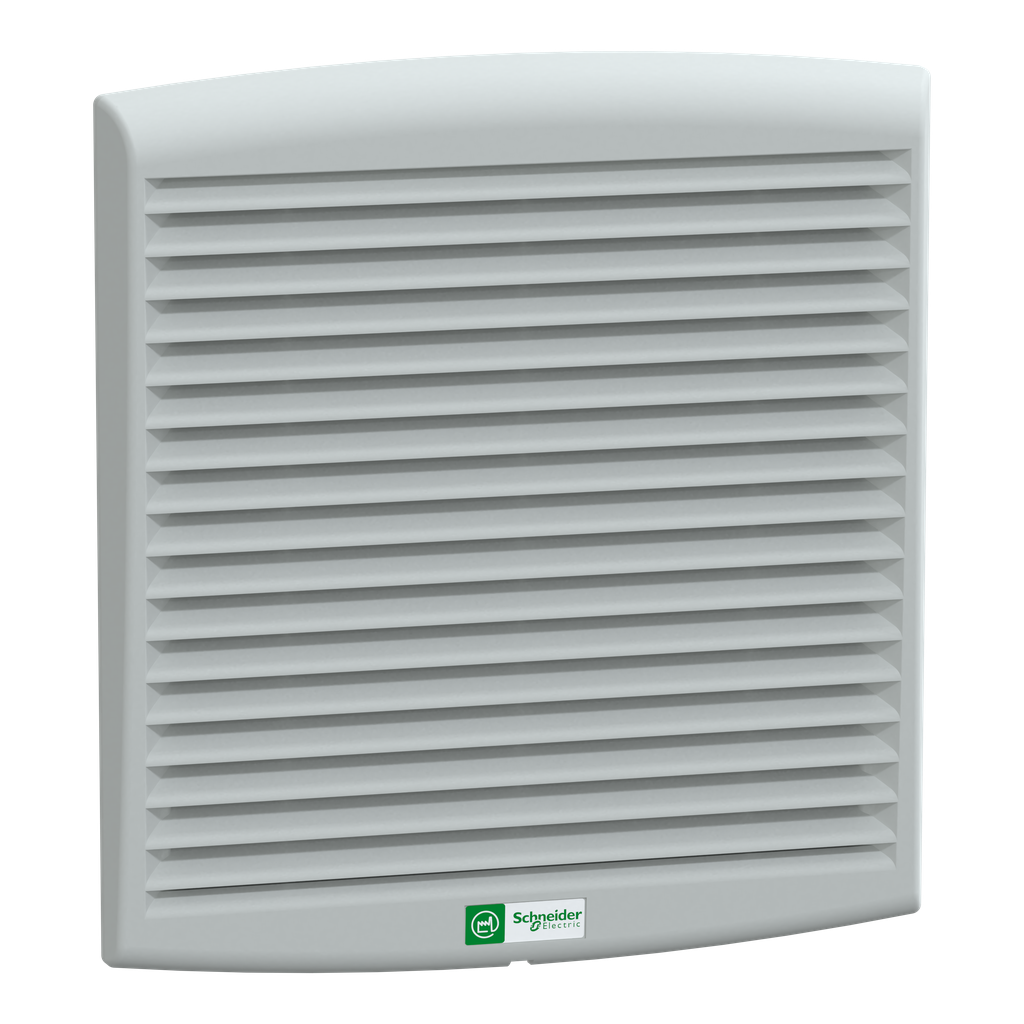

NSYCVF300M115PF - ClimaSys forced vent. IP54, 300m3/h, 115V, with outlet grille and filter G2

NSYCVF300M115PF

ClimaSys forced vent. IP54, 300m3/h, 115V, with outlet grille and filter G2

ClimaSys CV Axial motor ventilator. 115V 50Hz or 60Hz. 36 W 50 Hz, 36 W 60 Hz. Free flow rate with standard filter of 300 m3/h at 50 Hz and 300 m3/h at 60 Hz. 268 x 248 x 104 mm. Cut-out dimensions of 223 x 223 mm. Outlet grille injected thermoplastic (ASA PC), Grey RAL 7035. Connections terminals by faston connector. 2 protective grille on the front and rear surfaces. Protection IP54.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP110717EN
Sustainable Offer Status	Green Premium product
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	ENVEOLI1107017EN
Eu Rohs Directive	Compliant with Exemptions
Connections - Terminals	Faston connector
Ambient Air Temperature For Operation	-10-70 °C
Power Range	36 W 50 Hz 36 W 60 Hz
Condition Of Use	flow rates depends on the work point, see ProClima software surrounding environment must be relatively clean outside temperature must be 5 °C lower than inside temperature filter must be cleaned and replaced regularly overfrequent filter replacement should be avoided
Maximum Pressure	158 Pa flow rate 0 m³/h
Device Composition	1 axial motor 2 protective grille on the front and rear surfaces 1 filter front of axial motor 1 outlet grille front 1 cut-out template 1 power cord
Net Weight	1.3 kg
Depth	external : 116 mm
Cut-Out Dimensions	223 x 223 mm
Ambient Air Temperature For Storage	-40-70 °C
Width	external: 248 mm
Height	external: 268 mm
Material	outlet grille injected thermoplastic (ASA PC)
Ip Degree Of Protection	IP54
Color	outlet grille Gray RAL 7035)
Line Rated Current	0.35-0.35 A 50 Hz 0.32-0.32 A 60 Hz
Bearing Type	ball
Noise Level	55-56 dB
Lead Time	Usually Ships within 4 Weeks
Country of Origin	France
Weight	1.3 kg
[Us] Rated Supply Voltage	75...126 V
Air Flow	free flow rate with standard filter: 300 m3/h at 50 Hz free flow rate with standard filter: 350 m3/h at 60 Hz
Type Of Ventilation Filter	standard
Product Or Component Type	fan
Product Name	ClimaSys CV
Range	ClimaSys
Input Voltage	115 V 50/60 Hz
