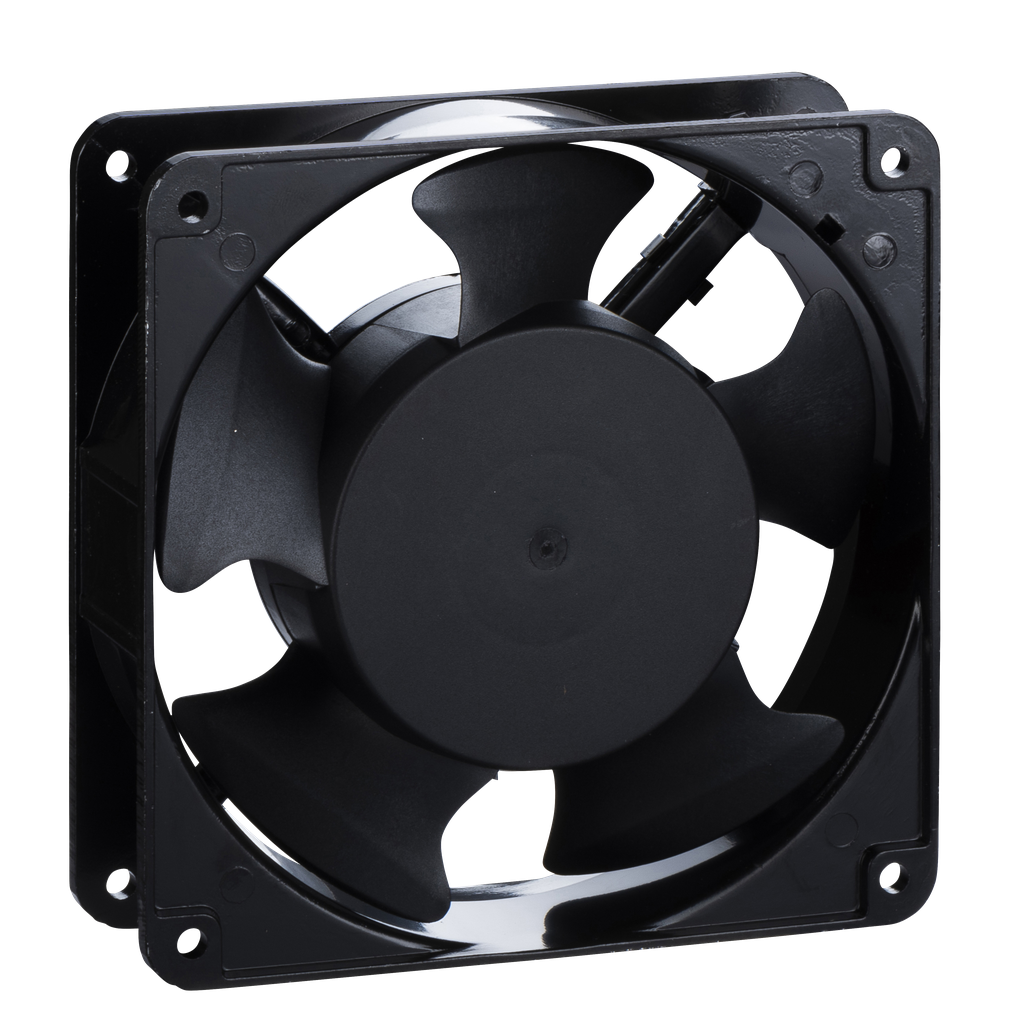

NSYCVF156M230
Motor ventilator 156 m3/h 230V
ClimaSys CV Axial motor ventilator. 230V 50Hz or 60Hz. 15W 50 Hz, 17W 60 Hz. Free flow rate of 156 m3/h. 120 x 120 x 38 mm. Cut-out dimensions of diameter 114 mm.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Power Range |
|
|---|---|
| Device Composition | 1 axial motor |
| Depth | external : 38 mm |
| Cut-Out Dimensions | Ø 114 mm |
| Width | external: 120 mm |
| Height | external: 120 mm |
| Noise Level | 42-42 dB |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110717EN |
| Sustainable Offer Status | Green Premium product |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1107017EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Country of Origin | Spain |
| Air Flow | free flow rate: 156 m3/h at 50 Hz |
| Product Or Component Type | fan motor |
| Product Name | ClimaSys CV |
| Range | ClimaSys |
| Input Voltage | 230 V 50/60 Hz |
| Warranty | 18 months |
