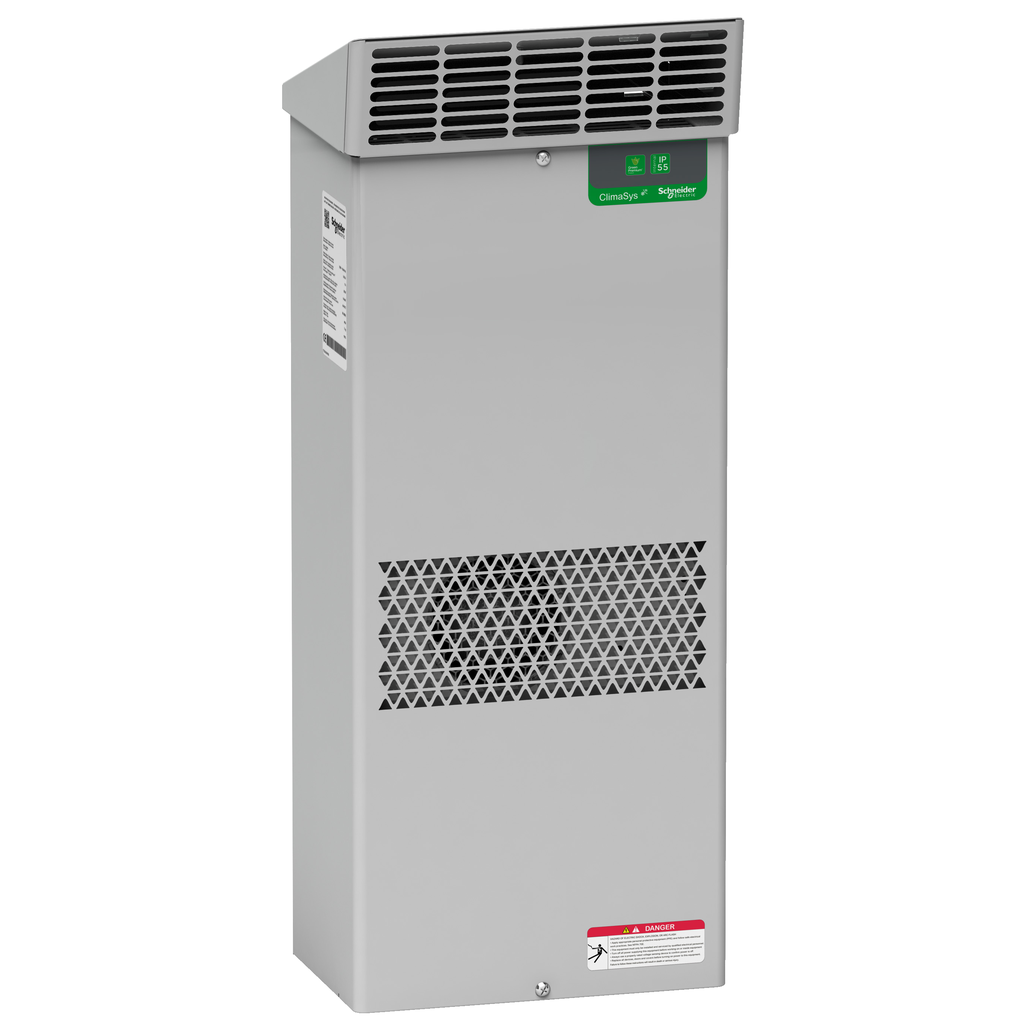

NSYCUHD800 - ClimaSys outdoor cooling unit side of enclosure - 820W at 230 V

NSYCUHD800

Add to Quote Catalogue

Product Certifications	CE
Standards	EN 378 EN 60335-1 EN/ISO 12100 EN 60335-2-40 EN 60204-1
Directives	2006/95/EC - low voltage directive 2004/108/EC - electromagnetic compatibility 2006/42/EC - machinery
Ip Degree Of Protection	IP55 IEC 60529 on the internal circuit) IP34 IEC 60529 on the external circuit)
Pressure	25 bar
Air Flow	internal circuit 330 m3/h 50/60 Hz external circuit 570 m3/h 50/60 Hz
Inrush Current	10.8 A
Type Of Ventilation Filter	optional external circuit filter
Ambient Air Temperature For Operation	inside the enclosure 20-46 °C maximum 55-55 °C outside the enclosure -20-55 °C 50/60 Hz
Energy Efficiency Ratio	1.8
Material	steel
Net Weight	27 kg
Depth	215 mm
Control Type	mechanical
Power Consumption In W	440 W 50/60 Hz, L35-L35 490 W 50/60 Hz, L35-L50
Noise Level	65 dB EN/ISO 3746
Cooling Gas Type	R134a 0.23 kg)
Width	348 mm
Height	783 mm
Temperature Setting Range	20-55 °C
Line Rated Current	2.6 A
Color	Gray RAL 7035)
Country of Origin	Italy
Weight	27 kg
Product Destination	for enclosure
Cooling Power	820 W 50/60 Hz L35-L35 680 W 50/60 Hz L35-L50
Product Or Component Type	cooling unit
Product Name	CU
Range	ClimaSys
Mounting Location	side
Mounting Mode	by screws
Kw Rating	820 W
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2106024EN
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
Reach Free Of Svhc	Yes
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Circularity Profile	ENVEOLI2106024EN
Eu Rohs Directive	Compliant
