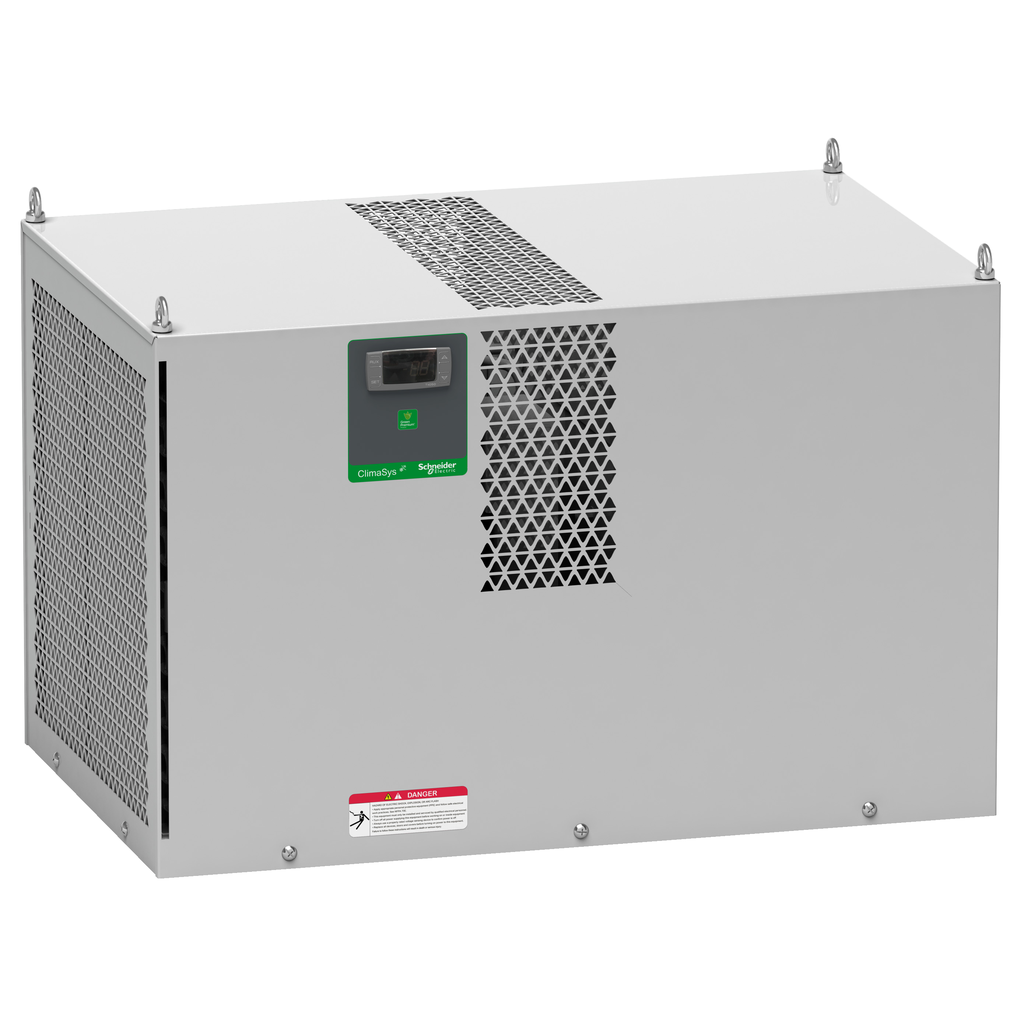

NSYCU4K3P4RUL - ClimaSys standard cooling unit roof of enclosure - 3850W at 400 V

NSYCU4K3P4RUL

Add to Quote Catalogue

Country of Origin	Italy
Weight	86 kg
Product Destination	for enclosure
Cooling Power	13140 Btu/h 60 Hz L35-L35 9790 Btu/h 60 Hz L35-L50
Product Or Component Type	cooling unit
Product Name	CU
Range	ClimaSys
Mounting Location	roof of enclosure
Mounting Mode	by screws
Kw Rating	4300 W
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2106024EN
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Circularity Profile	ENVEOLI2106024EN
Eu Rohs Directive	Compliant
Pressure	25 bar
Air Flow	external circuit 3410 m3/h 60 Hz internal circuit 1450 m3/h 60 Hz
Inrush Current	17 A
Type Of Ventilation Filter	optional external circuit filter
Ambient Air Temperature For Operation	outside the enclosure 20-45 °C maximum 45-45 °C inside the enclosure 20-45 °C
Energy Efficiency Ratio	2.2
Material	steel
Net Weight	86 kg
Depth	492 mm
Control Type	electronic controller
Power Consumption In W	1790 W 60 Hz, L35-L35 2010 W 60 Hz, L35-L50
Noise Level	75 dB
Cooling Gas Type	R134a 1.6 kg)
Width	797 mm
Height	496 mm
Temperature Setting Range	20-45 °C
Line Rated Current	3.6 A
Color	Gray RAL 7035)
Product Certifications	UL
Standards	DIN 3168
Ip Degree Of Protection	IP34 IEC 60529 on the external circuit) IP54 IEC 60529 on the internal circuit)
