NSYCU400UL

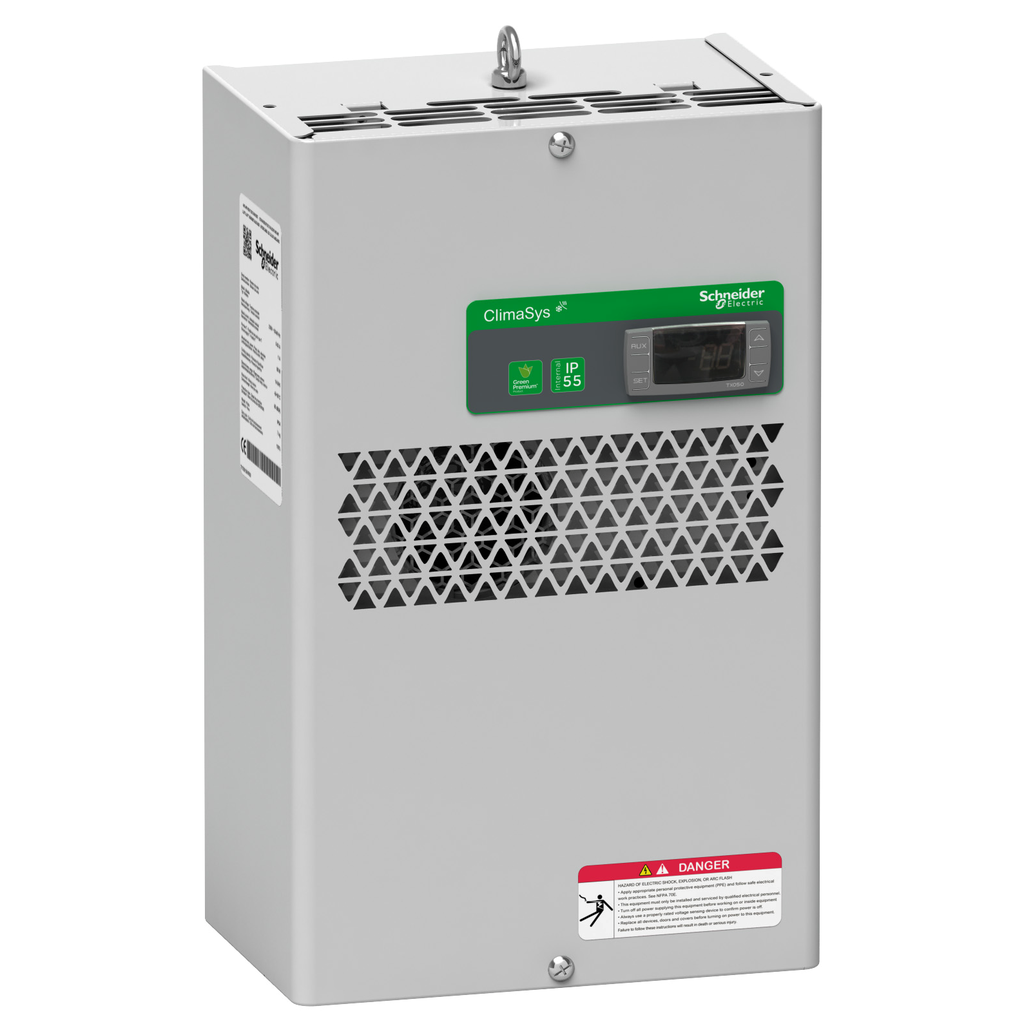

ClimaSys standard cooling unit side of enclosure - 380W at 230 V
Specifications
| Product Destination | for enclosure |
|---|---|
| Cooling Power |
|
| Product Or Component Type | cooling unit |
| Product Name | CU |
| Type Of Installation | indoor |
| Range | ClimaSys |
| Mounting Location | side |
| Mounting Mode | by screws |
| Pressure | 26 bar |
| Air Flow |
|
| Inrush Current | 6 A |
| Protection Type |
|
| Type Of Ventilation Filter | optional external circuit filter |
| Ambient Air Temperature For Operation |
|
| Energy Efficiency Ratio | 1.4 |
| Material | steel |
| Net Weight | 17 kg |
| Depth | 180 mm |
| Control Type | electronic controller |
| Power Consumption In W |
|
| Noise Level | 60 dB |
| Cooling Gas Type | R134a 0.16 kg) |
| Width | 285 mm |
| Height | 460 mm |
| Temperature Setting Range | 20-50 °C |
| Line Rated Current | 1.6 A |
| Color | Gray RAL 7035) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2106024EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | ENVEOLI2106024EN |
| Eu Rohs Directive | Compliant |
| Product Certifications | UL |
| Standards | DIN 3168 |
| Ip Degree Of Protection |
|
