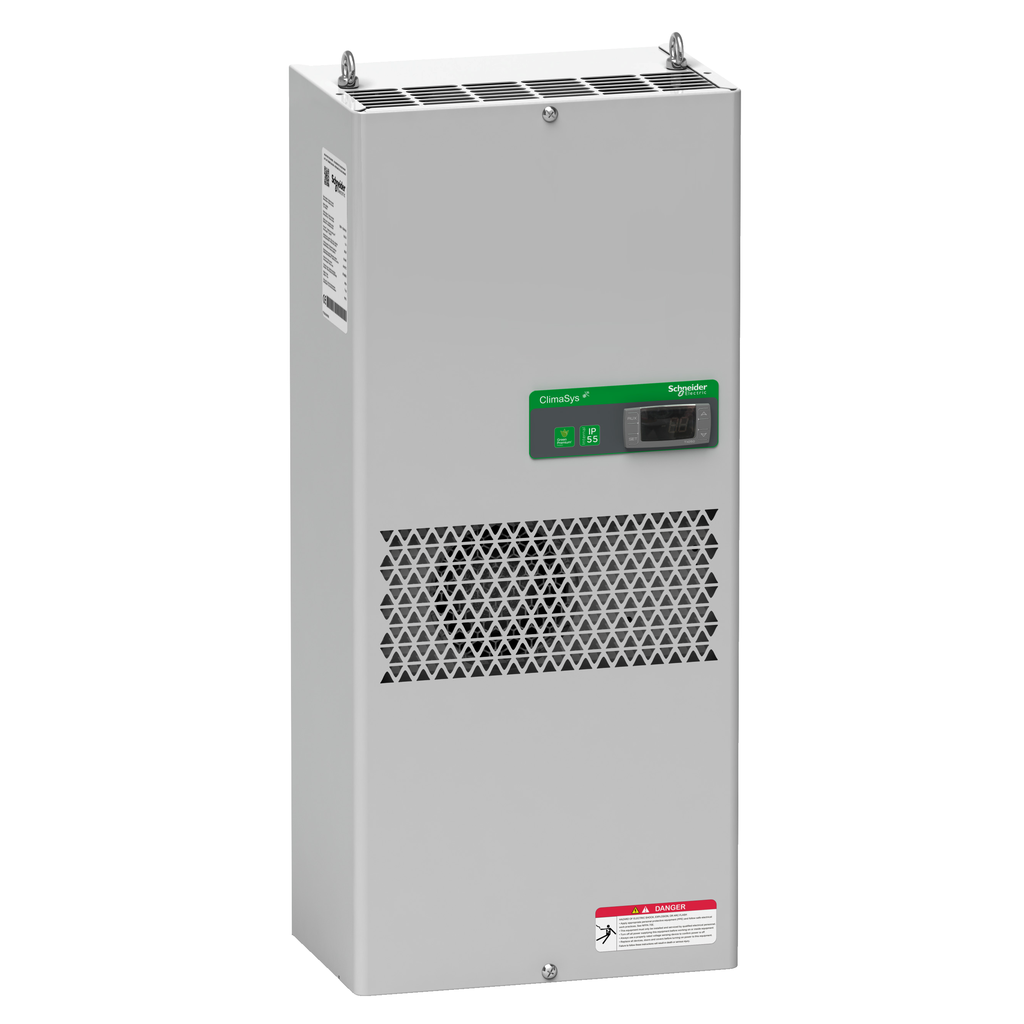

NSYCU1K2P4UL - ClimaSys standard cooling unit side of enclosure - 1000W at 400...440 V

NSYCU1K2P4UL

Add to Quote Catalogue

Product Certifications	UL
Standards	DIN 3168
Ip Degree Of Protection	IP55 IEC 60529 on the internal circuit) IP34 IEC 60529 on the external circuit)
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2106024EN
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Circularity Profile	ENVEOLI2106024EN
Eu Rohs Directive	Compliant
Pressure	25 bar
Air Flow	internal circuit 330 m3/h 50/60 Hz external circuit 570 m3/h 50/60 Hz
Inrush Current	8 A
Type Of Ventilation Filter	optional external circuit filter
Ambient Air Temperature For Operation	maximum 50-50 °C inside the enclosure 20-46 °C outside the enclosure 20-50 °C
Energy Efficiency Ratio	1.7
Material	steel
Net Weight	29 kg
Depth	nominal : 215 mm total : 273 mm
Control Type	electronic controller
Power Consumption In W	590 W 50/60 Hz, L35-L35 670 W 50/60 Hz, L35-L50
Noise Level	65 dB
Cooling Gas Type	R134a 0.23 kg)
Width	348 mm
Height	783 mm
Temperature Setting Range	20-50 °C
Line Rated Current	2 A
Color	Gray RAL 7035)
Country of Origin	Italy
Weight	29 kg
Product Destination	for enclosure
Cooling Power	3410 Btu/h 50/60 Hz L35-L35 2700 Btu/h 50/60 Hz L35-L50
Product Or Component Type	cooling unit
Product Name	CU
Range	ClimaSys
Mounting Location	side
Mounting Mode	by screws
Kw Rating	1200 W
